BUTTERFLY VALVE MANUFACTURERS IN INDIA

Butterfly Valve is a valve which can be used for isolating or regulating flow. The closing mechanism takes the form of a disc. Operation is similar to that of a Ball Valve, which allows for quick shut off. Butterfly Valves are generally favored because they are lower in cost to other valve designs as well as being lighter in weight, meaning less support is required.

Citizen Metal Wafer Type Butterfly Valve have been developed with extensive application, design and manufacturing expertise.Our High Performance Slim-Seal, Concentric design Butterfly Valves are reliable, maintenance free shutoff with permanently gas-tight seal with an integrally moulded or replaceable elastomer body liner. In our Butterfly Valve Wafer Body Design we are providing two nos. flange locating holes for sizes up to 12 and from size 14 and above 04 nos. for easy alignment of valve during installation. Flange locating hole confirm to as per ANSI B 16.5 Class 125 & Class 150 / BS 10 Table D, E, F / PN 6, PN 10, PN 16 or other international standard. We are also providing  High performance Butterfly Valves with Full-Lugs type body design with raised faces and flanged ends connection, Double Flanged Centric Disc Rubber lined Butterfly Valves, Seatless Butterfly Dampers.

Our Slim Seal design Butterfly Valves body seat mechanism have a very low torque, tight shut off with zero leakage, compact actuator selection, and long life smooth easy operation. The slim-seal, center disc design valves are widely available with different combination of body, seat & disc materials to satisfy the need of most industrial application.

Specifications of Butterfly Valves

  • Valve Design : Wafer Type Butterfly Valves/ Lug Type Butterfly Valves/ High Performance Butterfly Valves / Seatless Butterfly Damper / Double Flanged Centric Disc Butterfly Valves / Double Flanged Valves
  • Operations : Lever Operated / Gear Operated / Electrical / Pneumatic / Hydraulic Actuator
  • Mounting Pad /Top Flange Drilling  : As per ISO 5211 Part II

Butterfly Valve – Specifications

DESIGNWafer
TYPESoft Seated Offset- Series 230

Metal To Metal- Series 240

Sleeved- Series 250

SIZE50 to 900 mm (2” to 36”)
RATING150#
FLOW CHARACTERISTIC.Throttling, On-Off.
MATERIALS BODYCast Iron, Carbon Steel, Stainless Steel etc.
VANECarbon Steel ,Stainless Steel.
BODY SLEEVENeoprene, Nitrile, PTFE, EPDM, Silicon, Butyl, Viton etc.
SOFT SEATPTFE.
GLAND PACKINGPTFE V Rings upto 180° C

Grafoil upto 400° C.

ACTUATOR FORMDiaphragm, Rotary, Electric.
ACTUATOR TYPEScotch
DIAPHRAGMNitrile / Neoprene
SPRING RANGE3 – 15 Psig (0.2 – 1.0 Kg/cm²)

6 – 30 Psig (0.4 – 2.0 Kg/cm²)

AIR SUPPLY20 – 35 Psig (1.4 – 2.5 Kg/cm²)
AIR CONNECTION1/ 4” or 1/ 2” NPT
ACCESSORIES OPTIONALValve Positioner – Pneumatic, Electro Pneumatic, Smart, Airset, Solenoid Valve, Air Lock, Volume Booster Limit Switches- Micro/Proximity with Dome Indicator. Top or Side Mounted Handwheel Limit Stops

Butterfly Valve – Design Features

  • Compact & simple design, low cost and maintenance free.
  • Very high Cv to body size ratio.
  • Reliable smooth operation and flow control with assured product quality.
  • Bubble tight shut off, leakage Class – VI.
  • Rangeability of 33:1 in the control range.
  • Flow characteristic throttling for modulating duty.
  • Choice of Replaceable Linear/Moulded Lining.

Quality And Performance Guarantee

  • Produced with Quality Systems accredited to ISO 9001: 2008 by Bureau Veritas.
  • Full material certification available for all major component Parts.
  • Full guarantee on design and Performance.
  • All testing are performed to the requirements of ANSI B16.34.

Salient Features of Butterfly Valves

  • Concentric, Slim-Seal Design
  • Greater Sealing Capacity
  • Soft Seat Design and Wafer Design
  • Lower Torque with any fluid
  • Permanently tight closure
  • Bi-Directional Valve
  • Optimum operation under Vacuum Condition
  • Suitable for On-off as well as Throttling Service
  • Materials for almost all media
  • Short Face To Face Dimension
  • Long Service Life, Smooth and Easy Operation
  • Maintenance Free Version
  • Less Weight, Easy To Install

Special Options for Butterfly Valves

  • Off Set Disc Design Butterfly Valve for high pressure & temperature service.
  • Moulded / Replaceable Seat option
  • Gear / Pneumatic Rotary Actuator Operated
  • P.T.F.E. (PFA/FEP) Lined Butterfly Valve

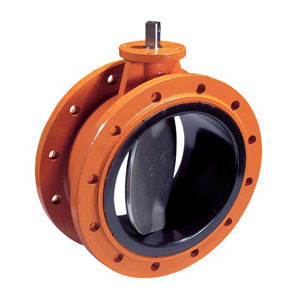

  • Flanged End, Butterfly Valve
  • Damper Type Butterfly Valve for High Temperature Air Service
  • Off Set Disc Design Butterfly Valve for high pressure & temperature service
  • Tailor Made Valve

Application

  • Water Treatment Plant
  • Paper Industry
  • Sugar Industry
  • Breweries
  • Chemical Industry
  • Waste Effluent Treatment Plant
  • Drilling Rigs
  • Gas Plant
  • Cooling Water Circulation
  • Heating & Air Conditioning
  • Pneumatic Conveyors
  • Compressed Air

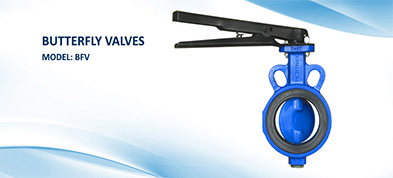

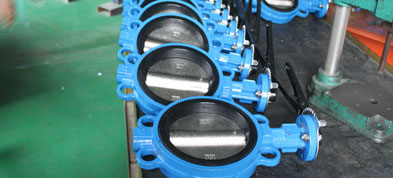

Wafer Type Butterfly Valves

General Purpose Rubber Lined Butterfly Valves

Citizen Metal Butterfly Valves are designed to meet the demanding requirements of the general utility valve market with the HVAC segment in particular. Our Butterfly valve incorporates the optimum design features to provide long trouble free service in the field. This general purpose soft seated Butterfly valve has a fully rubber lined single piece body with centric disc construction and is available in wafer type body pattern.
The body liner which also functions as the soft seat, comes in either a replaceable version or an integrally molded (bonded) version and offers 100 % bi-directional sealing against vacuum to rated pressure of PN 10 or PN 16.The wafer style body has universal design to fit between pipe flanges of almost all popular flange standards.
Our Butterfly Valves are generally supplied with manual hand lever or gear operated, depending on valve size. We are also offering Butterfly Valves with either Pneumatic, Hydraulic or Electrical actuator operated for automation as per clients requirement.

Butterfly Valves

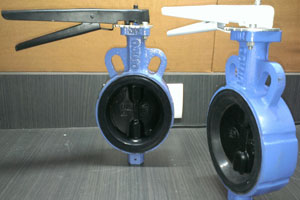

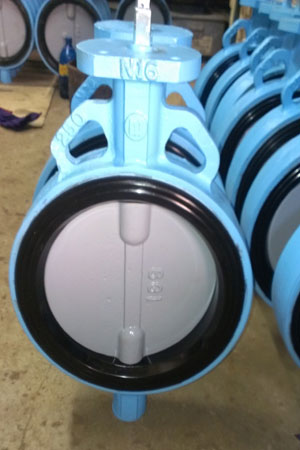

WAFER TYPE BUTTERFLY
VALVE PN16

Butterfly Valves

INVESTMENT CASTING WAFER
TYPE BUTTERFLY VALVE

Butterfly Valves

WAFER TYPE BUTTERFLY
VALVE PN16

Butterfly Valves

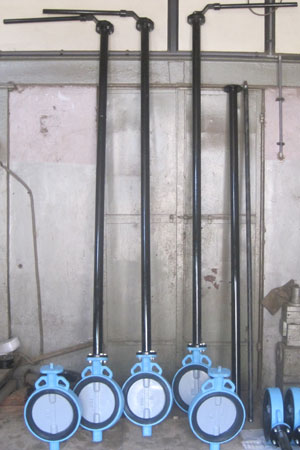

WAFER TYPE EXTENDED STEM (2500MM) NYLON COATED DISC BUTTERFLY VALVE

Butterfly Valves

NYLON COATED DISC BUTTERFLY VALVE AS PER ISO MOUTING PAD EASY TO MOUNT ACTUATOR, GEAR BOX

Butterfly Valves

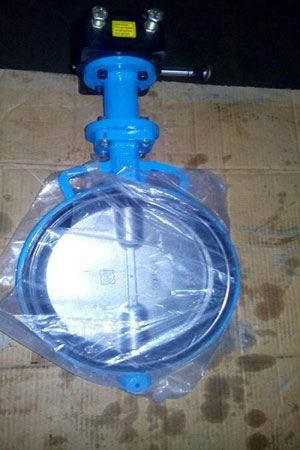

WAFER TYPE GEAR OPERATED
BUTTERFLY VALVE

Looking for a trusted company for butterfly valve bs 5155 Citizen Valves Iso Certified Comapny Manufacturers of butterfly valve bs en 593, wafer butterfly valve, lug butterfly valve, flanged butterfly valve, double flanged butterfly valve, flanged butterfly valve dimensions, single flange butterfly valve, double flanged butterfly valve dimensions, double flanged valve, butterfly valve manufacturers, butterfly valve types, 4 butterfly valve dimensions, butterfly valve function, butterfly valve specification, dn400 butterfly valve, Pneumatic Operated Butterfly Valves, butterfly valve 150 psi, butterfly valve 200 psi, butterfly valve 250 psi, butterfly valve 300 psi, butterfly valve 300 lbs, butterfly valve 150 lb, butterfly valve 600 lb, butterfly valve ansi 150, butterfly valve ansi 300, 4 inch butterfly valve, butterfly valve 40 inch, butterfly valve 40mm, butterfly valve 400mm, butterfly valve 50mm, 700 mm butterfly valve, butterfly valve 8 inch, butterfly valve 80mm, butterfly valve 900mm, butterfly valve pn16, butterfly valve pn10, PN10 Butterfly Valves, PN16 Butterfly Valves, butterfly valve asme b16.10, butterfly valve asme b16.34, butterfly valve 1.5 inch, butterfly valve 1 inch, butterfly valve 10 inch, butterfly valve 12 inch, butterfly valve 2 inch, butterfly valve 4 inch, butterfly valve class 150, butterfly valve class 300, butterfly valve class 600, butterfly valve class 900, butterfly valve ansi 600 in India

Technical Specifications

  • Valve Type : Centric Disc Design Butterfly valve with a single piece Rubber lined body
  • Body Type : Short Wafer
  • Seat Type : Replaceable for sizes 50 NB to 600 NB , PN 10 rating. Bonded seat for sizes 40 to 1200 NB for all applicable ratings.
  • End Connection : Wafer sandwiched
  • Size Range : 40 NB to 1200 NB
  • Pressure Rating : 40 NB to 600 NB-PN16 (maximum) , 650 NB to 1200 NB-PN10 (maximum)
  • Operating Temperature Range : -500 C to 2000 C (depending on MOC)
  • Seat Leakage : Tight Shut Off
  • Operation : Lever / Gear operated, Pneumatic/ Hydraulic/ Electrical Actuator operated

Conformity Codes and Standard

Design and Manufacturing Standard : API 609 category A/BS 5155/MSS SP-67
Testing Standard : BS 6755-I / API 598
Face to Face : Short wafer as per ISO 5752 Tab 5 & API 609 category A
Top Flange Drilling : ISO 5211 part II
Flange standard conformity : ANSI 150, DIN PN6 / PN10 /PN16 , JIS 5K / 10K / 16K BS 10 Tab D & E, IS 6392 NP 0.6 / 1.0 / 1.6 For sizes  650 ANSI B 16.47 Class 150 Series A / BS 3293 Class 150 and Series B / API 605

Material Of Construction

  1. Body : CI / SGI / WCB / CF8 / CF8M
  2. Disc : SGI / WCB / CF8 / CF8M
  3. Seat : EPDM / Viton / Nitrile / Neoprene / Hypalon / Silicon
  4. Shaft : AISI410 / SS 316 SH

Standard Test

  1. Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
  2. Seat Test: 1.5 times the working pressure with water.
  3. Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
  4. Special Test: On request, any other test can be carried out according to special instruction by client.

Key Features Of Wafer Type Butterfly Valve

  • Unique triple sealing system for shaft sealing, eliminates any fugitive emission or secondary leakage.
  • Self lubricated PTFE lined bearings for both drive end and non-drive end shaft ensures minimum bearing friction torque.
  • Seat liner extending on to the flange contact faces, eliminates the need for separate flange gaskets during installation.
  • Controlled compression of the gasket face to offer optimum sealing & prevent gasket face crushing failure.
  • Bi-directional valve with tight shut off sealing capability to hold vacuum to rated pressure in either direction.
  • Excellent adaptability for actuated operation through standardized top flange mounting dimensions for actuator fitment.
  • Suitability for ON /OFF as well as throttling duties.
  • Choice of seat and disc materials to suit media conditions and service requirements.
  • Adaptability to fit between companion flanges of all popular flange standards for the wafer style body.
  • Possibility of lower seat rating to obtain reduced operating torque and extended seat life for low operating pressures.

Lug Type Butterfly Valves

General Purpose Rubber Lined Butterfly Valves

Citizen Metal Lug Type Butterfly valve incorporates the optimum design features to provide long trouble free service in the field. This general purpose soft seated Butterfly valve has a fully rubber lined single piece body with a centric disc construction and is available in wafer lugged style body pattern to ensure precise location in pipeline.
The body liner which also functions as the soft seat, come either in a replaceable version or an integrally molded (bonded) version and offers 100 % bi-directional sealing against vacuum to rated pressures of PN 10 or PN 16. The lugged version with threaded holes can be used as end of line valves or terminal end valves.
Our Butterfly Valves are generally supplied with manual hand lever or gear operated, depending on valve size. We are also offering Butterfly Valves with either Pneumatic, Hydraulic or Electrical actuator operated for automation as per clients requirement.

Standard Test

  1. Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
  2. Seat Test: 1.5 times the working pressure with water.
  3. Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
  4. Special Test: On request, any other test can be carried out according to special instruction by client.

Butterfly Valves

LUG TYPE BUTTERFLY VALVE

Butterfly Valves

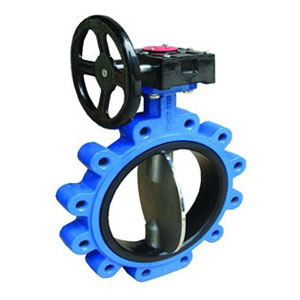

LUG TYPE GEAR OPERATED BUTTERFLY VALVE

Technical Specifications

  • Valve Type : Centric Disc Design Butterfly valve with a single piece Rubber lined body
  • Body Type :  Wafer Lugged
  • Seat Type : Replaceable for sizes 50 NB to 600 NB ,  PN 10 rating. Bonded seat for sizes 40 to 1200 NB for all applicable ratings.
  • End Connection : Wafer Lugged
  • Size Range : 40 NB to 1200 NB
  • Pressure Rating : 40 NB to 600 NB-PN16 (maximum) , 650 NB to 1200 NB-PN10 (maximum)
  • Operating Temperature Range : -500 C to 2000 C (depending on MOC)
  • Seat Leakage : Tight Shut Off
  • Operation : Lever / Gear operated, Pneumatic/ Hydraulic/ Electrical Actuator operated

Conformity Codes and Standard

Design and Manufacturing Standard : API 609 category A/BS 5155/MSS SP-67
Testing Standard : BS 6755-I / API 598
Face to Face : Short wafer lugged as per ISO 5752 Tab 5 & API 609 category A
Top Flange Drilling : ISO 5211 part II
Flange standard conformity : ANSI 150, DIN PN6 / PN10 /PN16 , JIS 5K / 10K / 16K BS 10 Tab D & E, IS 6392 NP 0.6 / 1.0 / 1.6 For sizes   650 ANSI B 16.47 Class 150 Series A / BS 3293 Class 150 and Series B / API 605

Material Of Construction

  1. Body : CI / SGI / WCB / CF8 / CF8M
  2. Disc : SGI / WCB / CF8 / CF8M
  3. Seat : EPDM / Viton / Nitrile / Neoprene / Hypalon / Silicon
  4. Shaft : AISI410 / SS 316 SH

Key Features Of Lug Type Butterfly Valve

  • Unique triple sealing system for shaft sealing, eliminates any fugitive emission or secondary leakage.
  • Self  lubricated PTFE lined bearings for both drive end and non-drive end shaft ensures minimum bearing friction torque.
  • Seat liner extending on to the flange contact faces, eliminates the need for separate flange gaskets during installation.
  • Controlled compression of the gasket face to offer optimum sealing & prevent gasket face crushing failure.
  • Bi-directional valve with tight shut off sealing capability to hold vacuum to rated pressure in either direction.
  • Excellent adaptability for actuated operation through standardised top flange mounting dimensions for actuator fitment.
  • Suitability for ON /OFF as well as throttling duties.
  • Choice of seat and disc materials to suit media conditions and service requirements.
  • The lugged wafer pattern ensures precise self  centering of valve between mating flanges.
  • Possibility of lower seat rating to obtain reduced operating torque and extended seat life for low operating pressures.

High Performance Butterfly Valves

The ultimate in high performance Butterfly valves, Citizen Metal High Performance Butterfly Valves series incorporates the ‘state of the art’ valve technology to out perform the competition. The double offset disc design nearly eliminates the seating wear due to the camming action of the disc during closing. The mechanical stopper provided on the valve body ensures precise valve closing every time to ensure specified seat tightness. The disc has a spherical profile and comes out of contact with seat in the initial opening itself.

The valve is available with three distinctly different seat design versions, viz. Soft seated, Fire safe and Metal to Metal seated with wafer or wafer lugged body option. The valve has excellent throttling characteristics with good low flow control capability, which offers an inherently higher rangeability.

This feature of High Performance Butterfly Valves series makes them ideal for the flow control / modulating duties. An adjustable gland box type shaft sealing arrangement permits on line adjustment of the packing to ensure zero leakage. The fire safe version, High Performance Butterfly Valve model has been fire tested and certified as per the requirements API 607 standard.
Our Butterfly Valves are generally supplied with manual hand lever or gear operated, depending on valve size. We are also offering Butterfly Valves with either Pneumatic, Hydraulic or Electrical actuator operated for automation as per clients requirement.

Key Features Of High Performance Butterfly Valve

  • Double offset disc design with a spherical profile seat eliminates seat wear and ensures perfect sealing every time.
  • Availability of wafer lugged body with through drilled or threaded holes
  • Available in 3 distinctly different seat version viz. PTFE seat, Fire Safe seat and Metal to Metal seated.
  • Self- lubricated drive end and non-drive end bearings for Soft Seated and Fire Safe models and galling free metal bearing for Metal to Metal versions.
  • Stuffing box type gland sealing to enable field adjustment of shaft sealing.
  • Gland packing standardized on graph oil rings (non-asbestos) to offer widest operating temperature range coupled with excellent media resistance.
  • Metal seat standardized on Inconel 625 material to offer maximum temperature resistance and minimum seat deformation.
  • Option of seat material for soft seated version in virgin PTFE or filled PTFE.
  • Seat removal without disconnecting of shaft and disc.
  • Split ring type thrust pad provided for the drive end shaft prevents axial movement of the disc as well as ensures the required ‘anti-static’ feature for the valve.

Butterfly Valves

HIGH PERFORMANCE GEAR OPERATED BUTTERFLY VALVE

Butterfly Valves

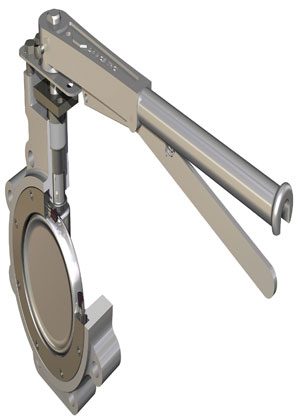

HIGH PERFORMANCE LEVER OPERATED BUTTERFLY VALVE

Technical Specifications

  • Construction Type : Double offset Disc Design High Performance Butterfly valve
  • Valve Model :  Fire Safe / Soft Seated / Metal to Metal
  • Body Type and End Connection  : Wafer sandwiched or Wafer lugged
  • Size Range : 80 NB to 600 NB
  • Pressure Rating : ANSI 300#
  • Operating Temperature Range : -500 C to 2000 C  for Soft Seated and Fire Safe Design ,  -500 C to 6000 C for Metal to Metal
  • Operation : Lever / Gear operated, Pneumatic/ Hydraulic/ Electrical Actuator operated

Conformity Codes and Standard

Design and Manufacturing Standard : API 609 category B
Pressure and Temperature Rating : ANSI B 16.34
Testing Standard : API 598 / ANSI / FCI 70-2
Face to Face : API 609 category B / ANSI B 16.10
Top Flange Drilling : ISO 5211 part II
Fire Safe Testing  : API 607
Flange standard conformity : ANSI B 16.5 Class 150 & Class 300

Material Of Construction

  1. Body : WCB / CF8 / CF8M
  2. Disc :  WCB / CF8 / CF8M
  3. Seat :  PTFE / Glass filled PTFE
  4. Shaft : AISI410 / SS 316 SH

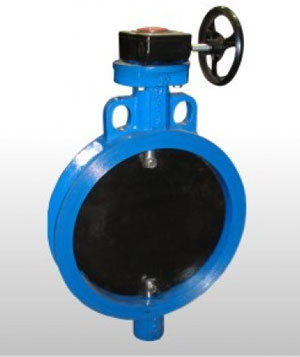

Seatless Butterfly Damper

Butterfly dampers, offered by Citizen Metal are essentially seatless Butterfly valves intended for low pressure gas lines and air lines. The lightweight construction with the narrow wafer body enables easy fitment of these valves in ducts, manifolds and exhaust lines without additional support or strengthening of pipe lines.
Our valves are primarily intended for low – pressure large volume gas / air flow control applications. The absence of seat substantially reduces the valve operating torque requirements and makes the valve very effective for flow control / regulation duties. Butterfly Damper is an ideal choice for furnace air flow and combustion control applications.

Even though the body is designed for a maximum pressure of 2.5 bar the maximum shut off pressure is limited to 0.5 bar only .The disc flap is held in position by a stub shaft with an axial locking arrangement provided on the top shaft. The top shaft sealing is through stuffing box type gland sealing arrangement, which is field adjustable.
Our Butterfly Valves are generally supplied with manual hand lever or gear operated, depending on valve size. We are also offering Butterfly Valves with either Pneumatic, Hydraulic or Electrical actuator operated for automation as per clients requirement.Butterfly Valves

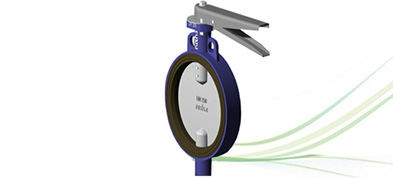

WAFER TYPE DAMPER VALVE

Technical Specifications

  • Construction Type : Centric Disc, Seatless Butterfly damper
  • Body Type : Narrow wafer single piece
  • End Connection  : Wafer, sandwiched between flanges
  • Size Range : 40 NB to 1200 NB
  • Maximum Operating Pressure  : 0.5 bar (maximum)
  • Operating Temperature Range : -250 C to 6000 C (depending on MOC)
  • Operation : Lever / Gear operated, Pneumatic/ Hydraulic/ Electrical Actuator operated

Conformity Codes and Standard

Actuator Mounting Bracket  : ISO 5211 Part II
Testing Standard : API 598/ ANSI / FCI : 70-2 (Class II )
Flange standard conformity : ANSI 150,DIN PN 6 /10,BS 10 Table D

Material Of Construction

  1. Body : WCB / CF8 / CF8M
  2. Disc : CS-IS 2062 / SS 304 / SS 316
  3. Shaft : AISI410 / SS 316 SH

Key Features Of Seatless Butterfly Damper

  • Lightweight design suitable for mounting in ducts, exhaust lines and ventilation pipes.
  • Very low operating torque due to seatless construction.
  • Ideal for flow control / modulating duties in low pressure gas lines.
  • Very low pressure drop in open condition.
  • Wide operating temperature range to cater to exhaust & flue gas control lines.
  • Zero external leak due to the stuffing box type gland sealing arrangement.
  • Perfect adaptability for manual or actuated applications.

Double Flanged Centric Disc Butterfly Valves

Double Flanged Centric Disc Rubber Lined Butterfly Valves

The most sought after design by desalination plants and utility installations, Citizen Metal Double Flanged Centric Disc Butterfly Valve represents the state of the art rubber lined Flanged double valve, meeting all the user industry requirements.

The double flanged body pattern ensures precise installation in pipeline, and can be used as an end to the line valve if required. the unique feature of this valve, is its ability for lined pipes, due to negligible disc protrusion beyond the body laying length. The universal square top shaft on valves upto 200 NB, enables easy change over from hand lever operation to actuated operation when required.
Our Butterfly Valves are generally supplied with manual hand lever or gear operated, depending on valve size. We are also offering Butterfly Valves with either Pneumatic, Hydraulic or Electrical actuator operated for automation as per clients requirement.

Butterfly Valves

DOUBLE FLANGED CENTRIC DISC RUBBER LINED BUTTERFLY VALVE

Technical Specifications

  • Valve Type : Centric Disc Design lined Flanged end Butterfly valve
  • Body Type : Double Flanged Short
  • Seat Type : Integrally Bonded with body ID
  • End Connection : Flanged Ends (Double Flanged)
  • Size Range : 50 NB to 600 NB
  • Pressure Rating : PN6, PN10 & PN16
  • Operating Temperature Range : -200 C to 1300 C (depending on MOC)
  • Seat Leakage : Tight Shut Off
  • Operation : Lever / Gear operated, Pneumatic/ Hydraulic/ Electrical Actuator operated

Conformity Codes and Standard

Design and Manufacturing Standard : EN 593 (BS 5155)/ API 609/ IS 13095
Testing Standard : API 598 / EN 12266 Part 1 (BS 6755 Pt 1)
Face to Face : Double flanged Short Pattern to EN593 (BS5155) / API 609, IS 13095 /ISO 5752 series-13 / EN 558-1 series-13
Top Flange Drilling : ISO 5211
Flange standard conformity : ASME B16.5 #150, en 1092 or BD4504-PN6/PN10/PN16/AWWAC207CLASS-B&D

Material Of Construction

  1. Body : CI / SGI / WCB
  2. Disc : SGI / WCB / CF8 / CF8M
  3. Seat : EPDM / Nitrile / Neoprene / Hypalon
  4. Shaft : AISI410 / SS 316 SH
  5. Bearing : Steel + PTFE or SS316 + PTFE

Key Features Of Double Flanged Centric Disc Butterfly Valve

  • Fully rubber lined body, with lining extending upto the flange contact face to make gasket free sealing.
  • Ideal valve for installation with lined pipes, since the disc chord interference with pipe ID is negligible.
  • Controlled compression of the gasket face offers optimum sealing and prevents gasket face crushing.
  • Unique triple sealing system, for shaft sealing to ensure zero secondary leakage.
  • Self lubricated PTFE lined bearings, for both drive end and non-drive end shafts, ensures minimum bearing friction.
  • Bi-directional tight shut off sealing from vacuum to rated pressure.
  • Excellent adaptability for actuated operation through standardized ISO top flange.
  • Universal top square shaft enabling direct actuator fitment, after removal of Hand lever, for sizes upto 200 NB.
  • Choice of seat and disc materials to suit media and operating conditions.
  • Enables installation close to other pipe fittings, without disc interference.
  • Preferred design for desalination plants, municipal water supply and Effluent plants.
  • Adjustable bottom thrust pad / bearing for 250 NB and higher to take care of axial thrust loading.
  • 600 NB/650 NB size provided with “O Ring holder” type drive end shaft sealing arrangement for extra reliability.

Double Flanged Valves

Citizen Metal double flanged range of valves are double eccentric design butterfly valves. These are available in cast as well as fully fabricated design. The face to face dimensions can be either as per BS (Series BC & BF) or as AWWA (Series AC & AF).These valves incorporate a double offset disc design, which practically eliminates any seat wear. The fully replaceable seat provided on the disc periphery is field replaceable and is capable of achieving bi-directional sealing. The rubber seat  seals against a St. Steel seat ring integrally welded with the body.
Our Butterfly Valves are generally supplied with manual hand lever or gear operated, depending on valve size. We are also offering Butterfly Valves with either Pneumatic, Hydraulic or Electrical actuator operated for automation as per clients requirement.

Key Features Of Double Flanged Butterfly Valve

  • Perfectly machined stainless steel seat ring with specially designed sealing profile of the rubber ensures continued tight shut off sealing and makes it an ideal choice for the flow isolation and shut off duties.
  • The double offset disc design ensures minimal seat wear and provides excellent throttling capabilities, which makes it an ideal choice for flow control duties.
  • Adjustable mechanical stopper provided on Valve body ensures precise closing of the disc without over/under travel.
  • Actuator (operator) mounting flange standardized to ISO 5211 with provision of locational spigot, ensures direct mounting of actuators and gear boxes without any radical loading of shafts.
  • Both Drive end and non drive end shafts are fully blowout proof and guided by self lubricated bush bearings.
  • Axial thrust bearing provided on valves, ensures precise positioning of the disc and prevents unequal loading of the valve seat. It also enables installation of valve in any orientation if required.
  • Special shaft sealing arrangement ensure zero fugitive emission and enables field replacement of shaft sealing elements.
  • The seat (sealing element) provided on the disc is fully field replaceable and ensures optimum seating / unseating torque.
  • A choice of seat materials makes the valve suitable for gas or liquid services with a host of applications.

Butterfly Valves

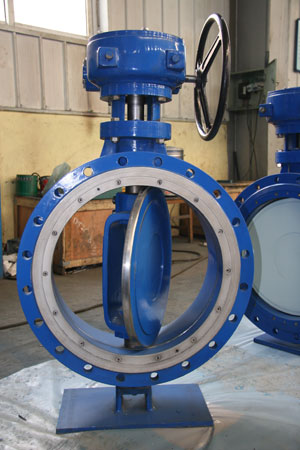

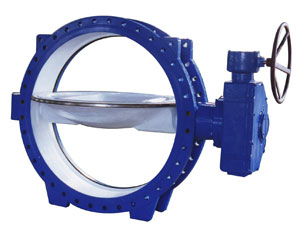

DOUBLE FLANGED GEAR OPERATED BUTTERFLY VALVE

Butterfly Valves

DOUBLE FLANGED GEAR OPERATED BUTTERFLY VALVE

Technical Specifications

  • Valve Type : Flanged End Double Offset Disc Butterfly Valve Of Cast  Construction
  • Body Type :  Flanged Short Body
  • Body Seat :  SS Ring welded to Valve Body / SS Ring Bolted to Valve Body
  • Disc Type : Double Offset mounted on stub shafts
  • Disc Seat : Replaceable ‘O’ Ring clammed on Disc
  • Shafts Spindle : Stub Shafts, Blow out Proof
  • Size Range : 65 NB to 1800 NB
  • Pressure Rating : PN 2.5, PN6, PN10 & PN16
  • Operating Temperature Range : 00 C to 1800 C
  • Seat Leakage : Tight Shut Off
  • Operation : Lever / Gear operated, Pneumatic/ Hydraulic/ Electrical Actuator operated

Conformity Codes and Standard

Testing Standard : EN 12266 PT-1 / BS 6755 / API 598 ; AWWA C504
Face to Face : SHORT SERIES AS PER EN 593 / BS 5155, SERIES 13 AS PER EN 588-1, SHORT AS PER ISO 5752 TAB-4 ; AWWA C504
Top Flange Drilling : ISO 5211
Flange standard conformity : EN 1092-1 & 2, BS4504 / IS6392 / ANSI B16.47, ANSI B16,1 / AWWA C207

Material Of Construction

  1. Body : CI / SGI / WCB / CF8 / CF8M
  2. Disc Seat : NBR, EDPM, SILICON, VITON
  3. Body Seat : STAINLESS STEEL SS304 / SS316  OR AISI 410
  4. Clamping Ring : CARBON STEEL IS2062 GR.B, STAINLESS STEEL SS304, SS316
  5. Shaft : AISI410 / SS 316 SH
  6. Shaft Bearing : SELF LUBRICATING (STEEL + PTFE) OPTIONALLY BRONZE / AL. BRONZE

Note : Specifications and Dimensions are subject to change without prior notice


Butterfly Valves Materials

Stainless Steel Butterfly Valve
Stainless Steel Butterfly Valve Suppliers Dealers Distributors in India

Butterfly Valve, Stainless Steel Forged Steel 304 Valve, Stainless Steel F321 Butterfly Valve, F347 Butterfly Valve, SS High Pressure Butterfly Valve, Class 150, 300, 600, 900, 1/2 inch stainless steel Butterfly Valve, 1/2" stainless steel Butterfly Valve, 3/4 Size Butterfly Valve, 4 inch stainless steel Butterfly Valve, Industrial Butterfly Valve, Stainless Steel 316 Butterfly Valve Suppliers in India... Read more

Alloy Steel Butterfly Valve
Alloy Steel Butterfly Valve Suppliers Dealers Distributors in India

Alloy Steel Butterfly Valves, Chrome Moly Alloy A217 / SA217 Cast Valves, WC9 Alloy Steel Globe Valve, 4 Inch, 2500#, A350 LF3, A352 LC3, A182 F5A/F5, A217 C5, A182 F9, A217 C12, A182 F11, A217 WC6, A182 F22, A217 WC9, A182 F91, A217 C12A, 10 Inch, RF, WC9 Gate Valve, PSB, 12 Inch, 2500 LB, Alloy Steel Valves Dealers & Distributors in India.. Read more

Carbon Steel Butterfly Valve
Carbon Steel Butterfly Valve Suppliers Dealers Distributors in India

Butterfly Valves, Carbon Steel Butterfly Valves, Carbon Steel Valve Material, ASTM A350 LF2 Butterfly Valves, Carbon Steel ASTM A106 Butterfly Valves, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34 ASTM A105N Butterfly Valves, Cast Carbon Steel Butterfly Valves, API 600 Cast Steel Butterfly Valves, Forged Carbon Steel Butterfly Valves Exporters & Suppliers In India.. Read more

Hastelloy Butterfly Valve
Hastelloy Butterfly Valve Suppliers Dealers Distributors in India

Hastelloy Butterfly Valve, Hastelloy C276 Butterfly Valve, Hastelloy C22 Butterfly Valve, Hastelloy B2 Butterfly Valve, Hastelloy C276/C22 Valves, ASTM B 435 Hastelloy X Butterfly Valve, Hastelloy B2 Butterfly Valve, ASME B16.34 Butterfly Valve, UNS N10665 Hastelloy B2 Butterfly Valve, UNS N10276 Hastelloy C276/C22 Manufacturer / Suppliers in Mumbai India. Read more

Alloy 20 Butterfly Valve
Alloy 20 Butterfly Valve Suppliers Dealers Distributors in India

Wholesale Various High Quality Industrial Butterfly Valve Products from Citizen Metals, Largest Suppliers of Alloy 20 Butterfly Valve, Alloy 20 Butterfly Valve Dealers, Alloy 20 Check Valve, UNS N08020 Alloy 20 Butterfly Valve, Alloy 20 Butterfly Valve Suppliers, Alloy 20 Butterfly Valve Manufacturer, Alloy 20 Butterfly Valve Manufacturers in India. Read more

Nickel 200/201 Butterfly Valve
Nickel 200/201 Butterfly Valve Suppliers Dealers Distributors in India

We supply broad range of Nickel 200/201 Butterfly Valve, Leading Suppliers of Nickel 200/201 Valves, Ni-200 Butterfly Valve, Ni-201 Butterfly Valve, Uns N02200 Butterfly Valve, Uns N02201 Butterfly Valve, Nickel 200/201 Butterfly Valve Dealers, Butterfly Valve Suppliers, Nickel 200/201 Butterfly Valve Manufacturer, Nickel 200/201 Butterfly Valve Manufacturers in India. Read more

Monel® Butterfly Valve
Monel 400 Butterfly Valves Suppliers Dealers Distributors in India

we supply Monel 400 Valves with high quality and best affordable rate., Monel 400 Butterfly Valves, Monel DIN 2.4360, 2.4375 Butterfly Valves, Monel UNS N04400 Butterfly Valves, Monel UNS N05500 Butterfly Valves, Monel Butterfly Valves, Monel K500 Butterfly Valves, Monel 400 Butterfly Valves Distributors in India... Read more

Duplex Steel Butterfly Valve
Duplex Steel Butterfly Valve Suppliers Dealers Distributors in India

We specialize in the oil & gas industries and offer specialty Duplex Steel Butterfly Valve, UNS S31803 Butterfly Valve Suppliers in India, DIN 1.4410 Super Duplex Steel Butterfly Valve, ASME B 16.10 UNS S32760 Butterfly Valve, ASTM A351 Duplex Steel UNS S31803, ASME SA494 Duplex Steel UNS S31803, Duplex Steel UNS S31803 Class 900 Butterfly Valve Exporters in India. Read more

254 Smo Butterfly Valve
254 Smo Butterfly Valve Suppliers Dealers Distributors in India

Butterfly Valve, 254 Smo Butterfly Valve, Cryogenic 254 SMO gate valve, ASME B16.34 SS 254 SMO Butterfly Valve, Stainless Steel 254 SMO Butterfly Valve, ASTM A351 SS SMO 254 Butterfly Valve, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34, 254 SMO Industrial Valves, Stainless Steel 254SMO Butterfly Valves Suppliers in India.. Read more

904l Stainless Steel Butterfly Valve
904l Stainless Steel Industrial Butterfly Valve Suppliers Dealers Distributors in India

Butterfly Valve, 904l Stainless Steel Butterfly Valve, 904l Stainless Steel Industrial Butterfly Valve, SS 904L ASTM A351 Butterfly Valve, ASME B 16.10 Butterfly Valve, ASME B 16.5, ASME B 16.25, ASME B 16.34, UNS N08904, 1.4539, BS 904S13, JIS SUS 890L Butterfly Valve , 904l Stainless Steel Butterfly Valves, High Pressure 904l Stainless Steel Butterfly Valve Exporters in India.. Read more

Inconel Butterfly Valve
Inconel Butterfly Valve Suppliers Dealers Distributors in India

Butterfly Valves, Inconel Butterfly Valve, Inconel 600 Butterfly Valve, INCONEL WERKSTOFF NR. 2.4816 Butterfly Valves, Inconel 600 N06600 Butterfly Valves, Inconel 2.4816 Butterfly Valves, UNS N06600 Butterfly Valves, Inconel 600 Butterfly Valves, API 600/ BS1414, ALLOY 600 Butterfly Valves, ASME B 16.5 Butterfly Valves Dealers in India.. Read more

Titanium Butterfly Valve
Titanium Butterfly Valve Suppliers Dealers Distributors in India

We are the one of the top most manufacturers of different types of Industrial Butterfly Valve, We have a large inventory of Butterfly Valve in a variety of options., Largest Suppliers of Titanium Gr2(B367 Gr C2) Butterfly Valve, Titanium Gr3(B367 Gr C3) Butterfly Valve, Titanium TA1, TA2, Titanium Gr.5, Gr6 Butterfly Valve,Gr7 ,Gr12, Titanium TC4,TA9,TA10 Dealers in India.. Read more

Brass Butterfly Valve
Brass Butterfly Valve Suppliers Dealers Distributors in India

Brass Butterfly Valve, brass Butterfly Valve price list in India, brass Butterfly Valve 1/2, 1 inch brass Butterfly Valve, brass Butterfly Valve 3/4, brass Butterfly Valve price list india, 3 inch brass check valve, brass Butterfly Valve price list, 1/2 inch Butterfly Valve, 4 brass Butterfly Valve, 3/4 brass Butterfly Valve, 4 inch brass Butterfly Valve, 2 inch brass Butterfly Valve Read more

Copper Butterfly Valve
Copper Butterfly Valve Suppliers Dealers Distributors in India

Experience Of 50 Years In Copper Butterfly Valve, We have a large inventory of Copper Butterfly Valve, Copper 90/10 Butterfly Valve, Copper 70/30 Butterfly Valve, Copper Cu-Ni 70/30 Butterfly Valve, Copper 90/10 Butterfly Valve Dealers, Copper 70/30 Butterfly Valve Suppliers, Copper Cu-Ni 70/30 Butterfly Valve Manufacturer, Copper Cu-Ni 90/10 Butterfly Valve Manufacturers in India. Read more

Butterfly Valves Others

Project Reference

PROJECT

YEAR

Project : Water treatment plant at Malawi, AFRICA.

1984

Project : Ambatale Raw Water Intake Pump Station, SRILANKA.

1985

Project :  Synthetic Fibre Plant, INDONESIA.

1991

Project  :     Water  Treatment  Plant  for  Phoenix-II  Paper plant, THAILAND.

1992

Petron Civil Engineering Ltd., Bombay

1992

Project : Water Supply Project, MAURITIUS.

Paharpur Cooling Towers Ltd., Calcutta Project :  National Petrochemical Co., IRAN

1993

Ion Exchange India Ltd., Project: In INDONESIA

1993

GEPL Holdings Pte. Ltd., SINGAPORE. Project : In PAKISTAN

1997

UEM Inc., USA

1998

Project: Shah Alam Sewage treatment plant, MALAYSIA

Environmental Engineering Services (Asia)Pte. Ltd., Singapore.

1999

Project : Taman Plangi Indah Phase-1 Sewage Treatment Plant, MALAYSIA.

Gulfar Engineering & Contracting LLC, OMAN.
Project: Salalah Sewage Pumping plant , Muscat, OMAN. CONULTANTS : Parsons Engineering Science, Inc

2000

Risterm Negoce SA, Belgium.
Project : Sappi Paper Mills , BELGIUM.

2004

Saudi Berkefeld Filter Co. Ltd., Riyadh, Saudi Arabia Project : Al-Qurayat SWT and Rafha  wastewater  treatment Plant, SAUDI ARABIA
CONSULTANTS : Tawafiq Engineering  Consultant  office and Al-Tawfeek Office, SAUDI ARABIA  (Through   Jash Schutte Industrie service  GmbH,Germany
)

2004

Metax Engineering Corporation, Singapore
Project : Kim Chuan STW – Contract 2, SINGAPORE

2004

A. K. Almoayed Group WLL, Baharain
Project : #49905, Pumping Station E4, Habib Awachi, BAHRAIN.
CONSULTANTS: Watson Khonji Consulting Engineers, Bahrain.

2004

Satria Damai SDN BHD, Malaysia Project : SMART, MALAYSIA.
CONSULTANTS : MM Consultants SDN. BHD.

2004

Risterm Negoce, Belgium
Project : Sappi Paper mills , BELGIUM

2004

AVM International Ltd. A/S, Norway Project : Yapisal Erzurum, TURKEY
CONSULTANTS: ER-GE Design Engg. Consultant & Trade Ltd. Co., Istanbul

2005

Stealth valve & Controls Ltd., Canada
Project : Seymour- Capilano Filtration Project, Greater Vancouver water District., CANADA
CONSULTANTS : SSBV Consultants Inc.,

2005

Comfort Rich Enterprises Limited , Hongkong
Project : WSD Tuen  Mun Stage 5 Project, HONGKONG

2005

ROFI UK Ltd./ Syl-Mac International
Project : Erbil-Ifraz water project, IRAQ by Fluor AMEC LLC, Dubai.

2005

ROFI UK Ltd./ Syl-Mac International
Project : Nasiriya Water Project, IRAQ by Fluor AMEC LLC, Dubai

2005

ROFI UK Ltd./ Syl-Mac International
Project : Balad Rooz Water Project, IRAQ by Fluor AMEC LLC, Dubai

2005

Degremont.,
Project : Bangkhen Water Treatment Plant at Bangkok, Contract No. G-BK-7, THAILAND
CONSULTANTS: Nihon Suideo Consultants Co. Ltd. In Associated with Team Consulting Engineering and Management Co. Ltd., Thailand.

2005

Stealth valve & Controls Ltd., Canada
Project : Seymour- Capilano Filtration Project, Greater Vancouver water District., CANADA
CONSULTANTS : SSBV Consultants Inc.,

2005

Metax Engineering Corporation Limited, Singapore. Project – Tuas pumping station of PUB, SINGAPORE

2006

UEM India Limited, N. Delhi, Project : Pig farm project, MEXICO

2006

AVM International Limited, Norway Project : Water treatment plant, GHANA

2006

Spaans Babcock Limited, England, Project :- Liandysul WWTW

2006

Comfort Rich Enterprises Limited, Hong Kong, Project : Shatin project, HONGKONG

2006

ROFI UK Ltd. UK for Fluor AMEC LLC , Project :  Nasiriya Water Project, IRAQ.

2006

Kruger A/S Denmark.
Project : Oset Water Treatment Plant, Oslo, NORWAY

2006

Perrier  Sorem,  France, Project: - Paul Bert, FRANCE.

2007

Ebara Corporation Japan,
Project: - Astana City project, KAZAKHSTAN. CONSULTANTS : NJS Consultants Co. Ltd.

2007

Environmental engineering Services, Oman,
Project: - Nizwa Sewerage Treatment Plant, OMAN. CONSULTANTS : National Engineering Services Pakistan & Partners.

2007

The National Co. For Mech. & Elect. Works Ltd., Kuwait Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2007

Aqua Tech International, Oman, / Contractors Technical Services Co. LLC, Oman.
Project: Mukhaizana MVC Project, OMAN

2007

Shutte GmbH, Germany CONSULTANTS : UHDE, Germany

2007

Paramount Limited, Baroda
Project: Petrotrin Refinery Project, TRINIDAD & TOBAGO.
CONSULTANTS : Bechtel.



2007

Syl Mac International, Mumbai.
Project : Cheung Sha catchwater, HONG KONG.

2007

A.   K. Almoayed Group WLL, Baharain,
Project : A4 pumping station, BAHRAIN by Habib Awachi
CONSULTANTS: Watson Khonji Consulting Engineers, BAHRAIN

2007

A.   K. Almoayed Group WLL, Baharain,
Project : SAAR Sewarage Scheme BAHRAIN, by Habib Awachi,
CONSULTANTS: Watson Khonji Consulting Engineers, BAHRAIN

2007

Comfort Rich Enterprises Limited, Hong Kong, Project : Tai Po project , HONGKONG

2007

Perrier Sorem, France,
Project :- Cyco FOS – 480 MW Power project, FRANCE by Alstom, France.

2007

Comfort Rich, Hong Kong.
Project: - Kwun Tong Pumping Station, HONG KONG

2007

Spanns Babcock, U.K.
Project: Thames Water Supply Project. CONSULTANTS :

2007

Comfort Rich Supplies Co., Ltd, Hong Kong.
Project : Shatin STW Replacement project, HONG KONG

2007

Syl Mac International, Mumbai. Project : HONG KONG

2007

Project : Cheung Sha catchwater, HONG KONG.

2007

Ryoden Engineering Co., Ltd., Hong Kong.
Project : Nam Sang Wai SPS, Sha Po SPS, Kam Tin SPS, HONG KONG.
CONSULTANTS :

2008

Ryoden Engineering Co., Ltd., Hong Kong.
Project : Nam Sang Wai SPS, Sha Po SPS, Kam Tin SPS, HONG KONG
CONSULTANTS :

2008

Comfort Rich Supplies Co., Ltd, Hong Kong.
Project : Sheung Wan Storm water PS. HONG KONG.

2008

WB Engineering & Consultancy Pte. Ltd., China Project : Punggol Serangoon PS, Intake Structure & Ancillary Works, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2008

Comfort Rich Supplies Co., Ltd, Hong Kong. Project : Shatin Storm water PS. HONG KONG.

2008

WB Engineering & Consultancy Pte. Ltd., CHINA. Project : ULU Pandan Tidal gate, SINGAPORE. CONSULTANTS :

2008

Star Steel International LLC, Dubai Project : Rebar Mill, Dubai.
Consultant : MECON

2008

Project : Astana Water Supply and Sewerage Project KAZAKHSTAN.
CONSULTANTS : NJS Consultants Co. Ltd.

2008



WB Engineering & Consultancy Pte. Ltd., China Project : Punggol Serangoon PS, Intake Structure & Ancillary Works, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2008

WB Engineering & Consultancy Pte. Ltd., China Project : SINGAPORE.

2008

Dutco Tennant LLC, Dubai
Project : NASS Contracting Co. WLL, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2008

Dutco Tennant LLC, Dubai
Project : NASS Contracting Co. WLL, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2008

Ebara Corporation Japan,
Project: - Astana City project, KAZAKHSTAN. CONSULTANTS : NJS Consultants Co. Ltd.

2008

A.K. Almoayed Group WLL, Baharain, Project : A1 Pumping Station, BAHRAIN Al Hassanain mechanical Co.,
Consultant : Watson Khonji .

2008

Degremont Limited, Gurgaon, India
Project: - Nhon Trach Water Supply Project, VIATNAM CONSULTANTS : Nippon Koei Co.Ltd., JAPAN and Nihon Suido Consultant Co., Ltd., VIATNAM

2008

Global Engineering Systems FZ, Sharjah, UAE Project: -
CONSULTANTS :

2009

Comfort Rich Supplies Co., Ltd, Hong Kong. Project: Ma On Shan SPS, HONG KONG CONSULTANTS :

2009

Kharafi National KSC (Closed), Kuwait
Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2009

Kharafi National KSC (Closed), Kuwait
Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2009

Spanns Babcock Ltd., U.K.
Project: Howdon WWTW Project UK CONSULTANTS :

2009

Spanns Babcock Ltd., U.K..
Project: Thames Water Supply Project UK CONSULTANTS :

2009

Astra Marketing Limited, Bangkok, Thailand.
Project: MWA’s Raw Water Pumping Station No. 1 at Bang Khen WTP, Bangkok, THAILAND.
CONSULTANTS :

2009

Gulf Petrochemical Services & Trdg. LLC, Oman
Project: C-170, Rushtaq Sewage Pumping Station, OMAN CONSULTANTS :

2009

Lutz-Jesco Middle East FZE, Sharjah, U. A. E. Project:
CONSULTANTS :

2009

PLS France for Degremont Ltd., France.
Project: Al Dur Independent Water & Power Project, BAHRAIN
CONSULTANTS :

2009

PVT Engineering SDN BHD, Malaysia Project: Kepala Batas, MALAYSIA CONSULTANTS : RPM Engineers SDN BHD

2009

WB Engineering & Consultancy Pte. Ltd., China
Project : Contract 6, Punggol Serangoon Reservior Scheme, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2009

Dutco Tennant LLC, Dubai
Project : Shk Khalifa Highway Project, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2009



Butterfly Valve Price

2 inch butterfly valve price
US $10-300 / Piece
butterfly valve price list in india
US $10-300 / Piece
butterfly valve price list 2016
US $10-300 / Piece
butterfly valve price list 2015 in india
US $10-300 / Piece
3 inch butterfly valve price india
US $10-300 / Piece
6 inch butterfly valve price
US $10-400 / Piece
4 inch butterfly valve price
US $10-300 / Piece
butterfly valve price list 2017
US $10-300 / Piece
Latest butterfly valve price list
US $10-300 / Piece

Tag : Wafer Type Butterfly Valves/ Lug Type Butterfly Valves/ High Performance Butterfly Valves / Seatless Butterfly Damper / Double Flanged Centric Disc Butterfly Valves / Double Flanged Valves, Lever Operated Butterfly Valves / Gear Operated Butterfly Valves / Electrical Butterfly Valves / Pneumatic Butterfly Valves / Hydraulic Actuator Butterfly Valves, LINED BUTTERFLY VALVES, Carbon Steel, Stainless Steel, Monel K500, butterfly valve bs 5155, butterfly valve bs en 593, wafer butterfly valve, lug butterfly valve, flanged butterfly valve, double flanged butterfly valve, flanged butterfly valve dimensions, single flange butterfly valve, double flanged butterfly valve dimensions, double flanged valve, butterfly valve manufacturers, butterfly valve types, 4 butterfly valve dimensions, butterfly valve function, butterfly valve specification, dn400 butterfly valve, Pneumatic Operated Butterfly Valves, butterfly valve 150 psi, butterfly valve 200 psi, butterfly valve 250 psi, butterfly valve 300 psi, butterfly valve 300 lbs, butterfly valve 150 lb, butterfly valve 600 lb, butterfly valve ansi 150, butterfly valve ansi 300, 4 inch butterfly valve, butterfly valve 40 inch, butterfly valve 40mm, butterfly valve 400mm, butterfly valve 50mm, 700 mm butterfly valve, butterfly valve 8 inch, butterfly valve 80mm, butterfly valve 900mm, butterfly valve pn16, butterfly valve pn10, PN10 Butterfly Valves, PN16 Butterfly Valves, butterfly valve asme b16.10, butterfly valve asme b16.34, butterfly valve 1.5 inch, butterfly valve 1 inch, butterfly valve 10 inch, butterfly valve 12 inch, butterfly valve 2 inch, butterfly valve 4 inch, butterfly valve class 150, butterfly valve class 300, butterfly valve class 600, butterfly valve class 900, butterfly valve ansi 600

Butterfly Valves Ready Stock Available

butterfly valve bs 5155
butterfly valve bs en 593
wafer butterfly valve
lug butterfly valve
flanged butterfly valve
double flanged butterfly valve
flanged butterfly valve dimensions
single flange butterfly valve
double flanged butterfly valve dimensions
double flanged valve
butterfly valve manufacturers
butterfly valve types
4 butterfly valve dimensions
butterfly valve function
butterfly valve specification
dn400 butterfly valve
Pneumatic Operated Butterfly Valves
butterfly valve 150 psi
butterfly valve 200 psi
butterfly valve 250 psi
butterfly valve 300 psi
butterfly valve 300 lbs
butterfly valve 150 lb
butterfly valve 600 lb
butterfly valve ansi 150
butterfly valve ansi 300
4 inch butterfly valve
butterfly valve 40 inch
butterfly valve 40mm
butterfly valve 400mm
butterfly valve 50mm
700 mm butterfly valve
butterfly valve 8 inch
butterfly valve 80mm
butterfly valve 900mm
butterfly valve pn16
butterfly valve pn10
PN10 Butterfly Valves
PN16 Butterfly Valves
butterfly valve asme b16.10
butterfly valve asme b16.34
butterfly valve 1.5 inch
butterfly valve 1 inch
butterfly valve 10 inch
butterfly valve 12 inch
butterfly valve 2 inch
butterfly valve 4 inch
butterfly valve class 150
butterfly valve class 300
butterfly valve class 600
butterfly valve class 900
butterfly valve ansi 600

Tag : Wafer Type Butterfly Valves/ Lug Type Butterfly Valves/ High Performance Butterfly Valves / Seatless Butterfly Damper / Double Flanged Centric Disc Butterfly Valves / Double Flanged Valves, Lever Operated Butterfly Valves / Gear Operated Butterfly Valves / Electrical Butterfly Valves / Pneumatic Butterfly Valves / Hydraulic Actuator Butterfly Valves, LINED BUTTERFLY VALVES, Carbon Steel, Stainless Steel, Monel K500, butterfly valve bs 5155, butterfly valve bs en 593, wafer butterfly valve, lug butterfly valve, flanged butterfly valve, double flanged butterfly valve, flanged butterfly valve dimensions, single flange butterfly valve, double flanged butterfly valve dimensions, double flanged valve, butterfly valve manufacturers, butterfly valve types, 4 butterfly valve dimensions, butterfly valve function, butterfly valve specification, dn400 butterfly valve, Pneumatic Operated Butterfly Valves, butterfly valve 150 psi, butterfly valve 200 psi, butterfly valve 250 psi, butterfly valve 300 psi, butterfly valve 300 lbs, butterfly valve 150 lb, butterfly valve 600 lb, butterfly valve ansi 150, butterfly valve ansi 300, 4 inch butterfly valve, butterfly valve 40 inch, butterfly valve 40mm, butterfly valve 400mm, butterfly valve 50mm, 700 mm butterfly valve, butterfly valve 8 inch, butterfly valve 80mm, butterfly valve 900mm, butterfly valve pn16, butterfly valve pn10, PN10 Butterfly Valves, PN16 Butterfly Valves, butterfly valve asme b16.10, butterfly valve asme b16.34, butterfly valve 1.5 inch, butterfly valve 1 inch, butterfly valve 10 inch, butterfly valve 12 inch, butterfly valve 2 inch, butterfly valve 4 inch, butterfly valve class 150, butterfly valve class 300, butterfly valve class 600, butterfly valve class 900, butterfly valve ansi 600

Enquiry Form

Contact Us

CITIZEN METALS PVT. LTD (EXPORT DIVISION)

Contact Person:MR.RAJENDRA D.JAIN (EXPORT DIRECTOR)
 Address:SHOP NO G/3; HARARWALA BUILDING COMPOUND; ARDESHIRDADY STREET; S.V.P ROAD; MUMBAI-400 004, INDIA
 Phone:+91-22-61905600 (100 Lines)
 Fax:+91-22-61905666
 Email:

 exports@citizenltd.com

 Skype Id:citizenmetal
 Whats App:+91-9820356311

CITIZEN METALS OVERSEAS OFFICES

india@citizenvalves.com
Australia@citizenvalves.com
Egypt@citizenvalves.com
SaudiArabia@citizenvalves.com
Qatar@citizenvalves.com
uae@citizenvalves.com
Turkey@citizenvalves.com
Indonesia@citizenvalves.com
Malaysia@citizenvalves.com
Singapore@citizenvalves.com
Canada@citizenvalves.com
USA@citizenvalves.com
Mexico@citizenvalves.com

Tag : Wafer Type Butterfly Valves/ Lug Type Butterfly Valves/ High Performance Butterfly Valves / Seatless Butterfly Damper / Double Flanged Centric Disc Butterfly Valves / Double Flanged Valves, Lever Operated Butterfly Valves / Gear Operated Butterfly Valves / Electrical Butterfly Valves / Pneumatic Butterfly Valves / Hydraulic Actuator Butterfly Valves, LINED BUTTERFLY VALVES, Carbon Steel, Stainless Steel, Monel K500, butterfly valve bs 5155, butterfly valve bs en 593, wafer butterfly valve, lug butterfly valve, flanged butterfly valve, double flanged butterfly valve, flanged butterfly valve dimensions, single flange butterfly valve, double flanged butterfly valve dimensions, double flanged valve, butterfly valve manufacturers, butterfly valve types, 4 butterfly valve dimensions, butterfly valve function, butterfly valve specification, dn400 butterfly valve, Pneumatic Operated Butterfly Valves, butterfly valve 150 psi, butterfly valve 200 psi, butterfly valve 250 psi, butterfly valve 300 psi, butterfly valve 300 lbs, butterfly valve 150 lb, butterfly valve 600 lb, butterfly valve ansi 150, butterfly valve ansi 300, 4 inch butterfly valve, butterfly valve 40 inch, butterfly valve 40mm, butterfly valve 400mm, butterfly valve 50mm, 700 mm butterfly valve, butterfly valve 8 inch, butterfly valve 80mm, butterfly valve 900mm, butterfly valve pn16, butterfly valve pn10, PN10 Butterfly Valves, PN16 Butterfly Valves, butterfly valve asme b16.10, butterfly valve asme b16.34, butterfly valve 1.5 inch, butterfly valve 1 inch, butterfly valve 10 inch, butterfly valve 12 inch, butterfly valve 2 inch, butterfly valve 4 inch, butterfly valve class 150, butterfly valve class 300, butterfly valve class 600, butterfly valve class 900, butterfly valve ansi 600


OUR SUMMARY:
Review Date
Reviewed Product
Butterfly Valve
Author Rating
5Butterfly ValveButterfly ValveButterfly ValveButterfly ValveButterfly Valve
