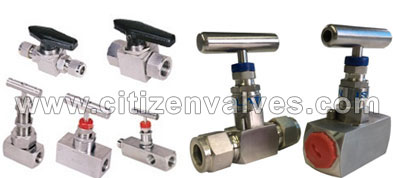

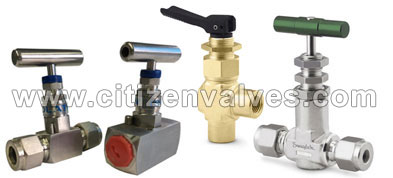

Needle Valves

A needle valve is a type of valve having a small port and a threaded, needle-shaped plunger. It allows precise regulation of flow, although it is generally only capable of relatively low flow rates.

Bar Stock Needle Valves are designed for operation with up to 10000 PSIG (701 Barg) Rating with Complete Standard PTFE stem Packing & Self centering non-rotating stem, Back seated Needle Design, if gives complete sealing security, stem threads above packing protects stem from media

Citizen Metal Dealers & Distributors a range of Needle Valves for use in the Oil, Gas and Petrochemical industries. All of our needle valves are available to NACE MR-01-75 (Latest revision). We are able to provide our needle valve manifolds with plugs, but these are not supplied as standard and must be specified while ordering. Our Needle Valves may be degreased for oxygen service to Air Products AO3 standard, and our 6,000 PSI needle valves can be uprated to 10,000 PSI as per our customers requirements.

Features

  • Bar Stock Needle Valve Design with back seated Blow out Proof.
  • Stem- Ground and thread rolled
  • Hard seat with non rotating stem tip with rotating stem tip regulating & Soft seat.
  • Dust cap on bonnet pusher protects stem threads from external contamination. Packing and sealing are leak
  • Tight for easy operation
  • Low torque operating bar handle
  • Extremely adjustable gland
  • Bonnet lock pin fitted as standard for 6000 PSIG and for high pressure lock plate as per the design required.

Optional Features of Needle Valves

  • Pressure Temperature Chart : Maximum pressure 6000 psi (413 bar) at 100° C
  • PTFE Packing : Maximum pressure 4000 psi (275 bar) at  200° C
  • PTFE packing rated to maximum temperature of  200° C : Maximum pressure 6000 psi (413 bar) at 100° C
  • Grafoil  Packing : Maximum pressure 3300 psi (230 bar) at 450° CNeedle Valve

NEEDLE VALVE

Material Of Construction

  1. Body and Bonnet  : ASTM A 216 GR WCB / ASTM A 351 GR CF8 / CF8M / CF3 / CF3M
  2. Trims : ASTM A 351 GR CF8 / CF8M / CF3 / CF3M
  3. Seat : PTFE
  4. Fasteners : SS 304 / SS 316
  5. Handle :  SS 304 / SS 316 / Carbon Steel
Needle Valve

Specification of Needle Valves

  • Size – 6NB to 25Nb
  • End connection : NPT, BSPT, Socket Weld , Butt Weld, Tube Fitting With Straight and angle pattern
  • Working Pressure : 3000, 6000 & 10000 PSIG
  • Temperature rating : PTFE 232ºC / Grafoil 371ºC
  • Material : S.S.316,S.S.304, C.S, F11
  • Packing : PTFE, Grafoil, Panel Mounting on request
  • All valves are 100% factory Tested at 10000 PSIG
  • Lubrication : Day molly Sulphide



Note : Specifications and Dimensions are subject to change without prior notice

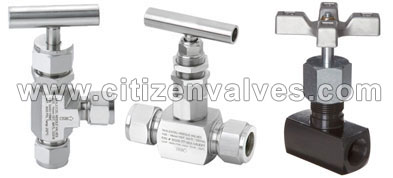

Instrumentation Needle Valve

Instrumentation Needle ValveSpecifications:

  •  Type: Screwed Bonnet Needle Valve & Integral Bonnet
  •  Rating: Up to 6,000 psi @ up to 1200ºF
  •  Stem: Needle tip (Standard), Non routing (Optional)
  •  Packing: Teflon™ & Grafoil
  •  Seat: Integral
  •  Size: 1/8” to 1”
  •  Connections: Tube End
  •  Body Stock: Bar Stoke & Forged Steel
  •  Material: SS, CS and other Material on Request

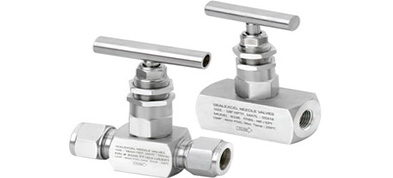

Needle Valve - Integral Bonnet ( NV SERIES )

Hydraulic Pressure & Flow Control Valve, Needle Valve, Integral Bonnet

Features :

Hydraulic Pressure & Flow Control Valve, Needle Valve, Integral Bonnet

Pressure Rating Up to 5000psig (340bar) @ 1000f(380 C)

Hydraulic Pressure & Flow Control Valve, Needle Valve, Integral Bonnet

Temperature Rating from .650F to 4500F(.540C to 2320C) with standard PTFE
                                  packing. and up to 6000F(3150C) with optional PEEK packing

Hydraulic Pressure & Flow Control Valve, Needle Valve, Integral Bonnet

Body Materials available in 316 stainless steel, alley 400, and brass

Hydraulic Pressure & Flow Control Valve, Needle Valve, Integral Bonnet

100% factory tested.

Description

Valves Body Materials

Valves Body Materials

SS 316

Brass

Alloy 400

HandleBarStainless Steel-Stainless Steel
Knob-Black Phenolic-
Packing NutSS 316 / A479Brass 360 / B16Alloy R.405 / B-164
Packing*PTFE (TFE)
Packing RingSS 316 / A479Brass 360 / B16Alloy R-405 / B-164
Stem*VeeSS 316 / A479Brass 360 / B16Alloy R-405 / B-164
Regulating
Soft Seat
Soft Tip*

Kel - F(CTFE)

Panel NutSS 316 / A479Brass 360 / B16SS 316 / A276
Body*SS 316 / A182Brass 377 / B283Alloy R-400 / B564

Needle Valve - Integral Bonnet Bar Stock ( SV SERIES )

Hydraulic Pressure & Flow Control Valves, Needle Valves, Integral Bonnet,

Features :

Hydraulic Pressure & Flow Control Valves, Needle Valves, Integral Bonnet,

Pressure Rating Up to 6000psig (413bar) @ 1000f(380 C)

Hydraulic Pressure & Flow Control Valves, Needle Valves, Integral Bonnet,

Temperature Rating from -650F to 4500F(-540C to 2320C) with standard PTFE
                                  packing. and up to 6000F(3150C) with optional PEEK packing

Hydraulic Pressure & Flow Control Valves, Needle Valves, Integral Bonnet,

Compact and rugged design

Hydraulic Pressure & Flow Control Valves, Needle Valves, Integral Bonnet,

Body Materials available in 316 stainless steel and alloy 400

Hydraulic Pressure & Flow Control Valves, Needle Valves, Integral Bonnet,

100% factory tested.
DescriptionGrade / ASTM Specification
Valve Body Material
 SS 316 Alloy 400
HandleStainless Stell
Packing NutS3 316 / A479Alloy R - 405 / B164
Packing*PTFE (TFE)
Metal GlandSS 316 / A479Alloy R - 405 / B164
Stem*VeeSS 316 / A479Alloy R - 405 / B164
Soft Seat
Soft Tip*Kel - (CTFE)
Body*SS 316 / A479Alloy R-400 / 8164


Needle Valve - Union Bonnet Valve (GB SERIES)

Hydraulic Pressure & Flow Control Valve, Needle Valve, Union Bonnet Valve

Features :

Hydraulic Pressure & Flow Control Valve, Needle Valve, Union Bonnet Valve

Pressure Rating Up to 6000psig (410bar) @ 1000f(380 C)

Hydraulic Pressure & Flow Control Valve, Needle Valve, Union Bonnet Valve

Temperature Rating from -650F to 4500F(-540C to 2320C) with standard PTFE



                                 packing. and up to 12000F(6480C) with optional PEEK packing

Hydraulic Pressure & Flow Control Valve, Needle Valve, Union Bonnet Valve

Body Materials available in 316 stainless steel, alley 400, and brass

Hydraulic Pressure & Flow Control Valve, Needle Valve, Union Bonnet Valve

100% factory tested
DescriptionGrade / ASTM Specification
Valve Body Materials
SS 316Carbon SteelAlloy 400
HandleStainless SteelAluminumstainless Steel
Lock NutSS 316 / A47912114 / A108Allo R-405 / B164
Packing BoltSS316 / A479
Packing GlandSS 316 / A479Alloy R - 405 / B164
Packing Support*Glass Filled PTFE
Packing*PTFE
Bonnet*SS 316 / A47912114 / A108Alloy R - 405 / B164
Stem*Vee TipSS 316 / A479Alloy R - 405 / B164
Boil Tip
Soft Tip
Regulating
Body*SS 316 / A47912114 / a108Alloy 400 / B164

Needle Valve - Rising Plug Valve ( RP SERIES )

Hyrdaulic Pressure & Flow Control Valve, Needle Valve, Rising Plug Valve
Features :

Hyrdaulic Pressure & Flow Control Valve, Needle Valve, Rising Plug Valve

Pressure Rating Up to 6000psig @ 1000F (380 C)

Hyrdaulic Pressure & Flow Control Valve, Needle Valve, Rising Plug Valve

Gauge port available as option

Hyrdaulic Pressure & Flow Control Valve, Needle Valve, Rising Plug Valve

SS316 body as standard

Hyrdaulic Pressure & Flow Control Valve, Needle Valve, Rising Plug Valve

Sour gas service available.

Hyrdaulic Pressure & Flow Control Valve, Needle Valve, Rising Plug Valve

100% factory tested
Description Material / ASTM Specification
  BodyA479 / SS 316
  Bonnet
  Stem
  Tip
  SeatDelrin Standard
  SealViton Standard
  Handle SetStainless Steel
  Locking PlateStainless Steel

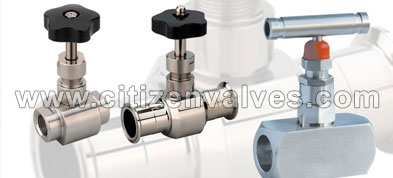

Screwed End SS Needle Valve ( RACER Brand Dealer in India )

Product Details:Screwed End SS Needle Valve

Minimum Order Quantity1 Piece
BrandRACER
ModelScrewed end SS Needle Valve
Size8mm

We offer our clients with a wide variety of Needle Valves that is modified as a variable restrictor. Although, many of the Needle Valves used in fluid power systems are the manually operated. These valves can be used in various systems and can be adjusted to fulfill the requirement of a particular system

Screwed End Stainless Steel Needle Valve ( RACER Brand Dealer in India )

Product Details:

Minimum Order Quantity1 Piece
BrandRACER
ModelScrewed end Stainless Steel Needle Valve
Size8mm To 50mm

We offer our clients with a wide variety of Needle Valves that is modified as a variable restrictor. These valves can be used in various systems and can be adjusted to fulfill the requirement of a particular system. Constructed without a hand wheel, Needle Valves is adjusted to offer a specific rate of flow that provides a desired time of operation for a particular sub system.

Socket End SS Needle Valve ( RACER Brand Dealer in India )

Socket End SS Needle ValveProduct Details:

Minimum Order Quantity1 Piece
BrandRACER
ModelSocket end SS Needle Valve
Size8mm

Needle Valves used in fluid power systems are the manually operated. These valves can be used in various systems and can be adjusted to fulfill the requirement of a particular system.

Socket End Stainless Steel Needle Valve ( RACER Brand Dealer in India )

Product Details:

Minimum Order Quantity1 Piece
BrandRACER
ModelSocket end Stainless Steel Needle Valve
Size8mm To 50mm

Our needle valves are known for their fine and standard make in the market. It allows precise regulation of flow. It is popularly used in flow metering applications, especially when a constant, calibrated, low flow rate must be maintained for some time

Square Body Screwed End Needle Valves ( RACER Brand Dealer in India )

Product Details:

Minimum Order Quantity1 Piece
BrandRACER
ModelNeedle Valves
Size8mm To 25mm

We offer our clients with a wide variety of Needle Valves that is modified as a variable restrictor. Although, many of the Needle Valves used in fluid power systems are the manually operated. These valves can be used in various systems and can be adjusted to fulfill the requirement of a particular system. Constructed without a hand wheel, Needle Valves is adjusted to offer a specific rate of flow that provides a desired time of operation for a particular sub system. Similar in design and operation to the globe valve, needle valves have a long tapered point at the end of the valve stem instead of having a disk. We also provide high pressure [square body] needle valves.

Screwed End Needle Valve ( RACER Brand Dealer in India )

Product Details:

Minimum Order Quantity1 Piece
BrandRACER
ModelNeedle Valves
Size8mm To 50mm

Racer Valves Pvt Ltd is involved in manufacturing and supplying of international quality standard Needle Valve. For fabricating these valves, we use top grade material, which is procured by us from the reliable sources. These high performance Air Pressure Needle Valve can be availed from us according to clients' specifications and demands.

Round Body Socket Weld End Needle Valves ( RACER Brand Dealer in India )

Product Details:

Minimum Order Quantity1 Piece
BrandRACER
ModelSS Needle Valve
Size8mm To 50mm

We offer high quality SS Needle Valve at very affordable market price. These needle valves are manufactured using very high quality raw material and very skillful workers. These can be tailor made according to the specification provided by the customers. These products are in great demand in critical environments such as petrochemical, fluid power, electronics, process machinery and other major industrial applications.

Specification:


  • Material: S.S. Bar Stock 202, 304, 316
  • Size: 8 mm to 50 mm

Square Body Socket Weld End Needle Valves ( RACER Brand Dealer in India )

Product Details:

Minimum Order Quantity1 Piece
OperatedManually
UsedFluid power system
BrandRACER
ModelNeedle Valve
Size8mm To 50mm

We offer our clients with a wide variety of Needle Valves that is modified as a variable restrictor. Although, many of the Needle Valves used in fluid power systems are the manually operated. These valves can be used in various systems and can be adjusted to fulfill the requirement of a particular system.

Socket End Needle Valve ( RACER Brand Dealer in India )

Product Details:

Minimum Order Quantity1 Piece
BrandRACER
ModelSocket end Needle Valve
Size8mm To 50mm

It is popularly used in flow metering applications, especially when a constant, calibrated, low flow rate must be maintained for some time. It contains a thin needle with a point that fits into a conical cup.

Round Body Screwed End Needle Valves ( RACER Brand Dealer in India )

Product Details:

Minimum Order Quantity1 Piece
BrandRACER
ModelNeedle Valve
Size8mm To 50mm

We are the manufacturer, supplier & exporter of ammonia valve for all the industrial systems used in cold storage, ice plants, paper, tyre, chemical & pharmaceutical industries, dairy, breweries, beverages industries, seafood industries, fish, meat & vegetable cold storage.

Air Pressure Needle Valve

Product Details:
MaterialSS
ModelNeedle Valve
SizeCustomised
Citizen Metal involved in manufacturing and supply of international quality standard Air Pressure Needle Valve. For fabricating these valves, we use top grade material, which is procured by us from the reliable sources. These high performance Air Pressure Needle Valve can be availed from us according to clients' specifications and demands.

Bonnet Valve

Quality tested these Bonnet Valve are best in working and offer hassle free installation. These valves are durable and crack resistant. Best quality metal is employed for the manufacturing of Bonneted Valves. These valves are quality ensured by the professionals and offered in the market in safe packing and numerous sizes. These valves are rust proof in frame.

Features:

  • Anti corrosive
  • Efficient working
  • Safe from pressure

Miniature Needle Valve

Product Details:
ModelNeedle Valve
Sizecustomized
We offer our clients with a wide variety of Miniature Needle Valve that is modified as a variable restrictor. Although, many of the Needle Valves used in fluid power systems are the manually operated. These valves can be used in various systems and can be adjusted to fulfill the requirement of a particular system.

Features:
  • Dimensional accuracy
  • Anti-corrosive
  • High strength
Specification:
  • Type- Valve

Ammonia Needle Valve

Product Details:
ModelNeedle Valve
We manufacture suppler & exporter of ammonia valve for all the industrial systems used in cold storage, ice plants, paper, tyre, chemical & pharmaceutical industries, dairy, breweries, beverages industries, seafood industries, fish, meat & vegetable cold storage.

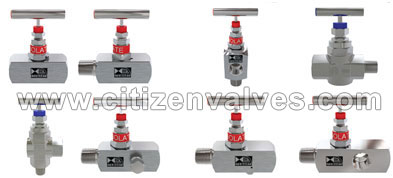

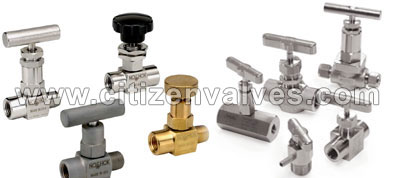

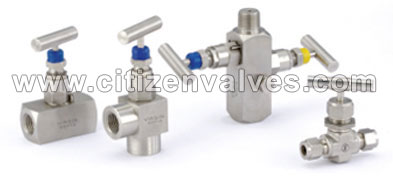

Types of Needle Valves.
Needle Valve F x F

Needle Valve - F x F

High pressure Needle Valve female x Female

Needle Valve - F x F - HP

Hex Needle Valve Female x Female

Hex Needle Valve - F x F

Needle Valve M x F

Needle Valve - M x F

Hex Needle Valve Male x Female

Hex Needle Valve - M x F

Hex Needle Valve with Vent

Hex Needle Valve - Vent

Needle Valve M x M

Needle Valve - M x M

Needle Valve O.D.

Needle Valve - O.D.

Needle Valve Angle

Needle Valve - Angle

Guage Valve - Multiport

Gauge Valve - Multiport

Gauge Valve - Block & Bleed

Gauge Valve - Block & Bleed


Needle Valve - Female x Female

Needle Valve - Female x Female is a type of Needle Valve, with Female Threaded End Connections like NPTF, BSPF or other that is used to connect to Male threads. We manufacture high quality female needle valves upto 6000 psi as per client requirements.



Dwg No. Needle Valve/FF
Needle Valve Process Diagram
Orifice: 4 mm
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre
Needle Valve Female x Female
Needle Valve Female x Female Diagram

PART NO.

Size

A

B

±C

D

Needle Valve/FF/01

1/8"

19

50

65

45

Needle Valve/FF/02

1/4"

22

50

70

50

Needle Valve/FF/03

3/8"

25

55

75

55

Needle Valve/FF/04

1/2"

30

65

85

55

Needle Valve/FF/05

3/4"

36

75

95

65

Needle Valve/FF/06

1"

40

85

100

65

Needle Valve/FF/07

1-1/4"

54

90

120

80

Needle Valve/FF/08

1-1/2"

62

110

130

88

Needle Valve/FF/09

2

72

120

150

95

Needle Valve - Female x Female - High Pressure

High Pressure Female Needle Valve is a type of Needle Valve, with Female Threaded End Connections like NPTF, BSPF or other that is used to connect to Male threads. We manufacture best quality high pressure female needle valves upto 10,000 psi as per client requirements.



Dwg No. Needle Valve/FF/HP
Needle Valve Process Diagram
Orifice: 4 mm
Pressure : up to 10000 psi
Temperature : up to 400°C
All dimensions in Millimetre
High Pressure Needle Valve Female x Female
High Pressure Needle Valve Diagram

PART NO.

Size

A1

A2

B

±C

D

Needle Valve/FF/HP/01

1/8"

38

25

55

70

45

Needle Valve/FF/HP/02

1/4"

38

25

55

75

50

Needle Valve/FF/HP/03

3/8"

42

28

60

80

55

Needle Valve/FF/HP/04

1/2"

48

32

65

85

60

Hex Needle Valve - Female x Female

Hex Female Needle Valve is a type of Needle Valve in Hex body and Female Threaded End Connections like NPTF, BSPF or other that is used to connect to Male threads. We manufacture best quality hex female needle valves upto 6,000 psi as per client requirements.



Dwg No. Needle Valve/H/FF
Needle Valve Process Diagram
Orifice: 4 mm
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre
Hex Needle Valve
Hex Needle Valve Diagram

PART NO.

Size

A

B

C±3

D

Needle Valve/H/FF/01

1/4"

25

55

92

50

Needle Valve/H/FF/02

3/8"

25

60

92

55

Needle Valve/H/FF/03

1/2"

32

75

98

55

Needle Valve/H/FF/04

3/4"

36

75

114

65

Needle Valve - Male x Female

Needle Valve - Male x Female is a type of Needle Valve, with Male Threaded Connection like NPTM or BSPM as Inlet and Female Threaded Connection like NPTF or BSPF as Outlet. We manufacture top quality male x female needle valves upto 6000 psi or as per client requirements.



Dwg No. Needle Valve/MF
Needle Valve Process Diagram
Orifice: 4 mm
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre
Needle Valve Male x Female
Needle Valve Male x Female Diagram

PART NO.

Size

A

B

±C

D

Needle Valve/MF/01

1/8"

19

50

65

45

Needle Valve/MF/02

1/4"

22

50

70

50

Needle Valve/MF/03

3/8"

25

55

75

55

Needle Valve/MF/04

1/2"

30

65

85

55

Needle Valve/MF/05

3/4"

36

75

95

65

Needle Valve/MF/06

1"

40

85

100

65

Needle Valve/MF/07

1-1/4"

54

90

120

80

Needle Valve/MF/08

1-1/2"

62

110

130

88

Needle Valve/MF/09

2

72

120

150

95

Hex Needle Valve - Male x Female

Hex Needle Valve - Male x Female is a type of Needle Valve, with a Hex Body and Male Threaded Connection like NPTM or BSPM as Inlet and Female Threaded Connection like NPTF or BSPF as Outlet. We manufacture high quality male x female hex needle valves upto 6000 psi or as per client requirements.



Dwg No. Needle Valve/H/MF
Needle Valve Process Diagram
Orifice: 4 mm
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre
Hex Needle Valve Male x Female
Hex Needle Valve Male x Female Diagram

PART NO.

Size

A

B

±C

D

Needle Valve/H/MF/01

1/4"

25

60

92

50

Needle Valve/H/MF/02

3/8"

25

65

92

55

Needle Valve/H/MF/03

1/2"

32

80

98

55

Needle Valve/H/MF/04

3/4"

36

80

114

65

Hex Needle Valve - Vent

Hex Needle Valve - Vent is a type of Needle Valve, with a Hex Body and Male Threaded Connection like NPTM or BSPM as Inlet and Female Threaded Connection like NPTF or BSPF as Outlet with a Vent. We manufacture best quality hex needle valve vent with working pressure upto 6000 psi or as per client requirements.



Dwg No. Needle Valve/HV/MF
Needle Valve Process Diagram
Orifice: 4 mm
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre
Hex Needle Valve with Vent
Hex Needle Valve with Vent Diagram

PART NO.

Size

A

B

±C

D

Needle Valve/HV/MF/01

1/4"

25

65

92

50

Needle Valve/HV/MF/02

3/8"

25

70

92

55

Needle Valve/HV/MF/03

1/2"

32

85

98

55

Needle Valve/HV/MF/04

3/4"

36

85

114

65

Needle Valve - Male x Male

Needle Valve - Male x Male is a type of Needle Valve, with Male Threaded End Connections like NPTM, BSPM or other that is used to connect to Female threads. We manufacture top quality male needle valves upto 6000 psi as per client requirements.



Dwg No. Needle Valve/MM
Needle Valve Process Diagram
Orifice: 4 mm
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre
Needle Valve Male x Male
Needle Valve Male x Male Diagram

PART NO.

Size

A

B

±C

D

Needle Valve/MM/01

1/8"

19

50

65

45

Needle Valve/MM/02

1/4"

22

50

70

50

Needle Valve/MM/03

3/8"

25

55

75

55

Needle Valve/MM/04

1/2"

30

65

85

55

Needle Valve/MM/05

3/4"

36

75

95

65

Needle Valve/MM/06

1"

40

85

100

65

Needle Valve/MM/07

1-1/4"

54

90

120

80

Needle Valve/MM/08

1-1/2"

62

110

130

88

Needle Valve/MM/09

2

72

120

150

95

Needle Valve - O.D.

Needle Valve - O.D. is a type of Needle Valve, with Double Ferrule Compression fittings on both the ends which is used to connect to Tubes. We manufacture high quality ferrule type needle valves upto 6000 psi or as per client requirements.



Dwg No. Needle Valve/OD
Needle Valve Process Diagram
Orifice: 4 mm
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre
Needle Valve Ferrule Type
Needle Valve Ferrule Type Diagram

PART NO.

Size

A

B

±C

D

Needle Valve/OD/01

1/8"

20

50

65

45

Needle Valve/OD/02

1/4"

22

50

70

50

Needle Valve/OD/03

3/8"

22

55

75

55

Needle Valve/OD/04

1/2"

22

65

85

55

Needle Valve/OD/05

3/4"

28

75

95

65

Needle Valve/OD/06

1"

36

85

100

65

Needle Valve/OD/07

1-1/4"

45

90

120

80

Needle Valve/OD/08

1-1/2"

52

110

130

88

Needle Valve/OD/09

2

62

120

150

95

Needle Valve - Angle

Needle Valve - Angle is a type of Needle Valve, with Female Threaded End Connections like NPTF, BSPF or other that is used to connect to Male threads at 90° angle. We manufacture precise angle needle valves upto 6000 psi or as per client requirements.



Dwg No. Needle Valve/ANG
Needle Valve Process Diagram
Orifice: 4 mm
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre
Needle Valve Angle
Needle Valve Angle Diagram

PART NO.

Size

A

B

±C

D

Needle Valve/ANG/01

1/8"

26

26

70

45

Needle Valve/ANG/02

1/4"

32

32

75

50

Needle Valve/ANG/03

3/8"

36

36

80

55

Needle Valve/ANG/04

1/2"

42

42

90

55

Needle Valve/ANG/05

3/4"

50

50

100

65

Needle Valve/ANG/06

1"

56

56

105

65

Needle Valve/ANG/07

1-1/4"

62

62

125

80

Needle Valve/ANG/08

1-1/2"

72

72

135

88

Needle Valve/ANG/09

2

82

82

155

95

Gauge Valve - Multiport

Dwg No. IIGV/MP
Gauge Valve Process Diagram

Orifice : 4 mm

Approximate Weight : 0.90 kg

Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre
Gauge Valve Multiport
Gauge Valve Multiport Female x Female diagramGauge Valve Multiport Male x Female Diagram

PART NO.

END CONNECTIONS

DIMENSION



P

P1

A

±C

D

E

IIGV/MP/01

1/2" Male

1/2" Female

115

84

30

55

IIGV/MP/02

1/2" Male

3/4" Female

115

84

30

55

IIGV/MP/03

1/2" Male

3/4" Female

115

84

38

55

IIGV/MP/04

1/2" Male

1/2" Female

115

84

30

55

IIGV/MP/05

1/4" Female

1/4" Female

90

62

22

40

IIGV/MP/06

1/2" Female

1/2" Female

115

84

30

55

IIGV/MP/07

1/2" Female

1/2" Extended

215

84

30

55

IIGV/MP/08

3/4" Female

1/2" Extended

215

84

38

55

Gauge Valve - Block & Bleed

Dwg No. IIGV/BB
Gauge Valve Block & Bleed Process Diagram

Orifice : 4 mm

Approximate Weight : 0.75 kg

Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre
Gauge Valve Block and Bleed
Gauge Valve Block and Bleed Female x Female diagramGauge Valve Block and Bleed Male x Female diagram

PART NO.

END CONNECTIONS

DIMENSION



P

P1

A

±C

D

E

IIGV/BB/01

1/4" Male

1/4" Female

70

62

25

45

IIGV/BB/02

3/8" Male

3/8" Female

70

62

25

45

IIGV/BB/03

1/2" Male

1/2" Female

83

84

30

55

IIGV/BB/04

3/4" Male

3/4" Female

85

84

38

60

IIGV/BB/05

1/4" Female

1/4" Female

70

62

25

45

IIGV/BB/06

3/8" Female

3/8" Female

70

62

25

45

IIGV/BB/07

1/2" Female

1/2" Female

75

84

30

55



Needle Valves Materials

Stainless Steel Needle Valves
Stainless Steel Needle Valves Suppliers Dealers Distributors in India

Needle Valves, Stainless Steel Forged Steel 304 Valve, Stainless Steel F321 Needle Valves, F347 Needle Valves, SS High Pressure Needle Valves, Class 150, 300, 600, 900, 1/2 inch stainless steel Needle Valves, 1/2" stainless steel Needle Valves, 3/4 Size Needle Valves, 4 inch stainless steel Needle Valves, Industrial Needle Valves, Stainless Steel 316 Needle Valves Suppliers in India... Read more

Alloy Steel Needle Valves
Alloy Steel Needle Valves Suppliers Dealers Distributors in India

Alloy Steel Needle Valves, Chrome Moly Alloy A217 / SA217 Cast Valves, WC9 Alloy Steel Needle Valve, 4 Inch, 2500#, A350 LF3, A352 LC3, A182 F5A/F5, A217 C5, A182 F9, A217 C12, A182 F11, A217 WC6, A182 F22, A217 WC9, A182 F91, A217 C12A, 10 Inch, RF, WC9 Gate Valve, PSB, 12 Inch, 2500 LB, Alloy Steel Valves Dealers & Distributors in India.. Read more

Carbon Steel Needle Valves
Carbon Steel Needle Valves Suppliers Dealers Distributors in India

Needle Valves, Carbon Steel Needle Valves, Carbon Steel Valve Material, ASTM A350 LF2 Needle Valves, Carbon Steel ASTM A106 Needle Valves, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34 ASTM A105N Needle Valves, Cast Carbon Steel Needle Valves, API 600 Cast Steel Needle Valves, Forged Carbon Steel Needle Valves Exporters & Suppliers In India.. Read more

Hastelloy Needle Valves
Hastelloy Needle Valves Suppliers Dealers Distributors in India

Hastelloy Needle Valves, Hastelloy C276 Needle Valves, Hastelloy C22 Needle Valves, Hastelloy B2 Needle Valves, Hastelloy C276/C22 Valves, ASTM B 435 Hastelloy X Needle Valves, Hastelloy B2 Needle Valves, ASME B16.34 Needle Valves, UNS N10665 Hastelloy B2 Needle Valves, UNS N10276 Hastelloy C276/C22 Manufacturer / Suppliers in Mumbai India. Read more

Alloy 20 Needle Valves
Alloy 20 Needle Valves Suppliers Dealers Distributors in India

Wholesale Various High Quality Industrial Needle Valves Products from Citizen Metals, Largest Suppliers of Alloy 20 Needle Valves, Alloy 20 Needle Valves Dealers, Alloy 20 Check Valve, UNS N08020 Alloy 20 Needle Valves, Alloy 20 Needle Valves Suppliers, Alloy 20 Needle Valves Manufacturer, Alloy 20 Needle Valves Manufacturers in India. Read more

Nickel 200/201 Needle Valves
Nickel 200/201 Needle Valves Suppliers Dealers Distributors in India

We supply broad range of Nickel 200/201 Needle Valves, Leading Suppliers of Nickel 200/201 Valves, Ni-200 Needle Valves, Ni-201 Needle Valves, Uns N02200 Needle Valves, Uns N02201 Needle Valves, Nickel 200/201 Needle Valves Dealers, Needle Valves Suppliers, Nickel 200/201 Needle Valves Manufacturer, Nickel 200/201 Needle Valves Manufacturers in India. Read more

Monel® Needle Valves
Monel 400 Needle Valves Suppliers Dealers Distributors in India

we supply Monel 400 Valves with high quality and best affordable rate., Monel 400 Needle Valves, Monel DIN 2.4360, 2.4375 Needle Valves, Monel UNS N04400 Needle Valves, Monel UNS N05500 Needle Valves, Monel Needle Valves, Monel K500 Needle Valves, Monel 400 Needle Valves Distributors in India... Read more

Duplex Steel Needle Valves
Duplex Steel Needle Valves Suppliers Dealers Distributors in India

We specialize in the oil & gas industries and offer specialty Duplex Steel Needle Valves, UNS S31803 Needle Valves Suppliers in India, DIN 1.4410 Super Duplex Steel Needle Valves, ASME B 16.10 UNS S32760 Needle Valves, ASTM A351 Duplex Steel UNS S31803, ASME SA494 Duplex Steel UNS S31803, Duplex Steel UNS S31803 Class 900 Needle Valves Exporters in India. Read more

254 Smo Needle Valves
254 Smo Needle Valves Suppliers Dealers Distributors in India

Needle Valves, 254 Smo Needle Valves, Cryogenic 254 SMO gate valve, ASME B16.34 SS 254 SMO Needle Valves, Stainless Steel 254 SMO Needle Valves, ASTM A351 SS SMO 254 Needle Valves, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34, 254 SMO Industrial Valves, Stainless Steel 254SMO Needle Valves Suppliers in India.. Read more

904l Stainless Steel Needle Valves
904l Stainless Steel Industrial Needle Valves Suppliers Dealers Distributors in India

Needle Valves, 904l Stainless Steel Needle Valves, 904l Stainless Steel Industrial Needle Valves, SS 904L ASTM A351 Needle Valves, ASME B 16.10 Needle Valves, ASME B 16.5, ASME B 16.25, ASME B 16.34, UNS N08904, 1.4539, BS 904S13, JIS SUS 890L Needle Valves , 904l Stainless Steel Needle Valves, High Pressure 904l Stainless Steel Needle Valves Exporters in India.. Read more

Inconel Needle Valves
Inconel Needle Valves Suppliers Dealers Distributors in India

Needle Valves, Inconel Needle Valves, Inconel 600 Needle Valves, INCONEL WERKSTOFF NR. 2.4816 Needle Valves, Inconel 600 N06600 Needle Valves, Inconel 2.4816 Needle Valves, UNS N06600 Needle Valves, Inconel 600 Needle Valves, API 600/ BS1414, ALLOY 600 Needle Valves, ASME B 16.5 Needle Valves Dealers in India.. Read more

Titanium Needle Valves
Titanium Needle Valves Suppliers Dealers Distributors in India

We are the one of the top most manufacturers of different types of Industrial Needle Valves, We have a large inventory of Needle Valves in a variety of options., Largest Suppliers of Titanium Gr2(B367 Gr C2) Needle Valves, Titanium Gr3(B367 Gr C3) Needle Valves, Titanium TA1, TA2, Titanium Gr.5, Gr6 Needle Valves,Gr7 ,Gr12, Titanium TC4,TA9,TA10 Dealers in India.. Read more

Brass Needle Valves
Brass Needle Valves Suppliers Dealers Distributors in India

Brass Needle Valves, brass Needle Valves price list in India, brass Needle Valves 1/2, 1 inch brass Needle Valves, brass Needle Valves 3/4, brass Needle Valves price list india, 3 inch brass check valve, brass Needle Valves price list, 1/2 inch Needle Valves, 4 brass Needle Valves, 3/4 brass Needle Valves, 4 inch brass Needle Valves, 2 inch brass Needle Valves Read more

Copper Needle Valves
Copper Needle Valves Suppliers Dealers Distributors in India

Experience Of 50 Years In Copper Needle Valves, We have a large inventory of Copper Needle Valves, Copper 90/10 Needle Valves, Copper 70/30 Needle Valves, Copper Cu-Ni 70/30 Needle Valves, Copper 90/10 Needle Valves Dealers, Copper 70/30 Needle Valves Suppliers, Copper Cu-Ni 70/30 Needle Valves Manufacturer, Copper Cu-Ni 90/10 Needle Valves Manufacturers in India. Read more

Needle Valves Others

Project Reference

PROJECT

YEAR

Project : Water treatment plant at Malawi, AFRICA.

1984

Project : Ambatale Raw Water Intake Pump Station, SRILANKA.

1985

Project :  Synthetic Fibre Plant, INDONESIA.

1991

Project  :     Water  Treatment  Plant  for  Phoenix-II  Paper plant, THAILAND.

1992

Petron Civil Engineering Ltd., Bombay

1992

Project : Water Supply Project, MAURITIUS.

Paharpur Cooling Towers Ltd., Calcutta Project :  National Petrochemical Co., IRAN

1993

Ion Exchange India Ltd., Project: In INDONESIA

1993

GEPL Holdings Pte. Ltd., SINGAPORE. Project : In PAKISTAN

1997

UEM Inc., USA

1998

Project: Shah Alam Sewage treatment plant, MALAYSIA

Environmental Engineering Services (Asia)Pte. Ltd., Singapore.

1999

Project : Taman Plangi Indah Phase-1 Sewage Treatment Plant, MALAYSIA.

Gulfar Engineering & Contracting LLC, OMAN.
Project: Salalah Sewage Pumping plant , Muscat, OMAN. CONULTANTS : Parsons Engineering Science, Inc

2000

Risterm Negoce SA, Belgium.
Project : Sappi Paper Mills , BELGIUM.

2004

Saudi Berkefeld Filter Co. Ltd., Riyadh, Saudi Arabia Project : Al-Qurayat SWT and Rafha  wastewater  treatment Plant, SAUDI ARABIA
CONSULTANTS : Tawafiq Engineering  Consultant  office and Al-Tawfeek Office, SAUDI ARABIA  (Through   Jash Schutte Industrie service  GmbH,Germany
)

2004

Metax Engineering Corporation, Singapore
Project : Kim Chuan STW – Contract 2, SINGAPORE

2004

A. K. Almoayed Group WLL, Baharain
Project : #49905, Pumping Station E4, Habib Awachi, BAHRAIN.
CONSULTANTS: Watson Khonji Consulting Engineers, Bahrain.

2004

Satria Damai SDN BHD, Malaysia Project : SMART, MALAYSIA.
CONSULTANTS : MM Consultants SDN. BHD.

2004

Risterm Negoce, Belgium
Project : Sappi Paper mills , BELGIUM

2004

AVM International Ltd. A/S, Norway Project : Yapisal Erzurum, TURKEY
CONSULTANTS: ER-GE Design Engg. Consultant & Trade Ltd. Co., Istanbul

2005

Stealth valve & Controls Ltd., Canada
Project : Seymour- Capilano Filtration Project, Greater Vancouver water District., CANADA
CONSULTANTS : SSBV Consultants Inc.,

2005

Comfort Rich Enterprises Limited , Hongkong
Project : WSD Tuen  Mun Stage 5 Project, HONGKONG

2005

ROFI UK Ltd./ Syl-Mac International
Project : Erbil-Ifraz water project, IRAQ by Fluor AMEC LLC, Dubai.

2005

ROFI UK Ltd./ Syl-Mac International
Project : Nasiriya Water Project, IRAQ by Fluor AMEC LLC, Dubai

2005

ROFI UK Ltd./ Syl-Mac International
Project : Balad Rooz Water Project, IRAQ by Fluor AMEC LLC, Dubai

2005

Degremont.,
Project : Bangkhen Water Treatment Plant at Bangkok, Contract No. G-BK-7, THAILAND
CONSULTANTS: Nihon Suideo Consultants Co. Ltd. In Associated with Team Consulting Engineering and Management Co. Ltd., Thailand.

2005

Stealth valve & Controls Ltd., Canada
Project : Seymour- Capilano Filtration Project, Greater Vancouver water District., CANADA
CONSULTANTS : SSBV Consultants Inc.,

2005

Metax Engineering Corporation Limited, Singapore. Project – Tuas pumping station of PUB, SINGAPORE

2006

UEM India Limited, N. Delhi, Project : Pig farm project, MEXICO

2006

AVM International Limited, Norway Project : Water treatment plant, GHANA

2006

Spaans Babcock Limited, England, Project :- Liandysul WWTW

2006

Comfort Rich Enterprises Limited, Hong Kong, Project : Shatin project, HONGKONG

2006

ROFI UK Ltd. UK for Fluor AMEC LLC , Project :  Nasiriya Water Project, IRAQ.

2006

Kruger A/S Denmark.
Project : Oset Water Treatment Plant, Oslo, NORWAY

2006

Perrier  Sorem,  France, Project: - Paul Bert, FRANCE.

2007

Ebara Corporation Japan,
Project: - Astana City project, KAZAKHSTAN. CONSULTANTS : NJS Consultants Co. Ltd.

2007

Environmental engineering Services, Oman,
Project: - Nizwa Sewerage Treatment Plant, OMAN. CONSULTANTS : National Engineering Services Pakistan & Partners.

2007

The National Co. For Mech. & Elect. Works Ltd., Kuwait Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2007

Aqua Tech International, Oman, / Contractors Technical Services Co. LLC, Oman.
Project: Mukhaizana MVC Project, OMAN

2007

Shutte GmbH, Germany CONSULTANTS : UHDE, Germany

2007

Paramount Limited, Baroda
Project: Petrotrin Refinery Project, TRINIDAD & TOBAGO.
CONSULTANTS : Bechtel.



2007

Syl Mac International, Mumbai.
Project : Cheung Sha catchwater, HONG KONG.

2007

A.   K. Almoayed Group WLL, Baharain,
Project : A4 pumping station, BAHRAIN by Habib Awachi
CONSULTANTS: Watson Khonji Consulting Engineers, BAHRAIN

2007

A.   K. Almoayed Group WLL, Baharain,
Project : SAAR Sewarage Scheme BAHRAIN, by Habib Awachi,
CONSULTANTS: Watson Khonji Consulting Engineers, BAHRAIN

2007

Comfort Rich Enterprises Limited, Hong Kong, Project : Tai Po project , HONGKONG

2007

Perrier Sorem, France,
Project :- Cyco FOS – 480 MW Power project, FRANCE by Alstom, France.

2007

Comfort Rich, Hong Kong.
Project: - Kwun Tong Pumping Station, HONG KONG

2007

Spanns Babcock, U.K.
Project: Thames Water Supply Project. CONSULTANTS :

2007

Comfort Rich Supplies Co., Ltd, Hong Kong.
Project : Shatin STW Replacement project, HONG KONG

2007

Syl Mac International, Mumbai. Project : HONG KONG

2007

Project : Cheung Sha catchwater, HONG KONG.

2007

Ryoden Engineering Co., Ltd., Hong Kong.
Project : Nam Sang Wai SPS, Sha Po SPS, Kam Tin SPS, HONG KONG.
CONSULTANTS :

2008

Ryoden Engineering Co., Ltd., Hong Kong.
Project : Nam Sang Wai SPS, Sha Po SPS, Kam Tin SPS, HONG KONG
CONSULTANTS :

2008

Comfort Rich Supplies Co., Ltd, Hong Kong.
Project : Sheung Wan Storm water PS. HONG KONG.

2008

WB Engineering & Consultancy Pte. Ltd., China Project : Punggol Serangoon PS, Intake Structure & Ancillary Works, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2008

Comfort Rich Supplies Co., Ltd, Hong Kong. Project : Shatin Storm water PS. HONG KONG.

2008

WB Engineering & Consultancy Pte. Ltd., CHINA. Project : ULU Pandan Tidal gate, SINGAPORE. CONSULTANTS :

2008

Star Steel International LLC, Dubai Project : Rebar Mill, Dubai.
Consultant : MECON

2008

Project : Astana Water Supply and Sewerage Project KAZAKHSTAN.
CONSULTANTS : NJS Consultants Co. Ltd.

2008



WB Engineering & Consultancy Pte. Ltd., China Project : Punggol Serangoon PS, Intake Structure & Ancillary Works, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2008

WB Engineering & Consultancy Pte. Ltd., China Project : SINGAPORE.

2008

Dutco Tennant LLC, Dubai
Project : NASS Contracting Co. WLL, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2008

Dutco Tennant LLC, Dubai
Project : NASS Contracting Co. WLL, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2008

Ebara Corporation Japan,
Project: - Astana City project, KAZAKHSTAN. CONSULTANTS : NJS Consultants Co. Ltd.

2008

A.K. Almoayed Group WLL, Baharain, Project : A1 Pumping Station, BAHRAIN Al Hassanain mechanical Co.,
Consultant : Watson Khonji .

2008

Degremont Limited, Gurgaon, India
Project: - Nhon Trach Water Supply Project, VIATNAM CONSULTANTS : Nippon Koei Co.Ltd., JAPAN and Nihon Suido Consultant Co., Ltd., VIATNAM

2008

Global Engineering Systems FZ, Sharjah, UAE Project: -
CONSULTANTS :

2009

Comfort Rich Supplies Co., Ltd, Hong Kong. Project: Ma On Shan SPS, HONG KONG CONSULTANTS :

2009

Kharafi National KSC (Closed), Kuwait
Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2009

Kharafi National KSC (Closed), Kuwait
Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2009

Spanns Babcock Ltd., U.K.
Project: Howdon WWTW Project UK CONSULTANTS :

2009

Spanns Babcock Ltd., U.K..
Project: Thames Water Supply Project UK CONSULTANTS :

2009

Astra Marketing Limited, Bangkok, Thailand.
Project: MWA’s Raw Water Pumping Station No. 1 at Bang Khen WTP, Bangkok, THAILAND.
CONSULTANTS :

2009

Gulf Petrochemical Services & Trdg. LLC, Oman
Project: C-170, Rushtaq Sewage Pumping Station, OMAN CONSULTANTS :

2009

Lutz-Jesco Middle East FZE, Sharjah, U. A. E. Project:
CONSULTANTS :

2009

PLS France for Degremont Ltd., France.
Project: Al Dur Independent Water & Power Project, BAHRAIN
CONSULTANTS :

2009

PVT Engineering SDN BHD, Malaysia Project: Kepala Batas, MALAYSIA CONSULTANTS : RPM Engineers SDN BHD

2009

WB Engineering & Consultancy Pte. Ltd., China
Project : Contract 6, Punggol Serangoon Reservior Scheme, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2009

Dutco Tennant LLC, Dubai
Project : Shk Khalifa Highway Project, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2009



Needle Valves Price

2 inch needle valve price
US $10-780 / Piece
needle valve price list in india
US $10-780 / Piece
needle valve price list 2016
US $10-780 / Piece
needle valve price list 2015 in india
US $10-780 / Piece
3 inch needle valve price india
US $10-780 / Piece
6 inch needle valve price
US $10-400 / Piece
4 inch needle valve price
US $10-780 / Piece
needle valve price list 2017
US $10-780 / Piece
Latest needle valve price list
US $10-780 / Piece

Tag : needle valve, needle valve price list, Screwed End SS Needle Valve, Air Pressure Needle Valve, Screwed End Needle Valve, Bonnet Valve, Miniature Needle Valve, Ammonia Needle Valve, Instrumentation Needle Valve, Round Body Socket Weld End Needle Valves, Round Body Screwed End Needle Valves, Socket End Needle Valve, Square Body Socket Weld End Needle Valves, Screwed End Stainless Steel Needle Valve, Socket End SS Needle Valve, Socket End Stainless Steel Needle Valve, Square Body Screwed End Needle Valves, needle valve manufacturers in india, needle valve manufacturers in pune, needle valve manufacturers in chennai, needle valve manufacturers in ahmedabad

Needle Valves Ready Stock Available

needle valve bs 5155
needle valve bs en 593
wafer needle valve
lug needle valve
flanged needle valve
double flanged needle valve
flanged needle valve dimensions
single flange needle valve
double flanged needle valve dimensions
double flanged valve
needle valve manufacturers
needle valve types
4 needle valve dimensions
needle valve function
needle valve specification
dn400 needle valve
Pneumatic Operated Needle Valves
needle valve 150 psi
needle valve 200 psi
needle valve 250 psi
needle valve 300 psi
needle valve 300 lbs
needle valve 150 lb
needle valve 600 lb
needle valve ansi 150
needle valve ansi 300
4 inch needle valve
needle valve 40 inch
needle valve 40mm
needle valve 400mm
needle valve 50mm
700 mm needle valve
needle valve 8 inch
needle valve 80mm
needle valve 900mm
needle valve pn16
needle valve pn10
PN10 Needle Valves
PN16 Needle Valves
needle valve asme b16.10
needle valve asme b16.34
needle valve 1.5 inch
needle valve 1 inch
needle valve 10 inch
needle valve 12 inch
needle valve 2 inch
needle valve 4 inch
needle valve class 150
needle valve class 300
needle valve class 600
needle valve class 900
needle valve ansi 600
needle valve price list
needle valve 10000 psi
needle valve 15000 psi
needle valve 20000 psi
needle valve 6000 psi
needle valve 60000 psi
needle valve 2000 psi
needle valve 2500 psi
needle valve 4000 psi
needle valve 5000 psi
needle valve class 800
needle valve class 3000
needle valve class 2500
needle valve class 6000
needle valve flanged
needle valve flanged end
needle valve flange type
needle valve ansi
1/8 needle valve
1/2 brass needle valve
brass needle valve 1/4
1/2" npt needle valve
1/4 inch needle valve
needle valve api 602
needle valve 6mm
needle valve dn50
F304 Needle Valve
needle valve 1/2
needle valve 1/4
needle valve 1/4 npt
needle valve 2 inch
3 way needle valve
3/4" needle valve
needle valve manufacturers
high pressure needle valves
autoclave needle valve
autoclave high pressure needle valves
parker needle valve catalog
low pressure needle valve
high pressure needle valve manufacturers
parker hydraulic needle valve
needle valve manufacturers in india
needle valve suppliers in chennai
needle valve manufacturers in pune
needle valve price list
needle valve for pressure gauge
needle valve for water line
needle valve for water
brass needle valve 1/8 npt
brass needle valve flow control
brass needle valve for propane
needle valve manufacturers in ahmedabad
needle valve price list india
needle valve dimensions
needle valve design standard
needle valve specification
water flow control needle valve
needle valve size range
304 ss needle valve
ASME B16.34 Needle Valve
carbon steel needle valve
3/4 Inch Needle Valve
5000PSI Needle Valve
needle valve swagelok
needle valve flow control
needle valve parker

Tag : needle valve, needle valve price list, Screwed End SS Needle Valve, Air Pressure Needle Valve, Screwed End Needle Valve, Bonnet Valve, Miniature Needle Valve, Ammonia Needle Valve, Instrumentation Needle Valve, Round Body Socket Weld End Needle Valves, Round Body Screwed End Needle Valves, Socket End Needle Valve, Square Body Socket Weld End Needle Valves, Screwed End Stainless Steel Needle Valve, Socket End SS Needle Valve, Socket End Stainless Steel Needle Valve, Square Body Screwed End Needle Valves, needle valve manufacturers in india, needle valve manufacturers in pune, needle valve manufacturers in chennai, needle valve manufacturers in ahmedabad

Enquiry Form

Contact Us

CITIZEN METALS PVT. LTD (EXPORT DIVISION)

Contact Person:MR.RAJENDRA D.JAIN (EXPORT DIRECTOR)
 Address:SHOP NO G/3; HARARWALA BUILDING COMPOUND; ARDESHIRDADY STREET; S.V.P ROAD; MUMBAI-400 004, INDIA
 Phone:+91-22-61905600 (100 Lines)
 Fax:+91-22-61905666
 Email:

 exports@citizenltd.com

 Skype Id:citizenmetal
 Whats App:+91-9820356311

CITIZEN METALS OVERSEAS OFFICES

india@citizenvalves.com
Australia@citizenvalves.com
Egypt@citizenvalves.com
SaudiArabia@citizenvalves.com
Qatar@citizenvalves.com
uae@citizenvalves.com
Turkey@citizenvalves.com
Indonesia@citizenvalves.com
Malaysia@citizenvalves.com
Singapore@citizenvalves.com
Canada@citizenvalves.com
USA@citizenvalves.com
Mexico@citizenvalves.com

Tag : needle valve, needle valve price list, Screwed End SS Needle Valve, Air Pressure Needle Valve, Screwed End Needle Valve, Bonnet Valve, Miniature Needle Valve, Ammonia Needle Valve, Instrumentation Needle Valve, Round Body Socket Weld End Needle Valves, Round Body Screwed End Needle Valves, Socket End Needle Valve, Square Body Socket Weld End Needle Valves, Screwed End Stainless Steel Needle Valve, Socket End SS Needle Valve, Socket End Stainless Steel Needle Valve, Square Body Screwed End Needle Valves, needle valve manufacturers in india, needle valve manufacturers in pune, needle valve manufacturers in chennai, needle valve manufacturers in ahmedabad


OUR SUMMARY:
Review Date
Reviewed Product
Needle Valve
Author Rating
5Needle ValveNeedle ValveNeedle ValveNeedle ValveNeedle Valve
