Introduction to Flush Bottom Valve, flush bottom valve design, flush bottom valve application, ram type flush bottom valve, flush bottom valve working principle, flush bottom ball valve, y type flush bottom valve, flush bottom valve manufacturer in india, flush bottom tank valves manufacturers, flush bottom valve manufacturers in mumbai

Flush Bottom Valve: Special Purpose Valve

Introduction to Flush Bottom Valve

Flush Bottom Valve  is a special purpose valve, which is used in piping, reactors and vessels to drain out abrasive, Slurry, Viscous Material or Semi Solid Media.

This type of valve is available in the size from 15 MM to 150 MM with different material of construction like Cast Iron, Cast Steel, SS 304 / 316 or any special alloy to suit user requirements. The valves seating are Teflon / Neoprene / Viton depending on the process.

This type of valve is attached to the vessels on pad type nozzle. The disks in closed position match with the bottom of the vessel or piping leaving no room for hold up or stagnation.

There are two types of flush bottom valves.

  • Valves with disk opening into the tanks.
  • Valves with disk into the valve

In the first case the stem pushes the disk into the tank to drain the liquid. This type cannot be used when there are any internals which restrict the movement of the disk. The drain of the material could be effected completely. In the second case, the disk gets pulled down into the valve effecting the discharge of material.

There are normally two type of disk design available, the plug type and the ram type.

Flush bottom plug type valve

Flush bottom plug typevalve

Flush bottom ram type valve

Flush bottom ram type valve

Flush bottom valve partsNormally, the inlet size of a standard flush bottom valve is one size higher than that of the outlet size. There are special constructions possible with both sizes same. The outlet port is at an angle to the inlet port. Normally 45 or 60 degrees deviation is provided. The end connections are normally flanged. However, smaller size sample/drain valves have been developed with welding end at inlet to withstand higher pressures. The maximum rating available at present for flanged valve is ANSI 300 lbs.

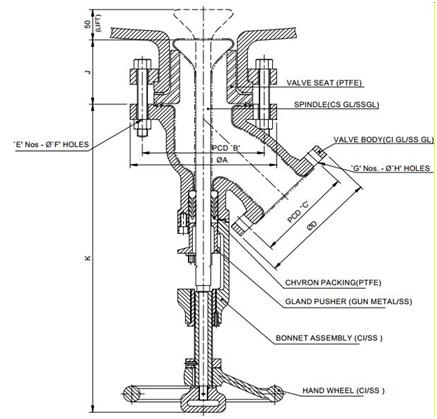

Parts of Flush Bottom valve:

Flush bottom valve parts

The parts of the flush bottom valve are identical to that of a globe valve and the closing and opening actions are also similar. The shut off is achieved by disk closing against the body seat.

Jacketed flush bottom valves are also possible depending on the service. The disk and seat also could be machined to such accuracy to serve the vacuum duty as well.

SchuF Brand Valve Dealers in India

flush bottom valve design

Flush Piston Bottom Outlet Valves - invented by SchuF

SchuF is the inventor of the Piston Bottom Outlet Valve (Patent received in 1926). They are most commonly used to quickly drain or inject media into or out of vessels, tanks or reactors.

SchuF Brand : flush bottom valve application

Applications for Piston/Ram Valves

Piston or Ram valves are most commonly used for dead space free draining and feeding of vessels, reactors and pipelines. They are particularly suited to highly viscous materials, or where rapid vessel drainage is important. They are widely used in the Pharmaceutical and Fine Chemicals, Petrochemical, Polymer, and Mineral Processing industries.

Drain Piston Valves

Key Characteristics of SchuF Ram Valves

  • All valves have full nominal bore
  • Available with 45°, 60°, or 90 degree outlet angle in the body
  • Modular design
  • Sealing to atmosphere always with adjustable loaded stuffing box
  • Valves have exchangeable seats
  • LeakTight © Sealing due to special SchuF process of manufacturing
  • A flushing connection is provided as standard
  • Available with either Radial or Positive seal

Ram Drain Valve Options

  • The Model 28 Valve is GMP and CIP compliant
  • A wafer type sampling valve can be inserted between valve body and vessel
  • Multiport valve variants are available
  • Manual, electric, pneumatic, and hydraulic actuation available

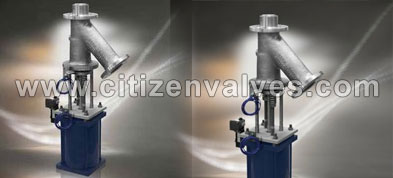

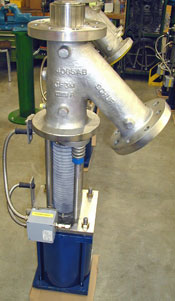

Drain Piston Valve

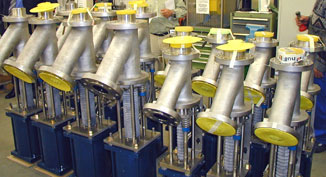

Flush Bottom Piston Valve, Photo:©SchuF

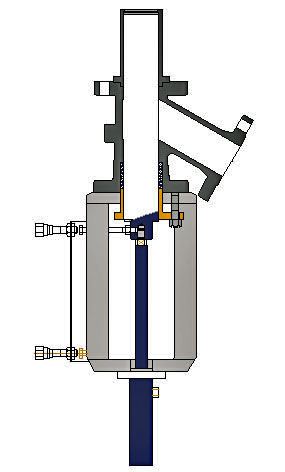

Model 28KS Ram valve

The model 28KS is a versatile ram type bottom outlet valve with metal to metal or radial seal and exchangeable seats,

2)-Level-3-28KS

SchuF Brand : flush bottom valve working principle

SchuF Brand : Diaphragm Flush Bottom Valve – Working Principle:

The three steps shown in the picture is explained.

1. Contents are removed (Diaphragm in open position)
2. Valve shuts down (Diaphragm in closed position)
3. Steam enters and cleans the valve internals

FBV in Bottom driven Vessels:
In case of bottom driven agitators which are present in the centre, the FBV finds a place just adjacent to the agitator and the consideration is that there should be no dead leg inside and drainability should be 100%. And this is achieved by the perfection of the fabrication department.

SchuF Brand : y type flush bottom valve

Designed and Manufactured as per BS 5351 End Connection: ASME B 16.5

“Y” Type Flush Bottom Valve – Mounting

INTERFACE ISO 5211
BODY MOC WCB, CF8, CF3, CF8M, CF3M (Special on Request)
TRIM MOC CF8, CF3, CF8M, CF3M (Special on Request)
SEAT MOC FIFE, GFT, PEK (Special on Request)
SIZE 1/2′ (15mm) to 8″ (200mm)

“Y” Type Flush Bottom Valve – Features

  • The Valves are designed to open directly in the tank, reactor for 100% Flushing or discharging the material.
  • Easy Operation even under high pressures.
  • Full circular passages.
  • Easily replaceable PTFE seats & Packing.
  • The design is featured with inclined bonnet which allows the automation OR manual operation to be free from fouling with the reactor disc end.

Types of Flush Bottom Valve ( RACER Brand Valves Dealers Distributors )

SS Flush Bottom Valve Flanged End

Product Details:

Brand RACER
Model SS Flush Bottom Valve
Size 25mm To 100mm

We are Dealers of Flush Bottom Valve. The Flush Bottom Valve are designed by us to provide drainage and dead space free shut off for reactors, vessels and storage tanks. This is accomplished by placing the valve seat flush with the bottom of the vessel, which eliminates any build up of product within the vessel nozzle itself.

Specifications:
  • Pressure: High Pressure
  • Power: manual, electric, pneumatic and hydraulic executive mode
  • Material: Stainless Steel
  • Temperature of Media: High Temperature
  • Media: Oil
  • Port Size: DN25

Flanged End Mild Steel Flush Bottom Valves

Product Details:

Minimum Order Quantity 1 Piece
Brand RACER
Model Jacketed Flush Bottom Valves
Size 25mm To 100mm

We are Dealers of Jacketed flush bottom valve. The Flush Bottom Valve are designed by us to provide drainage and dead space free shut off for reactors, vessels and storage tanks. This is accomplished by placing the valve seat flush with the bottom of the vessel, which eliminates any buildup of product within the vessel nozzle itself.

Flanged End MS Flush Bottom Valve

Product Details:

Minimum Order Quantity 1 Piece
Brand RACER
Model Flush Bottom Valve
Size 25mm To 100mm

We have been successfully operating in the industry by offering our utmost quality and superlative Flush Bottom Valves. This range is primarily used in the bottom of reactor vessels, autoclaves & other process vessels for landing abrasive, slurry, viscous material or semi solid media. Due to their extra long spindle and modified hand-wheel with cylinder arrangements, these valves offer easy operation and high durability. Furthermore, our range of valves are fabricated using superior quality material and easily facilitate the drainage and dead space free shutoff in various heavy duty appliances such as reactors, vessels and storage tanks.

Flanged End Flush Bottom Valve

Product Details:

Minimum Order Quantity 1 Piece
Brand RACER
Model Flanged End Flush Bottom Valve

We are counted among the most distinguished organizations that are engaged in manufacturing, supplying and exporting a wide range of Flush Bottom Valves that are extensively used in flush tanks mounted at the bottom of the tank.

Some well-acknowledged features of these valves are:

  • Excellent finish
  • Application Specific Design
  • Smooth operations
  • Easy Installation
  • Durable standards
  • Leakage proof
  • Precise dimensions

Other details:

  • Provided with PFA / FEP lined coating
  • Resistant to corrosion
  • Can withstand high temperature
  • Easy-to-operate
  • Durable standards
  • Efficient performance
  • Conforms to ASMEB16.34, BS1873 and GB/T12235
  • Flange ends at par with ASME B16.5,GB/T9113 and HG20596 (or as specified by customers)
  • Dumping valve Material: WCB, Stainless steel, carbon steel and others

Flush Bottom Valves Materials

Stainless Steel Flush Bottom Valve
Stainless Steel Flush Bottom Valve Suppliers Dealers Distributors in India

Flush Bottom Valve, Stainless Steel Forged Steel 304 Valve, Stainless Steel F321 Flush Bottom Valve, F347 Flush Bottom Valve, SS High Pressure Flush Bottom Valve, Class 150, 300, 600, 900, 1/2 inch stainless steel Flush Bottom Valve, 1/2" stainless steel Flush Bottom Valve, 3/4 Size Flush Bottom Valve, 4 inch stainless steel Flush Bottom Valve, Industrial Flush Bottom Valve, Stainless Steel 316 Flush Bottom Valve Suppliers in India... Read more

Alloy Steel Flush Bottom Valve
Alloy Steel Flush Bottom Valve Suppliers Dealers Distributors in India

Alloy Steel Flush Bottom Valves, Chrome Moly Alloy A217 / SA217 Cast Valves, WC9 Alloy Steel Globe Valve, 4 Inch, 2500#, A350 LF3, A352 LC3, A182 F5A/F5, A217 C5, A182 F9, A217 C12, A182 F11, A217 WC6, A182 F22, A217 WC9, A182 F91, A217 C12A, 10 Inch, RF, WC9 Gate Valve, PSB, 12 Inch, 2500 LB, Alloy Steel Valves Dealers & Distributors in India.. Read more

Carbon Steel Flush Bottom Valve
Carbon Steel Flush Bottom Valve Suppliers Dealers Distributors in India

Flush Bottom Valves, Carbon Steel Flush Bottom Valves, Carbon Steel Valve Material, ASTM A350 LF2 Flush Bottom Valves, Carbon Steel ASTM A106 Flush Bottom Valves, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34 ASTM A105N Flush Bottom Valves, Cast Carbon Steel Flush Bottom Valves, API 600 Cast Steel Flush Bottom Valves, Forged Carbon Steel Flush Bottom Valves Exporters & Suppliers In India.. Read more

Hastelloy Flush Bottom Valve
Hastelloy Flush Bottom Valve Suppliers Dealers Distributors in India

Hastelloy Flush Bottom Valve, Hastelloy C276 Flush Bottom Valve, Hastelloy C22 Flush Bottom Valve, Hastelloy B2 Flush Bottom Valve, Hastelloy C276/C22 Valves, ASTM B 435 Hastelloy X Flush Bottom Valve, Hastelloy B2 Flush Bottom Valve, ASME B16.34 Flush Bottom Valve, UNS N10665 Hastelloy B2 Flush Bottom Valve, UNS N10276 Hastelloy C276/C22 Manufacturer / Suppliers in Mumbai India. Read more

Alloy 20 Flush Bottom Valve
Alloy 20 Flush Bottom Valve Suppliers Dealers Distributors in India

Wholesale Various High Quality Industrial Flush Bottom Valve Products from Citizen Metals, Largest Suppliers of Alloy 20 Flush Bottom Valve, Alloy 20 Flush Bottom Valve Dealers, Alloy 20 Check Valve, UNS N08020 Alloy 20 Flush Bottom Valve, Alloy 20 Flush Bottom Valve Suppliers, Alloy 20 Flush Bottom Valve Manufacturer, Alloy 20 Flush Bottom Valve Manufacturers in India. Read more

Nickel 200/201 Flush Bottom Valve
Nickel 200/201 Flush Bottom Valve Suppliers Dealers Distributors in India

We supply broad range of Nickel 200/201 Flush Bottom Valve, Leading Suppliers of Nickel 200/201 Valves, Ni-200 Flush Bottom Valve, Ni-201 Flush Bottom Valve, Uns N02200 Flush Bottom Valve, Uns N02201 Flush Bottom Valve, Nickel 200/201 Flush Bottom Valve Dealers, Flush Bottom Valve Suppliers, Nickel 200/201 Flush Bottom Valve Manufacturer, Nickel 200/201 Flush Bottom Valve Manufacturers in India. Read more

Monel® Flush Bottom Valve
Monel 400 Flush Bottom Valves Suppliers Dealers Distributors in India

we supply Monel 400 Valves with high quality and best affordable rate., Monel 400 Flush Bottom Valves, Monel DIN 2.4360, 2.4375 Flush Bottom Valves, Monel UNS N04400 Flush Bottom Valves, Monel UNS N05500 Flush Bottom Valves, Monel Flush Bottom Valves, Monel K500 Flush Bottom Valves, Monel 400 Flush Bottom Valves Distributors in India... Read more

Duplex Steel Flush Bottom Valve
Duplex Steel Flush Bottom Valve Suppliers Dealers Distributors in India

We specialize in the oil & gas industries and offer specialty Duplex Steel Flush Bottom Valve, UNS S31803 Flush Bottom Valve Suppliers in India, DIN 1.4410 Super Duplex Steel Flush Bottom Valve, ASME B 16.10 UNS S32760 Flush Bottom Valve, ASTM A351 Duplex Steel UNS S31803, ASME SA494 Duplex Steel UNS S31803, Duplex Steel UNS S31803 Class 900 Flush Bottom Valve Exporters in India. Read more

254 Smo Flush Bottom Valve
254 Smo Flush Bottom Valve Suppliers Dealers Distributors in India

Flush Bottom Valve, 254 Smo Flush Bottom Valve, Cryogenic 254 SMO gate valve, ASME B16.34 SS 254 SMO Flush Bottom Valve, Stainless Steel 254 SMO Flush Bottom Valve, ASTM A351 SS SMO 254 Flush Bottom Valve, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34, 254 SMO Industrial Valves, Stainless Steel 254SMO Flush Bottom Valves Suppliers in India.. Read more

904l Stainless Steel Flush Bottom Valve
904l Stainless Steel Industrial Flush Bottom Valve Suppliers Dealers Distributors in India

Flush Bottom Valve, 904l Stainless Steel Flush Bottom Valve, 904l Stainless Steel Industrial Flush Bottom Valve, SS 904L ASTM A351 Flush Bottom Valve, ASME B 16.10 Flush Bottom Valve, ASME B 16.5, ASME B 16.25, ASME B 16.34, UNS N08904, 1.4539, BS 904S13, JIS SUS 890L Flush Bottom Valve , 904l Stainless Steel Flush Bottom Valves, High Pressure 904l Stainless Steel Flush Bottom Valve Exporters in India.. Read more

Inconel Flush Bottom Valve
Inconel Flush Bottom Valve Suppliers Dealers Distributors in India

Flush Bottom Valves, Inconel Flush Bottom Valve, Inconel 600 Flush Bottom Valve, INCONEL WERKSTOFF NR. 2.4816 Flush Bottom Valves, Inconel 600 N06600 Flush Bottom Valves, Inconel 2.4816 Flush Bottom Valves, UNS N06600 Flush Bottom Valves, Inconel 600 Flush Bottom Valves, API 600/ BS1414, ALLOY 600 Flush Bottom Valves, ASME B 16.5 Flush Bottom Valves Dealers in India.. Read more

Titanium Flush Bottom Valve
Titanium Flush Bottom Valve Suppliers Dealers Distributors in India

We are the one of the top most manufacturers of different types of Industrial Flush Bottom Valve, We have a large inventory of Flush Bottom Valve in a variety of options., Largest Suppliers of Titanium Gr2(B367 Gr C2) Flush Bottom Valve, Titanium Gr3(B367 Gr C3) Flush Bottom Valve, Titanium TA1, TA2, Titanium Gr.5, Gr6 Flush Bottom Valve,Gr7 ,Gr12, Titanium TC4,TA9,TA10 Dealers in India.. Read more

Brass Flush Bottom Valve
Brass Flush Bottom Valve Suppliers Dealers Distributors in India

Brass Flush Bottom Valve, brass Flush Bottom Valve price list in India, brass Flush Bottom Valve 1/2, 1 inch brass Flush Bottom Valve, brass Flush Bottom Valve 3/4, brass Flush Bottom Valve price list india, 3 inch brass check valve, brass Flush Bottom Valve price list, 1/2 inch Flush Bottom Valve, 4 brass Flush Bottom Valve, 3/4 brass Flush Bottom Valve, 4 inch brass Flush Bottom Valve, 2 inch brass Flush Bottom Valve Read more

Copper Flush Bottom Valve
Copper Flush Bottom Valve Suppliers Dealers Distributors in India

Experience Of 50 Years In Copper Knife Gate Valve, We have a large inventory of Copper Flush Bottom Valve, Copper 90/10 Flush Bottom Valve, Copper 70/30 Flush Bottom Valve, Copper Cu-Ni 70/30 Flush Bottom Valve, Copper 90/10 Flush Bottom Valve Dealers, Copper 70/30 Flush Bottom Valve Suppliers, Copper Cu-Ni 70/30 Flush Bottom Valve Manufacturer, Copper Cu-Ni 90/10 Flush Bottom Valve Manufacturers in India. Read more
