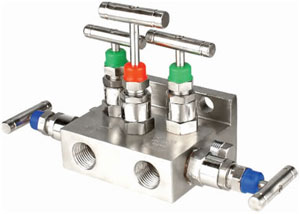

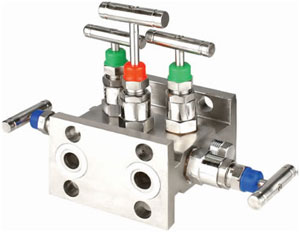

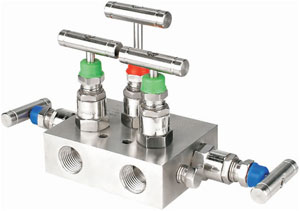

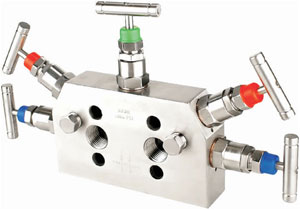

5 way manifold, 5 valve manifold, 3 valve manifolds, 2 valve manifolds, 5 way manifold manufacturers, 5 valve manifold manufacturers, 5 way manifold exporters, manifold valves manufacturers, 5 valve manifold exporters, 5 way manifold suppliers, 5 valve manifold suppliers, manifold valves, manifold valves from India

2 Way Manifold valve, 2 Valve Manifold-H Type, 2 Valve Manifold-T Type, 2 Valve Manifold-S Type, 3 Way Manifold Valve, 3 Valve Manifold-H Type, 3 Valve Manifold-T Type, 3 Valve Manifold-S Type, Manifold Valves manufacturers, Manifold Valves Suppliers, 3 Way Manifolds Valve, 5 Way Manifolds Valve, 2-5-3 Way Manifolds Valve direct mounting, Manifold valve Materials, 3 way manifolds, manifold pressure valve, manifold pressure reducing valve, 3 valve manifolds manufacturers Dealers / Distributors / Exporters / Suppliers india


MANIFOLD VALVES MANUFACTURERS IN INDIA

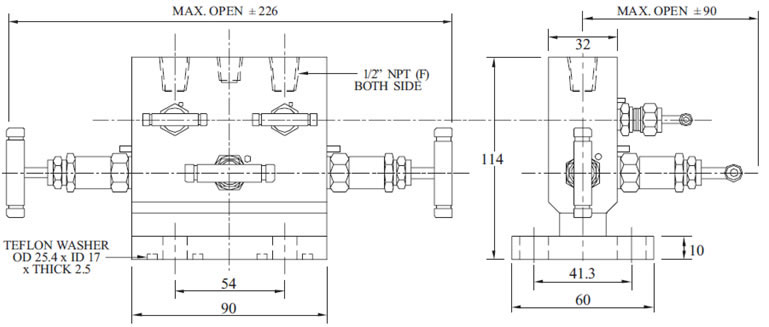

These manifold can be directly mounted on the transmitter having 54 mm or 32 mm center to center connections.The inlet is either ½" NPT F or flanged. Two isolation valves & one equalizer valve is provided along with 1/4" NPT F drain as an option. These valves are mainly used with Dp transmitters. Different options are available as shown.

Standard Specifications :-
Maximum working pressure : 413 bar / 6000 PSI at 1000 C
Material : 316 SS / 316L SS / 304 SS / Carbon steel
MOC in accordance with NACE MR0175 is available on request.
Monel, Inconel, Hastelloy, Duplex steel are also available on request.
Gland packing : PTFE / Graphite
Standard process connection : ½" NPT F
standard Instrument connection : Flanged
Drain : ¼" NPT F (supplied with ¼" NPT blind plug)

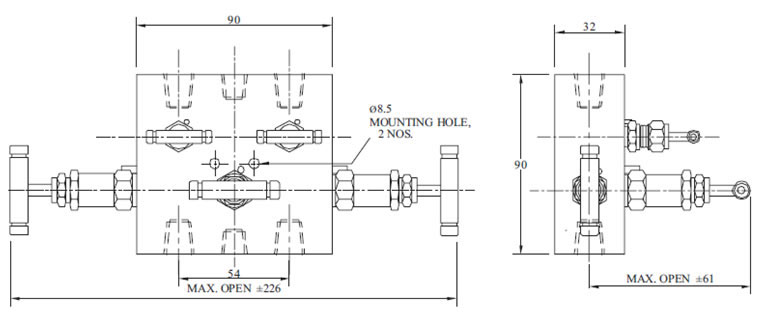

Standard Specifications :-
Maximum working pressure : 413 bar / 6000 PSI at 1000 C
Material : 316 SS / 316L SS / 304 SS / Carbon steel
MOC in accordance with NACE MR0175 is available on request.
Monel, Inconel, Hastelloy, Duplex steel are also available on request.
Gland packing : PTFE / Graphite
Standard process connection : ½" NPT F
Standard Instrument connection : Flanged
Drain : ¼" NPT F ( supplied with ¼" NPT blind plug)

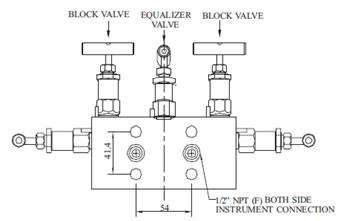

Standard Specifications :-
Maximum working pressure : 413 bar/6000 PSI at 1000 C
Material : 316 SS / 316L SS / 304 SS / Carbon steel
MOC in accordance with NACE MR0175 is available on request.
Monel, Inconel, Hastelloy, Duplex steel are also available on request.
Gland packing : PTFE / Graphite
Standard process connection : Flanged
Standard Instrument connection : Flanged
Drain: ¼" NPT F ( supplied with ¼" NPT blind plug)

2 VALVE MANIFOLD-H TYPE

We manufacture 2 valve manifold (H type) with premium quality of raw materials and as per the internationally specified standards like BIS, ASTM etc. Designed for static pressure, liquid level applications and remote or separate mounting, 2 valve manifolds are available with NPT, BSPT, socket weld end connections. We offer 2 valve manifold in standard sizes and can be custom designed as per the specifications of the bulk buyers.

Technical Specification2 Valve Manifold-H Type

  • 2 Valve Manifolds are designed for direct mounting. Connecting from process side flange connection on suitable for process. Instrument side flange connection on suitable for dp transmitter. Connecting system impulse lines and transmitters, having simple two valves configuration which allows for easy block or isolate. bleed or vent valve calibration of a static pressure transmitter or gauge. Bleed or Vent connection with s.s. plug will be provided on request.
  • Screwed bonnet design. Ground and thread rolled spindle, packing below thread.
  • Non-rotating tip shut-off type spindle tip.
  • Dust cap protects stem threads from external contamination. Size: 1/4" & 1/2". ? End Connection : npt, bspt & bsp. Working Pressure : 6000 psi (413 bar).
  • Temperature rating : Ptfe 450° f(232°c) Grafoil 700° f (371 ° c).
  • Material of Construction : SS316, SS304, CS, Hastelloy. Monel etc.
  • Packing : Ptfe, Grafoil. Orifice : 04.7.

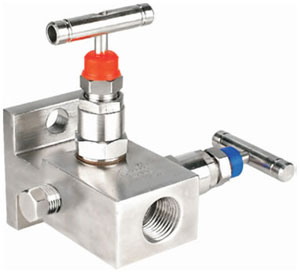

2 VALVE MANIFOLD-T TYPE2 Valve Manifold-T Type

Presenting a wide range of 2 valve manifold – T type in stainless steel, alloy steel, carbon steel, haste alloy, monel, inconel and many more. Made as per the international quality standards, these t type 2 valve manifold are available in different sizes, shapes, finishes and dimensions. Our t type 2 valve manifold are used to control, measure and calibrate the pressure of gases and liquids. Available at the most competitive prices, these t type 2 valve manifold can be customized as per the need of the clients.

Technical Specification

  • Valve Manifolds are designed for DIRECT MOUNTING. Connecting from process side flange connection on suitable for process. Instrument side flange connection on suitable for dp transmitter. Connecting system impulse lines and transmitters, having simple two valves configuration which allows for easy block or isolate, bleed or vent valve calibration of a static pressure transmitter or gauge. Bleed or Vent connection with s.s. plug will be provided on request.
  • Screwed bonnet design. Ground and thread rolled spindle, packing below thread.
  • Non-rotating tip shut-off type spindle tip. ? Dust cap protects stem threads from external contamination. Size : 1/4" & 1/2".
  • End Connection : npt, bspt & bsp. Working Pressure : 6000 psi (413 bar).
  • Temperature rating : Ptfe 450° f(232Qc) Grafoil 700° f (371Q c).
  • Material of Construction : SS316, SS304, CS, Hastelloy, Monel etc.
  • Packing : Ptfe, Grafoil. Orifice : 04.7.



2 VALVE MANIFOLD-S TYPE

two valve manifold manufacturersOur range of precision engineered 2 valve manifold (straight type) is manufactured by using stainless steel, carbon steel materials or any other alloy, as per the requirement of the clients. Our straight type 2 valve manifold are durable, reliable and corrosion resistant. These manifold valves are widely applied in refineries, petro-chemical plants, power plants, liquid petroleum gas processing plant and more. We deliver the consignment at the desired destination within stipulated time frame.

Technical Specification

  • 2 Valve Manifolds are designed for REMOTE OR SEPARATE mounting. Connecting from process side flange connection on sultablQ for process. Instrument side flange connection on suitable for dp transmitter. Connecting system impulse lines and transmitters, having simple two valves configuration which allows for easy block or Isolate. bleed or vent valve calibration of a static pressure transmitter or gauge. Dleed or Vent connection with s.s. plug will be provided on request.
  • Screwed bonnet design. Ground and thread rolled spindle, packing below thread.
  • Non-rotating tip shut-off type spindle tip.
  • Dust cap protects stem threads from external contamination. Size: 1/4" & 1/2".
  • End Connection : npt, bspt & bsp. Working Pressure : 6000 psi (413 bar).
  • Temperature rating : Ptfe 450° f(232°c) Grafoil 700° f (371 ° c).
  • Material of Construction : SS316, SS304, CS, Hastelloy. Monel etc.
  • Packing: Ptfe, Grafoil. Orifice: 04.7.

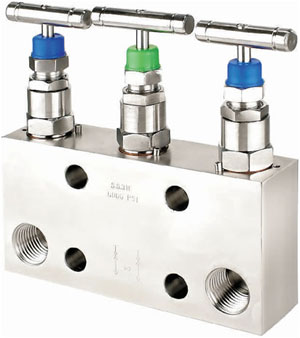

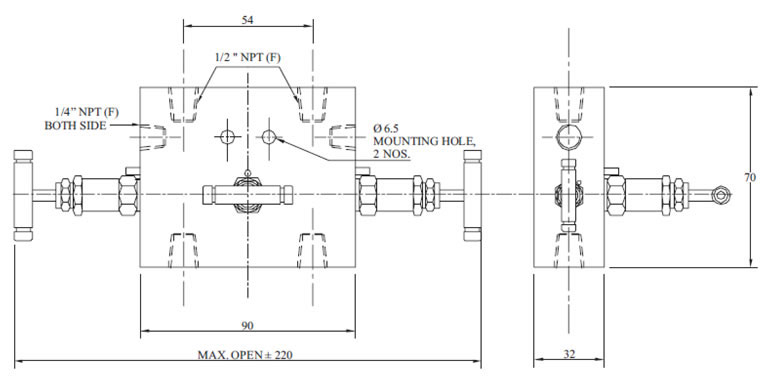

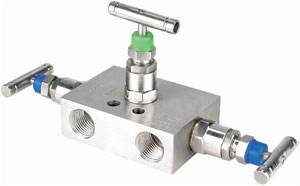

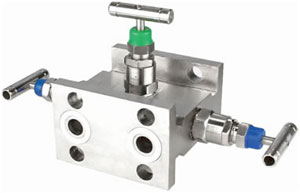

3 VALVE MANIFOLD-H TYPE

3 Valve Manifold-H TypeOur range of 3 Valve Manifold – H Type is manufactured in compliance with the international quality standards like BIS, BS and more. These precision engineered manifold valves are made by using SS-316, SS-304, carbon steel, haste alloy, monel, inconel etc. Designed for connecting differential pressure transmitters or flow records to impulse line tubing, these valves find their application in various industries like chemical, petro-chemical, oil and many more. We fulfill bulk orders within specified time period and bulk orders on short notice are welcomed by us.

Technical Specification

  • 3 Valve Manifolds are designed for DIRECT MOUNTING. Connecting from process side flange connection on suitable for process. Instrument side flange connection on suitable for dp transmitter. Connecting system impulse lines and transmitters, having simple three valves configuration which allows for easy two block or isolate. one equaliser valve calibration of a static pressure transmitter or gauge.
  • Screwed bonnet design. Ground and thread rolled spindle, packing below thread.
  • Non-rotating tip shut-off type spindle tip. ? Dust cap protects stem threads from external contamination. Size : 1/4" & 1/2".
  • End Connection : npt, bspt & bsp. Working Pressure : 6000 psi (413 bar).
  • Temperature rating : Ptfe 450° f(232°c) Grafoil 700° f (371 ° c).
  • Material of Construction : SS316, SS304, CS, Hastelloy, Monel etc.
  • Packing : Ptfe, Grafoil. Orifice : 04.7.

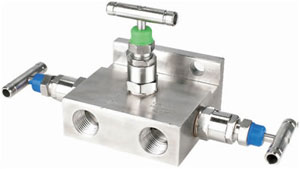

3 VALVE MANIFOLD-T TYPE

3 Valve Manifold-T TypeOur variety of 3 valve manifold – t type is manufactured by using premium quality of raw materials. Easy to install, these manifold valves are highly durable, reliable and corrosion resistant. Fabricated in different dimensions, sizes and finishes, these t type 3 manifold valve are hydro-tested to check their compliance at the required working pressure. Available at the leading industry prices, these products are custom designed in terms of size, material, finish etc.

Technical Specification

  • 3 VALVE MANIFOLDS are designed for DIRECT MOUNTING. Connecting from process side 1/2" npt(F) & Instrument sldQ flange connection on suitable for dp transmitter. Connecting system impulse lines and transmitters, having simple three valves configuration which allows for easy two block or Isolate, one equaliser valve calibration of a static pressure transmitter or gauge. Dleed or Vent connection with s.s. plug will be provided on request.
  • Screwed bonnet design. Ground and thread rolled spindle, packing below thread.
  • Non-rotating tip shut-off type spindle tip.
  • Dust cap protects stem threads from external contamination. Size: 1/4" & 1/2".
  • End Connection : npt, bspt & bsp. Working Pressure : 6000 psi (413 bar).
  • Temperature rating : Ptfe 450° f(232°c) Grafoil 700° f (371 ° c).
  • Material of Construction : SS316, SS304, CS, Hastelloy. Monel etc.
  • Packing: Ptfe, Grafoil. Orifice: 04.7.

3 VALVE MANIFOLD-S TYPE

3 Valve Manifold-S TypeWe manufacture and supply an array of 3 valve manifold – S type by using different material grades like stainless steel, alloy steel, carbon steel, monel, inconel etc. Designed for differential pressure applications, we offer s type 3 valve manifold in standard sizes. These manifold valves are available in different dimensions and are manufactured in compliance with the international quality standards. Customization of the products is done as per the specifications of the clients.

Technical Specification

  • 3 VALVE MANIFOLDS are designed for REMOTE OR SEPARATE MOUNTING. Connecting from process side 1/2"npt(F) & Instrument side 1/2"npt(F). Connecting system impulse lines and transmitters, having simple three valves configuration which allows for easy block or isolate, one Equaliser valve calibration of a static pressure transmitter or gauge. Bleed or vent connection with s.s. plug will be provided on request.
  • Screwed bonnet design. Ground and thread rolled spindle, packing below thread.
  • Non-rotating tip shut-off type spindle tip.
  • Dust cap protects stem threads from external contamination. Size : 1/4" & 1/2".
  • End Connection: npt, bspt & bsp. Working Pressure: 6000 psl (413 bar).
  • Temperature rating : Ptfe 450° f(232Qc) Grafoil 700° f (371Q c).
  • Material of Construction : SS316, SS304, CS, Hastelloy, Monel etc.
  • Packing : Ptfe, Grafoil. Orifice : 04.7.

Swagelok Manifolds Valves Dealer & DISTRIBUTORS IN INDIA ( all valve brands available in india )

Choose from a variety of manifold valves and related products for instrumentation applications.

Our manifolds

  • Are designed for static pressure, liquid level, and differential pressure applications
  • Are available in traditional or compact inline body designs, for use in instrument, direct-mount, remote-mount, and module systems
  • Use a compact assembly design, resulting in reduced size and weight
  • Have fewer potential leak points
  • Have body material options such as stainless steel, carbon steel, and duplex stainless steel, and packing materials such as PTFE, for system versatility, and Grafoil®, for extended temperature ratings
  • Are easy to install and maintain

Instrument Manifolds—V, VB, and VL Series

V, VB, and VL series manifolds feature a horizontal body design in a variety of 2-, 3-, and 5-valve instrument manifolds. The 2-valve manifolds are designed for static pressure and liquid level applications; the 3- and 5-valve manifolds are designed for differential pressure applications.

Specifications

Working Pressuresup to 6000 psig (413 bar)
Temperaturesup to 1200°F (648°C) with Grafoil valve packing

Block and Bleed Valves (IPT Series)

IPT series block and bleed valves are available in two configurations; single block (needle/needle) and bleed and double block and bleed (ball/needle/ball or needle/needle/needle) in 316 stainless steel construction. The double block and bleed configuration allows for double positive isolation.

Specifications

Working Pressuresup to 20 000 psig (1378 bar)
Temperaturesup to 650°F (121°C)
End ConnectionsFemale NPT: 1/4 to 1 in.
Medium-pressure cone and thread: 1/4 to 1 in.
High-pressure cone and thread: 1/4, 3/8, and 9/16 in.
Swagelok medium-pressure tube fitting

Compact Instrument Isolation Valves—V Series

Compact instrument isolation valves with integral block and bleed functions offer advantages over configurations with multiple valves and fittings. The metal-to-metal body-to-bonnet seal eliminates the need for O-ring or elastomer seals. They use a hardened stainless steel, nonrotating ball stem tip which provides consistent shutoff.

Specifications

Working Pressuresup to 6000 psig (413 bar)
Temperaturesup to 1200°F (648°C) with Grafoil valve packing

Direct-Mount Manifolds and Remote-Mount Manifolds Series

VE series direct-mount instrument manifolds offer flange mounting to instruments, gauges, pressure switches, and absolute pressure transmitters in 2-, 3-, and 5-valve configurations. Remote-mount manifolds feature an angled vent valve for panel mounting in a 2-valve design. Both styles use a compact design and have a choice of packing and bonnet seal materials available.

Swagelok Distribution Manifolds—J6 Series

J6 series distribution manifolds offer strength in a lightweight, compact design with a one-piece integral body rated to 6000 psig (413 bar). The design has fewer potential leak points than conventional distribution manifolds and supports four to eighteen needle valves/outlet connections. The nonrotating, hardened needle provides positive shutoff.

Bellows-Sealed 3-Valve Manifolds—V3 Series

This 3-valve manifold uses B or U series bellows-sealed valves for systems with difficult fluid containment requirements. It contains gasketed or welded body-to-bonnet seals and uses cobalt-based alloy stem tips.

Modular Instrumentation System

The Kenmac series modular 85 system provides a standard modular instrumentation interface and mounting system. The options include two- and four-valve pressure and differential pressure manifolds, instrument monoflanges for isolation and vent functions, and self-venting single and double purge blocks. Electric heaters, steam trace blocks, seal pots, filling connectors, protective shade, mounting plates, and ancillary components are also available.

Parker's Valve Brand Dealer & DISTRIBUTORS IN INDIA ( all valve brands available in india )

PARKER'S FLANGE MANIFOLDS DEALERS IN INDIA

Parker offers a diverse range of flange manifolds, designed to replace conventional multiple-valve instrument installations. By combining customer specified valves into a single flange manifold, the number of leak paths is reduced and the mass of the system is lowered, reducing stresses from loading and vibration.

Modular Valve - ProBloc SeriesMonoflange Process To Instrument Valve

Parker's Monoflange is designed to replace conventional multiple-valve installations currently in use for interface with pressure measuring systems in process control applications.

Wafer Style Valve - Monoball SeriesModular Valve - ProBloc Series

Parker's ProBloc series is designed to replace conventional multiple-valve installations currently in use for interface with pressure measuring systems in process control applications

Flushing RingWafer Style Valve - Monoball Series

Parker’s wafer style valve Monoball is a one-piece design flanged ball valve that is lighter and more compact than conventional flange-to-flange mounted ball valve.

Flushing Ring

Parker's range of flushing rings are available in number of different styles and configurations. The flushing Ring is held in place by the through bolting, this allows for ease of installation and to positively locate in process control applications

PARKER'S MULTIPLE VALVE MANIFOLDS DEALERS IN INDIA

Manifold - Hi-Pro Series2, 3 And 5 Valve Manifolds - H Series

Parker's manifold valve offers superior performance with a comprehensive range of remote and direct mount manifolds to suit all types of instrumentation installations, specifications and applications

MESC Compliant Modular ManifoldsManifold - Hi-Pro Series

This series of manifolds combines isolate in the form of a ball valve and bleed/vent in a choice of ball or needle into one block for interface with pressure measurement transmitters, gauges and switches for applications up to 10,000 psi (689 bar)

Air Header Manifold - Hi-Pro SeriesMESC Compliant Modular Manifolds

Parker's modular range of manifolds and accessories for small-bore instrumentation requirements that allow anyone to configure and order a complete integrated manifold and mounting solution for a process application in a few minutes.

Air Distribution Manifold - Hi-Pro SeriesAir Header Manifold - Hi-Pro Series

Parker's air header manifold with up to 20 Parker Hi-Pro ball valve outlets, assembled to the body using welded nipple to taper threaded valve connection.

CCIMS - Close Coupled Instrument Mounting SystemAir Distribution Manifold - Hi-Pro Series

Parker’s Hi-Pro series air distribution manifolds are supplied as an interconnected assembly utilising Hi-Pro ball valves with two shut-off funcions in one body, mounted on a base plate.

Manifolds, Direct-Mount System for Close CouplingCCIMS - Close Coupled Instrument Mounting System

Parker's close coupled valve supports the direct or close coupled connection of one of the most common types of process instruments – differential pressure (DP) transmitters to process pipework

Manifold, Instrument and Power - 2,3,and 5 Valve SeriesManifolds, Direct-Mount System For Close Coupling

Parker PGI offers an extensive variety of connection with their close coupling manifold systems. Direct-Mount Systems can minimize or eliminate Gauge Line Error (GLE), resulting in more accurate measurement.

Cryogenic Manifold Fill AssembliesManifold, Instrument And Power - 2,3,And 5 Valve Series

Parker PGI offers an extensive variety of 2, 3 and 5-Valve Manifolds to be used in all types of Instrumentation or Power applications and service conditions up to 10,000 PSI @ 200°F in Carbon Steel and 316 Stainless Steel.

Air header distribution manifolds - LPAHM SeriesCryogenic Manifold Fill Assemblies

The Parker Bestobell’s cryogenic manifold fill assemblies are specifically designed for cryogenic static storage tanks to replace the traditional gang of valves linked together with piping and a large amount of welding and brazing.

Air Header Distribution Manifolds - LPAHM Series

Parker’s air header distribution manifolds LPAHM Series are designed to distribute air from the compressor to the actuators on pneumatic instruments, such as steam flow meters, pressure controllers and valve positioners.

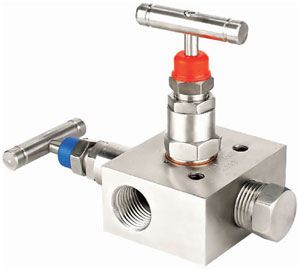

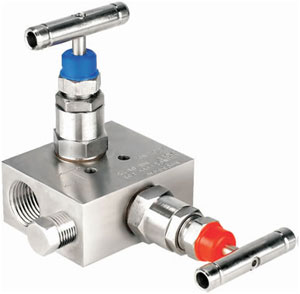

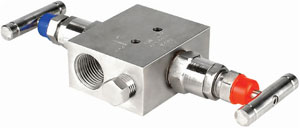

2-Way Manifold Valves

2 Way Manifold Valve2-way valve manifold is used for pressure transmitter. The typical 2-way valve manifold consists of 1 block valve and 1 drain or test valve. If we want to calibrate the pressure transmitter, we just need simply close the block valve and open the drain valve. Then connect the drain valve connection to the pressure generator to give some test pressure.

Types of Manifold Valves

Manifold - R - 2 Way-01
Manifold - R - 2 Way-01
Manifold - R - 2 Way-02
Manifold - R - 2 Way-02
Manifold - R - 2 Way-03
Manifold - R - 2 Way-03
Manifold - R - 2 Way-04
Manifold - R - 2 Way-04
Manifold - R - 2 Way-05
Manifold - R - 2 Way-05
Manifold - R - 2 Way-06
Manifold - R - 2 Way-06

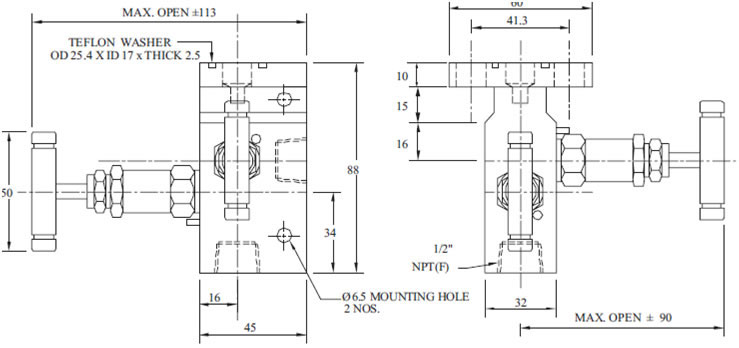

Manifold - T - 2 Way
Manifold - T - 2 Way

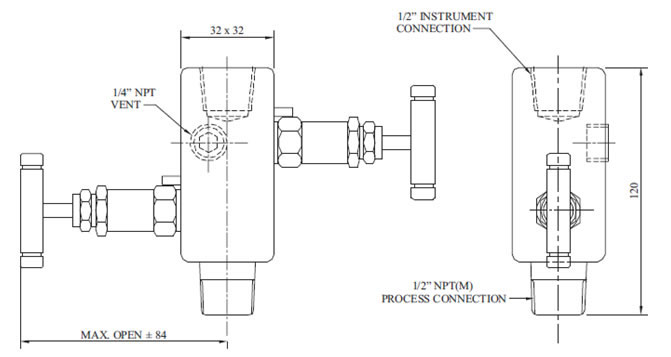

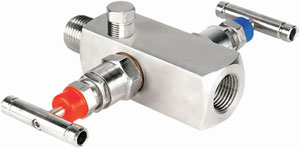

Manifold - R - 2 Way-01

Dwg No. IIMV/2R/01
Manifold - R - 2 Way-01 Process Diagram

Orifice : 4 mm
Approximate Weight : 1.0 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

Manifold - R - 2 Way-01Manifold - R - 2 Way-01 Diagram

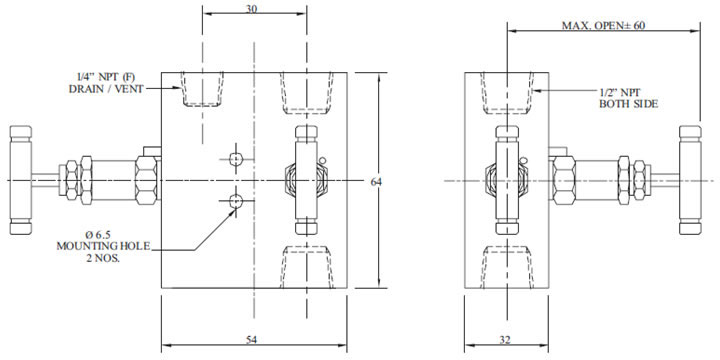

Manifold - R - 2 Way-02

Dwg No. IIMV/2R/02
Manifold - R - 2 Way-01 Process Diagram

Orifice : 4 mm
Approximate Weight : 1.0 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

Manifold - R - 2 Way-02Manifold - R - 2 Way-02 Diagram

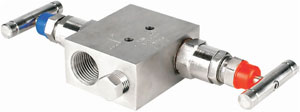

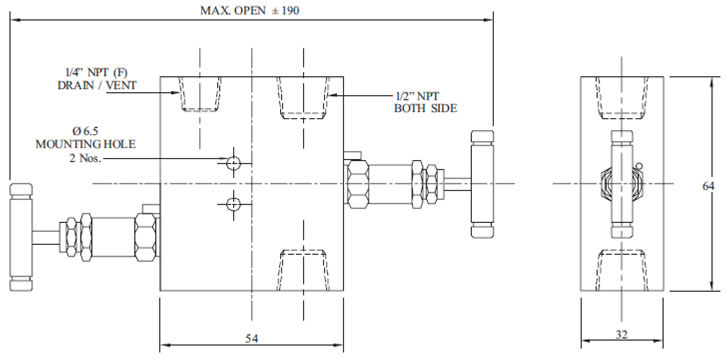

Manifold - R - 2 Way-03

Dwg No. IIMV/2R/03
Manifold - R - 2 Way-01 Process Diagram

Orifice : 4 mm
Approximate Weight : 1.0 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

Manifold - R - 2 Way-03Manifold - R - 2 Way-03 Diagram

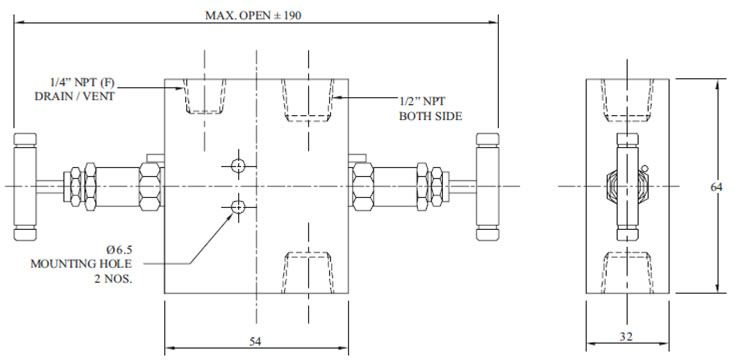

Manifold - R - 2 Way-04

Manifold - R - 2 Way-04Manifold - R - 2 Way-04 Diagram

Manifold - R - 2 Way-05

Dwg No. IIMV/2R/05
Manifold - R - 2 Way-04 Process Diagram

Orifice : 4 mm
Approximate Weight : 1.0 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

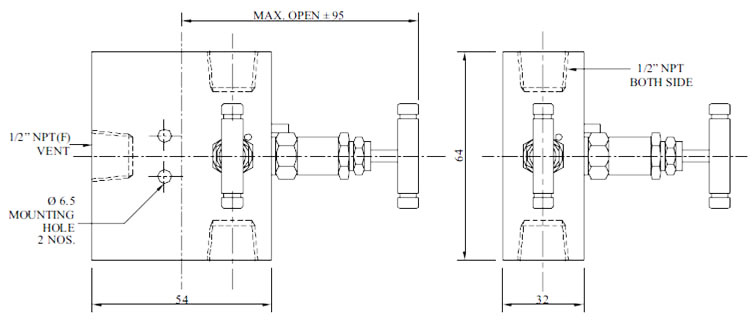

Manifold - R - 2 Way-05Manifold - R - 2 Way-05 Diagram

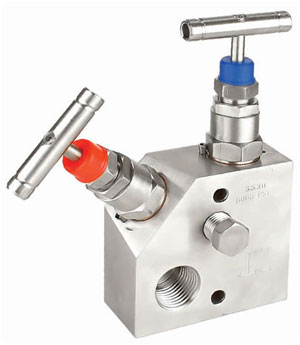

Manifold - R - 2 Way-06 (Direct Mounting)

Dwg No. IIMV/2R/06
Manifold - R - 2 Way-04 Process Diagram

Orifice : 4 mm
Approximate Weight : 1.2 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

Manifold - R - 2 Way-06 (Direct Mounting)Manifold - R - 2 Way-06 Diagram1

Manifold - T - 2 Way (Direct Mounting)

Dwg No. IIMV/2T
Manifold - T - 2 Way Process Diagram

Manifold - T - 2 Way AccessoryOrifice : 4 mm
Approximate Weight : 1.2 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

Manifold - T - 2 WayManifold - T - 2 Way Diagram

3-Way Manifold Valves

3 Way Manifold Valve

Manifold - R - 3 Way-013-Valve Manifold is used for differential pressure transmitter. The typical 3-way valve manifold consists of 2 block valve and 1 equalizer valve. If we want to check the zero of the differential pressure transmitter, we just need to close the block valve and open the equalizing valve. This 3-valve manifold is rarely used in oil & gas industries especially in the offshore platform due to the un-available of test connection.
Manifold - R - 3 Way-01
Manifold - R - 3 Way-01
Manifold - R - 3 Way-02
Manifold - R - 3 Way-02
Manifold - T - 3 Way
Manifold - T - 3 Way
Manifold - H - 3 Way
Manifold - H - 3 Way





Manifold - R - 3 Way-01

Dwg No. IIMV/3R/01Manifold - R - 3 Way-01 Process Diagram

Orifice : 4 mm
Approximate Weight : 1.5 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

Manifold - R - 3 Way-01Manifold - R - 3 Way-01 Diagram



Manifold - R - 3 Way-02 (Direct Mounting)

Dwg No. IIMV/3R/01Manifold - R - 3 Way-01 Process Diagram

Orifice : 4 mm
Approximate Weight : 1.5 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

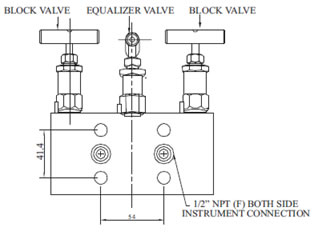

Manifold - R - 3 Way-02 (Direct Mounting)Manifold - R - 3 Way-02 Diagram1

Manifold - T - 3 Way (Direct Mounting)

Dwg No. IIMV/3TManifold - R - 3 Way-01 Process Diagram

Orifice : 4 mm
Approximate Weight : 1.5 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

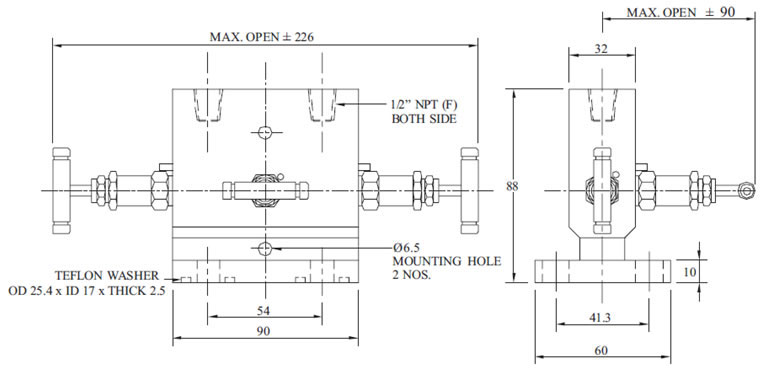

Manifold - T - 3 Way (Direct Mounting) Diagram

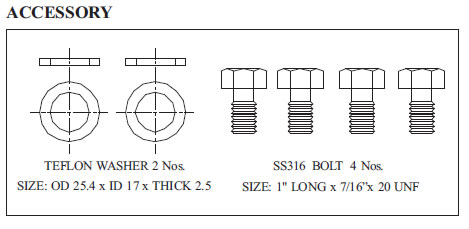

Manifold - T - 3 Way Accessory

Manifold - T - 3 Way (Direct Mounting)



Manifold - H - 3 Way (Direct Mounting)

Dwg No. IIMV/3HManifold - R - 3 Way-01 Process Diagram

Orifice : 4 mm
Approximate Weight : 2.6 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

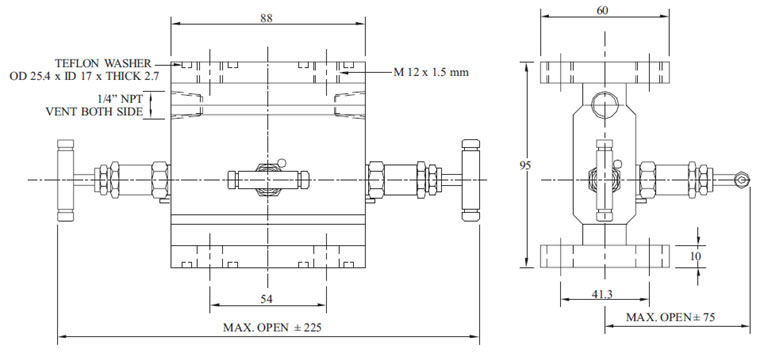

Manifold - H - 3 Way Diagram

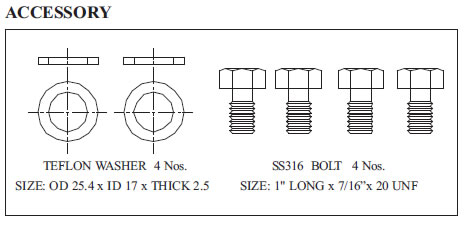

Manifold - H - 3 Way Accessory

Manifold - H - 3 Way (Direct Mounting)



5-Way Manifold Valves

5 Way Manifold Valve

Manifold - R - 5 Way-01Like 3-way valve manifold, 5-way valve manifold is also used for differential pressure transmitter. The typical 5-way valve manifold consist of 2 block valve, 1 equalizer valve, and 2 vent or test valve. If we want to check the zero of the transmitter, we just need to close the block valve and open the equalizing valve. If we want to calibrate the transmitter for 3 or 5 point calibration, then after the pressure is equalized we just need to connect the test valve to a pressure generator. This 5-way valve manifold is the most common valve manifold for differential pressure transmitter.
Manifold - R - 5 Way-01
Manifold - R - 5 Way-01

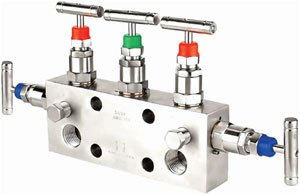

Manifold - R - 5 Way-02
Manifold - R - 5 Way-02
Manifold - R - 5 Way-03
Manifold - R - 5 Way-03
Manifold - T - 5 Way
Manifold - T - 5 Way-02
Manifold - H - 5 Way
Manifold - H - 5 Way-02

Manifold - R - 5 Way-01

Dwg No. IIMV/5R/01Manifold - R - 5 Way-01 process diagram



Manifold - R - 5 Way-01 process diagram





Orifice : 4 mm
Approximate Weight : 2.2 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

Manifold - R - 5 Way-01Manifold - R - 5 Way-01 Diagram

Manifold - R - 5 Way-02 (Direct Mounting)

Dwg No. IIMV/5R/02Manifold - R - 5 Way-01 process diagram



Manifold - R - 5 Way-01 process diagram





Orifice : 4 mm
Approximate Weight : 2.5 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

Manifold - R - 5 Way-02 (Direct Mounting)

Manifold - R - 5 Way-02 (Direct Mounting) Diagram1Manifold - R - 5 Way-02 (Direct Mounting) Diagram2

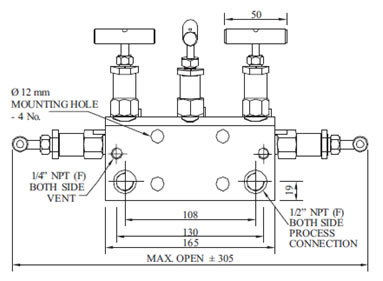

Manifold - R - 5 Way-02 (Direct Mounting) Diagram3

Manifold - R - 5 Way-03 (Direct Mounting)

Dwg No. IIMV/5R/03Manifold - R - 5 Way-01 process diagram



Manifold - R - 5 Way-01 process diagram





Orifice : 4 mm
Approximate Weight : 2.5 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

Manifold - R - 5 Way-03 (Direct Mounting)

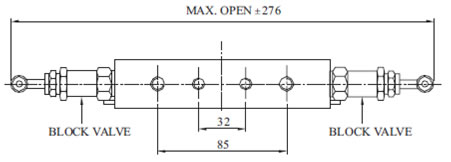

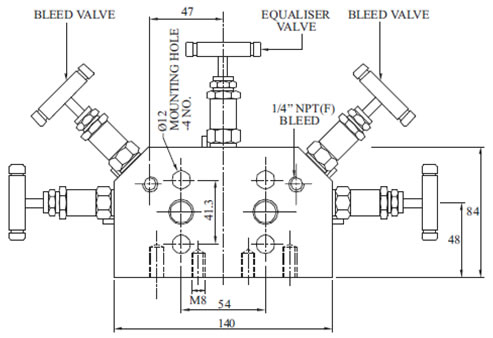

Manifold - R - 5 Way-03 (Direct Mounting) Diagram1

Manifold - R - 5 Way-03 (Direct Mounting) Diagram2

Manifold - T - 5 Way (Direct Mounting)

Dwg No. IIMV/5R/03Manifold - R - 5 Way-01 process diagram



Manifold - R - 5 Way-01 process diagram





Orifice : 4 mm
Approximate Weight : 2.5 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

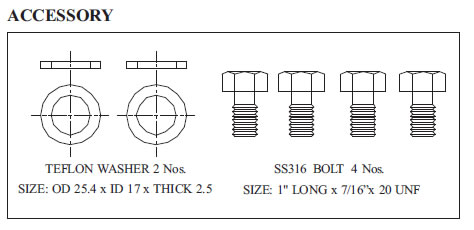

Manifold - T - 5 Way (Direct Mounting) AccessoryManifold - T - 5 Way (Direct Mounting)
Manifold - T - 5 Way (Direct Mounting) Diagram

Manifold - H - 5 Way (Direct Mounting)

Dwg No. IIMV/5R/03Manifold - R - 5 Way-01 process diagram



Manifold - R - 5 Way-01 process diagram





Orifice : 4 mm
Approximate Weight : 3.2 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

Manifold - T - 5 Way (Direct Mounting) AccessoryManifold - H - 5 Way (Direct Mounting)

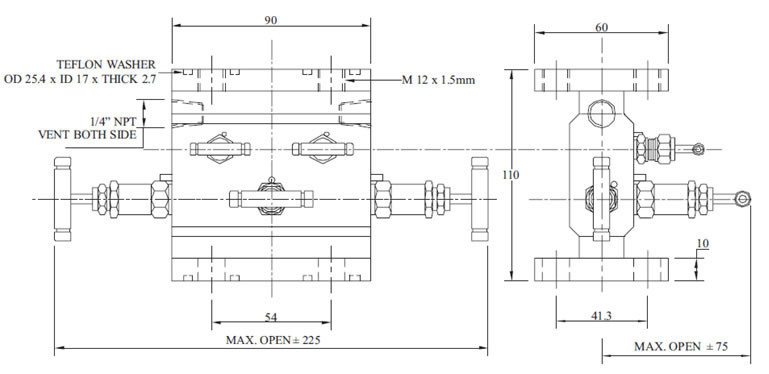

Manifold - H - 5 Way (Direct Mounting) Diagram

Manifold Valves Materials

Stainless Steel Manifold Valve
Stainless Steel Manifold Valve Suppliers Dealers Distributors in India

Manifold Valve, Stainless Steel Forged Steel 304 Valve, Stainless Steel F321 Manifold Valve, F347 Manifold Valve, SS High Pressure Manifold Valve, Class 150, 300, 600, 900, 1/2 inch stainless steel Manifold Valve, 1/2" stainless steel Manifold Valve, 3/4 Size Manifold Valve, 4 inch stainless steel Manifold Valve, Industrial Manifold Valve, Stainless Steel 316 Manifold Valve Suppliers in India... Read more

Alloy Steel Manifold Valve
Alloy Steel Manifold Valve Suppliers Dealers Distributors in India

Alloy Steel Manifold Valves, Chrome Moly Alloy A217 / SA217 Cast Valves, WC9 Alloy Steel Globe Valve, 4 Inch, 2500#, A350 LF3, A352 LC3, A182 F5A/F5, A217 C5, A182 F9, A217 C12, A182 F11, A217 WC6, A182 F22, A217 WC9, A182 F91, A217 C12A, 10 Inch, RF, WC9 Gate Valve, PSB, 12 Inch, 2500 LB, Alloy Steel Valves Dealers & Distributors in India.. Read more

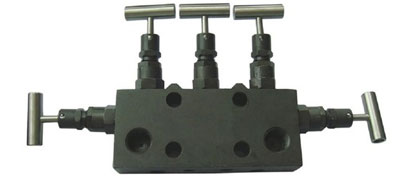

Carbon Steel Manifold Valve
Carbon Steel Manifold Valve Suppliers Dealers Distributors in India

Manifold Valves, Carbon Steel Manifold Valves, Carbon Steel Valve Material, ASTM A350 LF2 Manifold Valves, Carbon Steel ASTM A106 Manifold Valves, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34 ASTM A105N Manifold Valves, Cast Carbon Steel Manifold Valves, API 600 Cast Steel Manifold Valves, Forged Carbon Steel Manifold Valves Exporters & Suppliers In India.. Read more

Hastelloy Manifold Valve
Hastelloy Manifold Valve Suppliers Dealers Distributors in India

Hastelloy Manifold Valve, Hastelloy C276 Manifold Valve, Hastelloy C22 Manifold Valve, Hastelloy B2 Manifold Valve, Hastelloy C276/C22 Valves, ASTM B 435 Hastelloy X Manifold Valve, Hastelloy B2 Manifold Valve, ASME B16.34 Manifold Valve, UNS N10665 Hastelloy B2 Manifold Valve, UNS N10276 Hastelloy C276/C22 Manufacturer / Suppliers in Mumbai India. Read more

Alloy 20 Manifold Valve
Alloy 20 Manifold Valve Suppliers Dealers Distributors in India

Wholesale Various High Quality Industrial Manifold Valve Products from Citizen Metals, Largest Suppliers of Alloy 20 Manifold Valve, Alloy 20 Manifold Valve Dealers, Alloy 20 Check Valve, UNS N08020 Alloy 20 Manifold Valve, Alloy 20 Manifold Valve Suppliers, Alloy 20 Manifold Valve Manufacturer, Alloy 20 Manifold Valve Manufacturers in India. Read more

Nickel 200/201 Manifold Valve
Nickel 200/201 Manifold Valve Suppliers Dealers Distributors in India

We supply broad range of Nickel 200/201 Manifold Valve, Leading Suppliers of Nickel 200/201 Valves, Ni-200 Manifold Valve, Ni-201 Manifold Valve, Uns N02200 Manifold Valve, Uns N02201 Manifold Valve, Nickel 200/201 Manifold Valve Dealers, Manifold Valve Suppliers, Nickel 200/201 Manifold Valve Manufacturer, Nickel 200/201 Manifold Valve Manufacturers in India. Read more

Monel® Manifold Valve
Monel 400 Manifold Valves Suppliers Dealers Distributors in India

we supply Monel 400 Valves with high quality and best affordable rate., Monel 400 Manifold Valves, Monel DIN 2.4360, 2.4375 Manifold Valves, Monel UNS N04400 Manifold Valves, Monel UNS N05500 Manifold Valves, Monel Manifold Valves, Monel K500 Manifold Valves, Monel 400 Manifold Valves Distributors in India... Read more

Duplex Steel Manifold Valve
Duplex Steel Manifold Valve Suppliers Dealers Distributors in India

We specialize in the oil & gas industries and offer specialty Duplex Steel Manifold Valve, UNS S31803 Manifold Valve Suppliers in India, DIN 1.4410 Super Duplex Steel Manifold Valve, ASME B 16.10 UNS S32760 Manifold Valve, ASTM A351 Duplex Steel UNS S31803, ASME SA494 Duplex Steel UNS S31803, Duplex Steel UNS S31803 Class 900 Manifold Valve Exporters in India. Read more

254 Smo Manifold Valve
254 Smo Manifold Valve Suppliers Dealers Distributors in India

Manifold Valve, 254 Smo Manifold Valve, Cryogenic 254 SMO gate valve, ASME B16.34 SS 254 SMO Manifold Valve, Stainless Steel 254 SMO Manifold Valve, ASTM A351 SS SMO 254 Manifold Valve, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34, 254 SMO Industrial Valves, Stainless Steel 254SMO Manifold Valves Suppliers in India.. Read more

904l Stainless Steel Manifold Valve
904l Stainless Steel Industrial Manifold Valve Suppliers Dealers Distributors in India

Manifold Valve, 904l Stainless Steel Manifold Valve, 904l Stainless Steel Industrial Manifold Valve, SS 904L ASTM A351 Manifold Valve, ASME B 16.10 Manifold Valve, ASME B 16.5, ASME B 16.25, ASME B 16.34, UNS N08904, 1.4539, BS 904S13, JIS SUS 890L Manifold Valve , 904l Stainless Steel Manifold Valves, High Pressure 904l Stainless Steel Manifold Valve Exporters in India.. Read more

Inconel Manifold Valve
Inconel Manifold Valve Suppliers Dealers Distributors in India

Manifold Valves, Inconel Manifold Valve, Inconel 600 Manifold Valve, INCONEL WERKSTOFF NR. 2.4816 Manifold Valves, Inconel 600 N06600 Manifold Valves, Inconel 2.4816 Manifold Valves, UNS N06600 Manifold Valves, Inconel 600 Manifold Valves, API 600/ BS1414, ALLOY 600 Manifold Valves, ASME B 16.5 Manifold Valves Dealers in India.. Read more

Titanium Manifold Valve
Titanium Manifold Valve Suppliers Dealers Distributors in India

We are the one of the top most manufacturers of different types of Industrial Manifold Valve, We have a large inventory of Manifold Valve in a variety of options., Largest Suppliers of Titanium Gr2(B367 Gr C2) Manifold Valve, Titanium Gr3(B367 Gr C3) Manifold Valve, Titanium TA1, TA2, Titanium Gr.5, Gr6 Manifold Valve,Gr7 ,Gr12, Titanium TC4,TA9,TA10 Dealers in India.. Read more

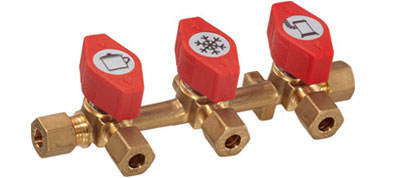

Brass Manifold Valve
Brass Manifold Valve Suppliers Dealers Distributors in India

Brass Manifold Valve, brass Manifold Valve price list in India, brass Manifold Valve 1/2, 1 inch brass Manifold Valve, brass Manifold Valve 3/4, brass Manifold Valve price list india, 3 inch brass check valve, brass Manifold Valve price list, 1/2 inch Manifold Valve, 4 brass Manifold Valve, 3/4 brass Manifold Valve, 4 inch brass Manifold Valve, 2 inch brass Manifold Valve Read more

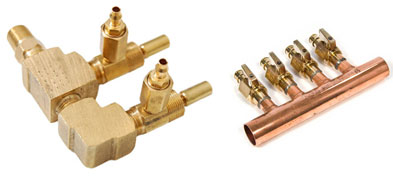

Copper Manifold Valve
Copper Manifold Valve Suppliers Dealers Distributors in India

Experience Of 50 Years In Copper Knife Gate Valve, We have a large inventory of Copper Manifold Valve, Copper 90/10 Manifold Valve, Copper 70/30 Manifold Valve, Copper Cu-Ni 70/30 Manifold Valve, Copper 90/10 Manifold Valve Dealers, Copper 70/30 Manifold Valve Suppliers, Copper Cu-Ni 70/30 Manifold Valve Manufacturer, Copper Cu-Ni 90/10 Manifold Valve Manufacturers in India. Read more

Manifold Valves Others

Project Reference

PROJECT

YEAR

Project : Water treatment plant at Malawi, AFRICA.

1984

Project : Ambatale Raw Water Intake Pump Station, SRILANKA.

1985

Project :  Synthetic Fibre Plant, INDONESIA.

1991

Project  :     Water  Treatment  Plant  for  Phoenix-II  Paper plant, THAILAND.

1992

Petron Civil Engineering Ltd., Bombay

1992

Project : Water Supply Project, MAURITIUS.

Paharpur Cooling Towers Ltd., Calcutta Project :  National Petrochemical Co., IRAN

1993

Ion Exchange India Ltd., Project: In INDONESIA

1993

GEPL Holdings Pte. Ltd., SINGAPORE. Project : In PAKISTAN

1997

UEM Inc., USA

1998

Project: Shah Alam Sewage treatment plant, MALAYSIA

Environmental Engineering Services (Asia)Pte. Ltd., Singapore.

1999

Project : Taman Plangi Indah Phase-1 Sewage Treatment Plant, MALAYSIA.

Gulfar Engineering & Contracting LLC, OMAN.
Project: Salalah Sewage Pumping plant , Muscat, OMAN. CONULTANTS : Parsons Engineering Science, Inc

2000

Risterm Negoce SA, Belgium.
Project : Sappi Paper Mills , BELGIUM.

2004

Saudi Berkefeld Filter Co. Ltd., Riyadh, Saudi Arabia Project : Al-Qurayat SWT and Rafha  wastewater  treatment Plant, SAUDI ARABIA
CONSULTANTS : Tawafiq Engineering  Consultant  office and Al-Tawfeek Office, SAUDI ARABIA  (Through   Jash Schutte Industrie service  GmbH,Germany
)

2004

Metax Engineering Corporation, Singapore
Project : Kim Chuan STW – Contract 2, SINGAPORE

2004

A. K. Almoayed Group WLL, Baharain
Project : #49905, Pumping Station E4, Habib Awachi, BAHRAIN.
CONSULTANTS: Watson Khonji Consulting Engineers, Bahrain.

2004

Satria Damai SDN BHD, Malaysia Project : SMART, MALAYSIA.
CONSULTANTS : MM Consultants SDN. BHD.

2004

Risterm Negoce, Belgium
Project : Sappi Paper mills , BELGIUM

2004

AVM International Ltd. A/S, Norway Project : Yapisal Erzurum, TURKEY
CONSULTANTS: ER-GE Design Engg. Consultant & Trade Ltd. Co., Istanbul

2005

Stealth valve & Controls Ltd., Canada
Project : Seymour- Capilano Filtration Project, Greater Vancouver water District., CANADA
CONSULTANTS : SSBV Consultants Inc.,

2005

Comfort Rich Enterprises Limited , Hongkong
Project : WSD Tuen  Mun Stage 5 Project, HONGKONG

2005

ROFI UK Ltd./ Syl-Mac International
Project : Erbil-Ifraz water project, IRAQ by Fluor AMEC LLC, Dubai.

2005

ROFI UK Ltd./ Syl-Mac International
Project : Nasiriya Water Project, IRAQ by Fluor AMEC LLC, Dubai

2005

ROFI UK Ltd./ Syl-Mac International
Project : Balad Rooz Water Project, IRAQ by Fluor AMEC LLC, Dubai

2005

Degremont.,
Project : Bangkhen Water Treatment Plant at Bangkok, Contract No. G-BK-7, THAILAND
CONSULTANTS: Nihon Suideo Consultants Co. Ltd. In Associated with Team Consulting Engineering and Management Co. Ltd., Thailand.

2005

Stealth valve & Controls Ltd., Canada
Project : Seymour- Capilano Filtration Project, Greater Vancouver water District., CANADA
CONSULTANTS : SSBV Consultants Inc.,

2005

Metax Engineering Corporation Limited, Singapore. Project – Tuas pumping station of PUB, SINGAPORE

2006

UEM India Limited, N. Delhi, Project : Pig farm project, MEXICO

2006

AVM International Limited, Norway Project : Water treatment plant, GHANA

2006

Spaans Babcock Limited, England, Project :- Liandysul WWTW

2006

Comfort Rich Enterprises Limited, Hong Kong, Project : Shatin project, HONGKONG

2006

ROFI UK Ltd. UK for Fluor AMEC LLC , Project :  Nasiriya Water Project, IRAQ.

2006

Kruger A/S Denmark.
Project : Oset Water Treatment Plant, Oslo, NORWAY

2006

Perrier  Sorem,  France, Project: - Paul Bert, FRANCE.

2007

Ebara Corporation Japan,
Project: - Astana City project, KAZAKHSTAN. CONSULTANTS : NJS Consultants Co. Ltd.

2007

Environmental engineering Services, Oman,
Project: - Nizwa Sewerage Treatment Plant, OMAN. CONSULTANTS : National Engineering Services Pakistan & Partners.

2007

The National Co. For Mech. & Elect. Works Ltd., Kuwait Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2007

Aqua Tech International, Oman, / Contractors Technical Services Co. LLC, Oman.
Project: Mukhaizana MVC Project, OMAN

2007

Shutte GmbH, Germany CONSULTANTS : UHDE, Germany

2007

Paramount Limited, Baroda
Project: Petrotrin Refinery Project, TRINIDAD & TOBAGO.
CONSULTANTS : Bechtel.



2007

Syl Mac International, Mumbai.
Project : Cheung Sha catchwater, HONG KONG.

2007

A.   K. Almoayed Group WLL, Baharain,
Project : A4 pumping station, BAHRAIN by Habib Awachi
CONSULTANTS: Watson Khonji Consulting Engineers, BAHRAIN

2007

A.   K. Almoayed Group WLL, Baharain,
Project : SAAR Sewarage Scheme BAHRAIN, by Habib Awachi,
CONSULTANTS: Watson Khonji Consulting Engineers, BAHRAIN

2007

Comfort Rich Enterprises Limited, Hong Kong, Project : Tai Po project , HONGKONG

2007

Perrier Sorem, France,
Project :- Cyco FOS – 480 MW Power project, FRANCE by Alstom, France.

2007

Comfort Rich, Hong Kong.
Project: - Kwun Tong Pumping Station, HONG KONG

2007

Spanns Babcock, U.K.
Project: Thames Water Supply Project. CONSULTANTS :

2007

Comfort Rich Supplies Co., Ltd, Hong Kong.
Project : Shatin STW Replacement project, HONG KONG

2007

Syl Mac International, Mumbai. Project : HONG KONG

2007

Project : Cheung Sha catchwater, HONG KONG.

2007

Ryoden Engineering Co., Ltd., Hong Kong.
Project : Nam Sang Wai SPS, Sha Po SPS, Kam Tin SPS, HONG KONG.
CONSULTANTS :

2008

Ryoden Engineering Co., Ltd., Hong Kong.
Project : Nam Sang Wai SPS, Sha Po SPS, Kam Tin SPS, HONG KONG
CONSULTANTS :

2008

Comfort Rich Supplies Co., Ltd, Hong Kong.
Project : Sheung Wan Storm water PS. HONG KONG.

2008

WB Engineering & Consultancy Pte. Ltd., China Project : Punggol Serangoon PS, Intake Structure & Ancillary Works, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2008

Comfort Rich Supplies Co., Ltd, Hong Kong. Project : Shatin Storm water PS. HONG KONG.

2008

WB Engineering & Consultancy Pte. Ltd., CHINA. Project : ULU Pandan Tidal gate, SINGAPORE. CONSULTANTS :

2008

Star Steel International LLC, Dubai Project : Rebar Mill, Dubai.
Consultant : MECON

2008

Project : Astana Water Supply and Sewerage Project KAZAKHSTAN.
CONSULTANTS : NJS Consultants Co. Ltd.

2008



WB Engineering & Consultancy Pte. Ltd., China Project : Punggol Serangoon PS, Intake Structure & Ancillary Works, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2008

WB Engineering & Consultancy Pte. Ltd., China Project : SINGAPORE.

2008

Dutco Tennant LLC, Dubai
Project : NASS Contracting Co. WLL, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2008

Dutco Tennant LLC, Dubai
Project : NASS Contracting Co. WLL, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2008

Ebara Corporation Japan,
Project: - Astana City project, KAZAKHSTAN. CONSULTANTS : NJS Consultants Co. Ltd.

2008

A.K. Almoayed Group WLL, Baharain, Project : A1 Pumping Station, BAHRAIN Al Hassanain mechanical Co.,
Consultant : Watson Khonji .

2008

Degremont Limited, Gurgaon, India
Project: - Nhon Trach Water Supply Project, VIATNAM CONSULTANTS : Nippon Koei Co.Ltd., JAPAN and Nihon Suido Consultant Co., Ltd., VIATNAM

2008

Global Engineering Systems FZ, Sharjah, UAE Project: -
CONSULTANTS :

2009

Comfort Rich Supplies Co., Ltd, Hong Kong. Project: Ma On Shan SPS, HONG KONG CONSULTANTS :

2009

Kharafi National KSC (Closed), Kuwait
Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2009

Kharafi National KSC (Closed), Kuwait
Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2009

Spanns Babcock Ltd., U.K.
Project: Howdon WWTW Project UK CONSULTANTS :

2009

Spanns Babcock Ltd., U.K..
Project: Thames Water Supply Project UK CONSULTANTS :

2009

Astra Marketing Limited, Bangkok, Thailand.
Project: MWA’s Raw Water Pumping Station No. 1 at Bang Khen WTP, Bangkok, THAILAND.
CONSULTANTS :

2009

Gulf Petrochemical Services & Trdg. LLC, Oman
Project: C-170, Rushtaq Sewage Pumping Station, OMAN CONSULTANTS :

2009

Lutz-Jesco Middle East FZE, Sharjah, U. A. E. Project:
CONSULTANTS :

2009

PLS France for Degremont Ltd., France.
Project: Al Dur Independent Water & Power Project, BAHRAIN
CONSULTANTS :

2009

PVT Engineering SDN BHD, Malaysia Project: Kepala Batas, MALAYSIA CONSULTANTS : RPM Engineers SDN BHD

2009

WB Engineering & Consultancy Pte. Ltd., China
Project : Contract 6, Punggol Serangoon Reservior Scheme, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2009

Dutco Tennant LLC, Dubai
Project : Shk Khalifa Highway Project, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2009



Manifold Valve Price

Working Pressure 3000psi Manifolds Valve Stainless Steel 316L
FOB Price : US $88.0-90.0 / Piece
2 way stainless steel valve manifolds, single block and bleed valve
FOB Price : US $21.8-78.5 / Piece
1/2" NPT Threaded SS316 2 Way Water Manifold Valve
FOB Price : US $15.2-78.5 / Piece
2 way stainless pressure gauge manifold valve
FOB Price : US $21-41 / Piece
high pressure stainless steel manifolds for gas systems manifold needle valve
FOB Price : US $70.0-80.0 / Piece
2 Way Manifold Valves
FOB Price : US $70.0-90.0 / Piece

For More Price Please Contact Us :  exports@citizenltd.com

Tag : 2 Way Manifold valve Price in India, 2 Valve Manifold-H Type 2017 Price, 2 Valve Manifold-T Type Price in India, 2 Valve Manifold-S Type Price in India, 3 Way Manifold Valve Price in India, 3 Valve Manifold-H Type Price in India, 3 Valve Manifold-T Type Price in India, 3 Valve Manifold-S Type Price in India, Manifold Valves Price in India, Manifold Valves Price in India, 3 Way Manifolds Valve Price in India, 5 Way Manifolds Valve Price in India, 2-5-3 Way Manifolds Valve direct mounting Price in India, Manifold valve Materials Price in India, 3 way manifolds Price in India, manifold pressure valve Price in India, manifold pressure reducing valve Price in India



Manifold Valves Ready Stock Available

2 Way Manifold valve, 2 Valve Manifold-H Type, 2 Valve Manifold-T Type, 2 Valve Manifold-S Type, 3 Way Manifold Valve, 3 Valve Manifold-H Type, 3 Valve Manifold-T Type, 3 Valve Manifold-S Type, Manifold Valves manufacturers, Manifold Valves Suppliers, 3 Way Manifolds Valve, 5 Way Manifolds Valve, 2-5-3 Way Manifolds Valve direct mounting

Tags : 5 way manifold, 5 valve manifold, 3 valve manifolds, 2 valve manifolds, 5 way manifold manufacturers, 5 valve manifold manufacturers, 5 way manifold exporters, manifold valves manufacturers, 5 valve manifold exporters, 5 way manifold suppliers, 5 valve manifold suppliers, manifold valves, manifold valves from India, 3 way manifolds, manifold pressure valve, manifold pressure reducing valve, 3 valve manifolds manufacturers, 3 way manifolds manufacturers, 2 way manifolds, valve manifolds manufacturers, 2 way manifolds manufacturers, valve manifold, pressure reducing valve manifold



Enquiry Form

Contact Us

CITIZEN METALS PVT. LTD (EXPORT DIVISION)

Contact Person:MR.RAJENDRA D.JAIN (EXPORT DIRECTOR)
 Address:SHOP NO G/3; HARARWALA BUILDING COMPOUND; ARDESHIRDADY STREET; S.V.P ROAD; MUMBAI-400 004, INDIA
 Phone:+91-22-61905600 (100 Lines)
 Fax:+91-22-61905666
 Email:

 exports@citizenltd.com

 Skype Id:citizenmetal
 Whats App:+91-9820356311

CITIZEN METALS OVERSEAS OFFICES

india
Australia
Egypt
SaudiArabia
Qatar
uae
Turkey
Indonesia
Malaysia
Singapore
Canada
USA
Mexico


OUR SUMMARY:
Review Date
Reviewed Product
Manifold Valve
Author Rating
5Manifold ValveManifold ValveManifold ValveManifold ValveManifold Valve
