Jacketed Valve Manufacturers / Suppliers

Jacketed Valve, Industrial Jacketed Valve, Jacketed Valves Dealers, Jacketed Valves Distributors, Jacketed Valves Exporters, Jacketed Valves Suppliers, Jacketed Valve Manufacturers in india, Jacketed Valves Price in India


Jacketed Valves Dealers Distributors in Mumbai Pune Chennai India

Jacketed Ball Valve, Steam Jacketed Ball Valve, Sulphur Steam Jacketed Ball Valve, Sulfur Jacketed Ball, Sulphur Ball Valve, 3 Way Jacketed Ball Valve, Jacketed Ball Valve Flanged End, Hand Lever Operated Jacketed Ball Valves, Gear Operated Jacketed Ball Valve, Pneumatic Operated Steam Jacketed Ball Valves, Pneumatic Actuator Operated Jacketed Ball Valves, Pneumatic Actuated Jacketed Ball Valves

Air Operated Jacketed Ball Valve, Remote Operated Jacketed Ball Valve India, Half Jacketed Ball Valve, Full Jacketed Ball Valves, CS Steam Jacketed Ball Valves (Cast Steel Ball Valve), SS 304/304L Jacketed Ball Valve Manufacturer, SS 316/316L Jacketed Ball Valve Exporters, Jacketed Ball Valve for Sulphur, Steam Jacketed Ball Valves for Naptha, Jakceted Ball Valve for Bitumen, Jacketed Ball Valves for Sulfur Application, Jacketed Ball Valve for Asphalt, Jacketed Ball Valve Pneumatic Operated, Jacketed Ball Valve Dealers / Distributors / Exporters / Suppliers india

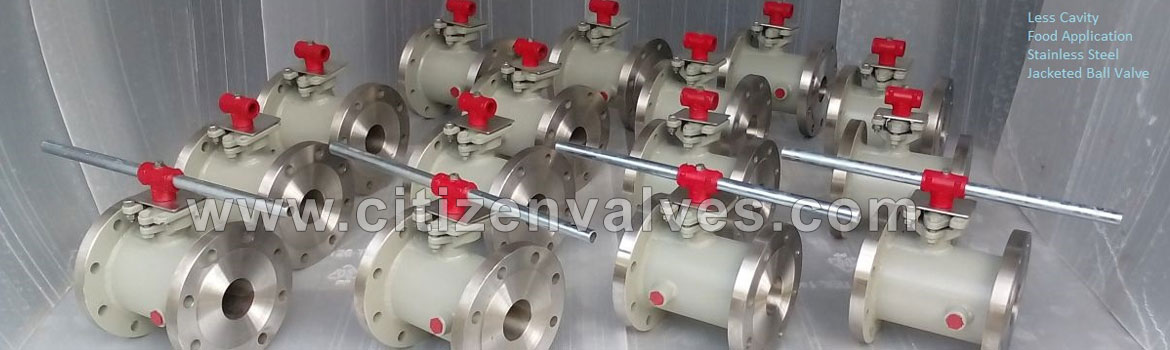

JACKETED VALVES MANUFACTURERS IN INDIA

½”  To 4” (FB & RB ) Class #150 Two Piece Ball Valve

Description : We offer a range of FULL JACKETED BALL VALVES. The jacket covers the body from one flange to the other flange. The body is modified by adding oversize flanges. Example: a 3" x 4" jacketed valve has the nominal bore of 3" (DN 80) and the flange size is 4"(DN 100). This to allow enough space for bolting  clearance.
The jackets assure consistent valve heating or cooling of the process media to prevent crystallization or seizing of flow media. This applies especially to media like bitumen and liquid sulfur. In addition, the efficient flow of media is ensured through the elimination of pockets.
Steam can be used as carrier for heating media. Following quality assurance rules, every valve is tested again after the jackets have been welded to the body. Jackets are rated for heat transfer media pressures up to 150 psi (10 bar)
Standard, jacketed ball valves are delivered in carbon steel and a variety of stainless steel materials. Other special materials are available upon special request.


Jacketted Ball Valves ( Series 50 )
Features & Benefits :
  • Sand casting/ Bar Stock body construction.
  • Single Piece Body Construction
  • Full jacketing.
  • Fire safe  in compliance with API 607
  • Unique Gland sealing arrangement
FEA Analysis
Jacketed Ball Valves
Materials

Body, Ball & Seat: WCB/CF8/CF8M /Others On request
Seats & Seals: PTFE/RPTFE/ACETAL/Others on Request
Jacket : Steel/CF8 /Others On request
End Connections: Flanged End

Codes & Standards :

  • End To End as per ANSI B 16.10
  • Testing standard BS 6755/ EN 12266 - Part 1
TEST PRESSURE IN BAR
PRESSURE RATING CLASS             #150    &  #300
Hyd. Shell 30 78
Seat 22 58
Air Seat 6.2 6.2

Jacketted Ball Valves ( Series 50 )
Sr. No. Items Sr. No. Items
1 Body 8 Seat
2 Jacket 9 Stem Thrust washer
3 Ball 10 Stem-o ring
4 Stem 11 Stem Seal
5 Insert Connector 12 Stem Spacer
6 Insert Washer 13 Gland Bearing
7 Body Seal 14 Gland
Stem jacketed ball valve

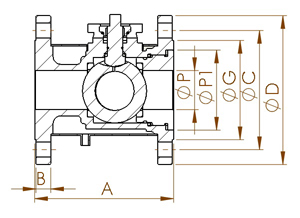

Dimensional Data (In MM)

Dim. Size A ΦP ΦD B ΦG ΦC Hole
Φ
No. of Hole
1X2 127 25 150 14.3 92.1 120.7 19 4
1½ X 2½ 165      38 180 15.9 104.8 139.7 19 4
2X3 178 50 190.5 17.5 127 152.4 19 8
3X4 203 80 230 22.3 152.4 190.5 19 8
4X6 229 100 280 23.9 215.9 241.3 22 8

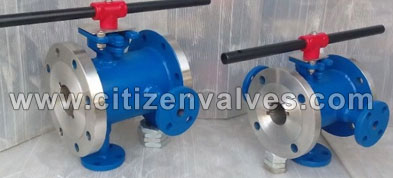

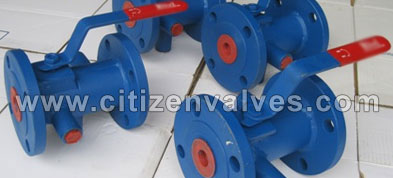

Jacketed Ball Valves

Jacketed Ball Valves

Single Piece Design
Regular (Reduce) Bore Fully Jacketed Ball Valve
Flanged End Connection
Hand Lever / Gear / Pneumatic Operation

Citizen Metal offers a range of Fully Jacketed Ball Valves. The jacket covers the body from one flange to the other flange. The body is modified by adding oversize flanges. As example: 2" x 3" Jacketed Ball Valve has the nominal bore of 2" (DN 50) and the flange size is 3"(DN 80). It allows enough space for bolting clearance.



Jacketed Ball Valve Dimensions

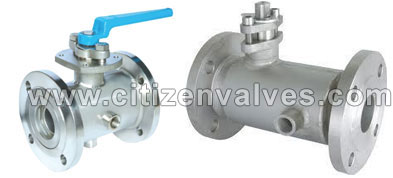

Jacketed Ball Valve (Full Jacketed Ball Valve)
Jacketed Ball Valve (Full Jacketed Ball Valve)

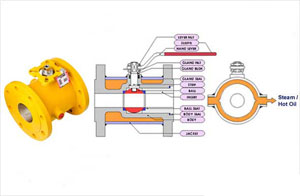

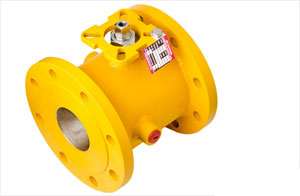

Full Jacketed Ball Valve
Full Jacketed Ball Valve

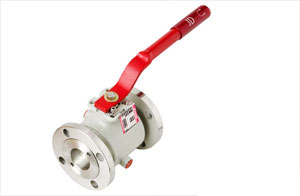

Half Jacketed Ball Valve
Half Jacketed Ball Valve

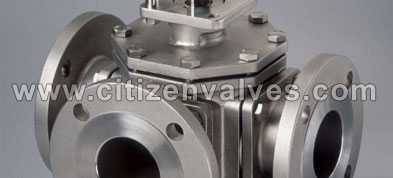

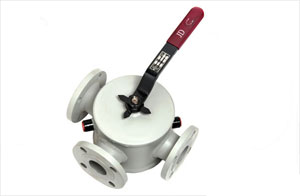

Three Way Jacketed Ball Valve

Three Way Jacketed Ball Valve

Citizen Metal offers a range of Fully Jacketed Ball Valves. The jacket covers the body from one flange to the other flange. The body is modified by adding oversize flanges. As example: 2" x 3" Jacketed Ball Valve has the nominal bore of 2" (DN 50) and the flange size is 3"(DN 80). It allows enough space for bolting clearance.

The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Jacketed Ball Valve (Heating Jacket Ball Valve) with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid. This applies especially to media like bitumen and liquid sulfur. In addition, the efficient flow of media is ensured through the elimination of pockets.

Steam, can be used as carrier for heating media. Following quality assurance rules, every valve is tested again after the Jackets have been welded (Fabricated) to the body. Jacket Hydraulic & Air Test is carried out at 6.0 Kg. /Cm2.

Generally standard Jacketed Ball Valves are delivered in carbon steel and different types of stainless steel materials. Other special materials are available upon special request.

Citizen Metals Jacketed P.T.F.E. seated Ball Valves gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20° C. to +220° C. Electro-Polished, Buff Finish & Ultra clean valve also provided for Food & Pharmaceutical Industries on request.

VALVE OPERATION: Citizen Metals Ball Valves are generally supplied with manual hand lever or gear unit operated, depending on valve size. Citizen Metals also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation.

WIDE RANGE OF BODY SEAT, SEAL & PACKING

Citizen Metals Ball Valves are also available with different type of Seat, Seal & Packing material such as P.T.F.E. (Virgin) / Glass Filled P.T.F.E. / Carbon Filled P.T.F.E. / Graphite (Grafoil) / PEEK to suit special requirement of client.

Salient Features:

  • High Performance Ball Valve
  • Longer Life
  • Positive Shut off
  • Quick in Action
  • No Lubrication
  • Compact Design
  • Low Pressure Drop
  • Simplicity
  • Heating / Cooling Jackets
  • Wide selection of Different Jacket Material

Design & Testing International Standard:

Valve Design : BS 5351 / ANSI B 16.34 / API 6D
Pressure Testing : BS 6755 Part II / API 598 / API 6D
Face To Face : As Per ANSI B 16.10
Flange Drilling : ANSI B 16.5 / BS 10 Table / DIN / IS 6392
Size Range : ½" x 1" To 8" x 10"

Material of Construction:

Body / Insert: Cast Carbon Steel to ASTM A 216 GR. WCB, Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M
Ball: Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M, Hast Alloy B / C, ASTM A 351 GR. CN 7M (Alloy 20)
Stem: AISI 410 (S.S. 410 13% Cr. Steel), AISI 304 (S.S. 304), AISI 316 (S.S. 316), AISI 304L (S.S. 304L), AISI 316L (S.S. 316L), Hast Alloy B / C, Alloy 20
Ball Seat / Gland Seal / Stem Seal: P.T.F.E. Virgin, P.T.F.E. Glass Filled, P.T.F.E. Carbon Filled, Grafoil
Jacket Material: M.S., S.S. 304, S.S. 316, S.S. 304L, S.S. 316L

Jacketed Ball Valve Range:
Jacketed Ball Valve, Jacketed Ball Valve Manufacturer, Steam Jacketed Ball Valve Exporters, Sulphur Steam Jacketed Ball Valve, Sulfur Jacketed Ball Stockist, Sulphur Ball Valve Manufacturer, Sulfur Ball Valves Exporters, 3 Way Jacketed Ball Valve Exporters, 3 Way Steam Jacketed Ball Valve Manufacturer, Jacketed Ball Valve Flanged End, Hand Lever Operated Jacketed Ball Valves , Gear Operated Jacketed Ball Valve Manufacturer, Pneumatic Operated Steam Jacketed Ball Valves, Pneumatic Actuator Operated Jacketed Ball Valves, Pneumatic Actuated Jacketed Ball Valves, Air Operated Jacketed Ball Valve, Remote Operated Jacketed Ball Valve India, Half Jacketed Ball Valve Manufacturer, Full Jacketed Ball Valves, CS Steam Jacketed Ball Valves (Cast Steel Ball Valve), SS 304/304L Jacketed Ball Valve Manufacturer, SS 316/316L Jacketed Ball Valve Exporters, Jacketed Ball Valve for Sulphur, Steam Jacketed Ball Valves for Naptha, Jakceted Ball Valve for Bitumen, Jacketed Ball Valves for Sulfur Application, Jacketed Ball Valve for Asphalt, Jacketed Ball Valve Pneumatic Operated, Jacketed Ball Valve Manufacturer, Exporter & Stockist.

Valves can be jacketed with a fabricated (weld-on) jacket or a ControHeat® bolt-on jacket.

We design, fabricate, and test our valve jackets in accordance with the ASME Boiler and Pressure Vessel Code, Section VIII, Division 1. All valves are pressure and leak tested before and after jacketing. There are numerous jacketing considerations, including flange size, full or partial coverage, types and locations of heating medium connections, bonnet jackets or additional heat coverage for specific areas, and materials of construction. Before specifying fabricated jacketed valves, designers should carefully consider the thermal requirements of the process along with the flange sizes and valve types to be used. For example, most large, full-port ball valves are available only in two- or three-piece configurations. Fabricating full jackets on these types of valves can be very expensive. Metal-seated ball and plug valves are also difficult to jacket without compromising leak-rate standards. In these instances, designers may be better served to consider ControHeat® bolt-on heating jackets.



Fabricated Jacket
Fabricated Jacket

Type A: Partial Jacket, Core-Size Flanges. The original valve body is maintained. The jacket terminates a short distance from the back of the flange. Type A jacketed valves are used with swaged and non-reducing insert-flanged jacketed piping where broad process temperature ranges are acceptable.



ControHeat Bolt-On Jacket
ControHeat® Bolt-On Jacket

Type B: Full Jacket, Jacket-Size Flanges. The valve body is lengthened, and the flanges are replaced with oversize flanges. The jacket covers the body of the valve and extends flange to flange, terminating at the back of the oversize flange. The new face-to-face dimension is the same as a standard valve of size equal to the flange size. For example, a Type B 3-in. X 4-in. jacketed plug valve has the face-to-face dimension of a 4-in. plug valve. Type B jacketed valves are used with standard and reducing insert-flanged jacketed piping. Partial Jacket
Type C: Full Jacket, Core-Size Flanges.. The original valve body is maintained, and the valve flange bolt holes are modified with tapped inserts. The jacket covers the body of the valve and extends flange to flange, terminating on the periphery of the flanges. Type C jacketed valves must be installed by inserting and threading studs from the adjacent mating flanges. The tapped inserts are double-seal welded on front and back to contain the heating fluid. Type C jacketed valves are used with swaged and non-reducing insert-flanged jacketed piping. Partial Jacket
Type D: Full Jacket, Jacket-Size Flanges, Short Body. The valve flanges are replaced with oversize flanges. The jacket covers the body of the valve and extends flange to flange, terminating at the back of the oversize flange. The face-to-face dimension is the same as a standard valve of size equal to the body size. For example, a Type D 3-in. X 4-in. jacketed globe-type control valve has the face-to-face dimension of a 3-in. globe-type control valve. Type D jacketed valves are used with standard and reducing insert-flanged jacketed piping, usually in very dense piping systems where space is limited. Partial Jacket

Jacketed Valves Materials

Stainless Steel Jacketed Valves
Stainless Steel Jacketed Valves Suppliers Dealers Distributors in India

Jacketed Valves, Stainless Steel Forged Steel 304 Valve, Stainless Steel F321 Jacketed Valves, F347 Jacketed Valves, SS High Pressure Jacketed Valves, Class 150, 300, 600, 900, 1/2 inch stainless steel Jacketed Valves, 1/2" stainless steel Jacketed Valves, 3/4 Size Jacketed Valves, 4 inch stainless steel Jacketed Valves, Industrial Jacketed Valves, Stainless Steel 316 Jacketed Valves Suppliers in India... Read more

Alloy Steel Jacketed Valves
Alloy Steel Jacketed Valves Suppliers Dealers Distributors in India

Alloy Steel Jacketed Valves, Chrome Moly Alloy A217 / SA217 Cast Valves, WC9 Alloy Steel Globe Valve, 4 Inch, 2500#, A350 LF3, A352 LC3, A182 F5A/F5, A217 C5, A182 F9, A217 C12, A182 F11, A217 WC6, A182 F22, A217 WC9, A182 F91, A217 C12A, 10 Inch, RF, WC9 Gate Valve, PSB, 12 Inch, 2500 LB, Alloy Steel Valves Dealers & Distributors in India.. Read more

Carbon Steel Jacketed Valves
Carbon Steel Jacketed Valves Suppliers Dealers Distributors in India

Jacketed Valves, Carbon Steel Jacketed Valves, Carbon Steel Valve Material, ASTM A350 LF2 Jacketed Valves, Carbon Steel ASTM A106 Jacketed Valves, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34 ASTM A105N Jacketed Valves, Cast Carbon Steel Jacketed Valves, API 600 Cast Steel Jacketed Valves, Forged Carbon Steel Jacketed Valves Exporters & Suppliers In India.. Read more

Hastelloy Jacketed Valves
Hastelloy Jacketed Valves Suppliers Dealers Distributors in India

Hastelloy Jacketed Valves, Hastelloy C276 Jacketed Valves, Hastelloy C22 Jacketed Valves, Hastelloy B2 Jacketed Valves, Hastelloy C276/C22 Valves, ASTM B 435 Hastelloy X Jacketed Valves, Hastelloy B2 Jacketed Valves, ASME B16.34 Jacketed Valves, UNS N10665 Hastelloy B2 Jacketed Valves, UNS N10276 Hastelloy C276/C22 Manufacturer / Suppliers in Mumbai India. Read more

Alloy 20 Jacketed Valves
Alloy 20 Jacketed Valves Suppliers Dealers Distributors in India

Wholesale Various High Quality Industrial Jacketed Valves Products from Citizen Metals, Largest Suppliers of Alloy 20 Jacketed Valves, Alloy 20 Jacketed Valves Dealers, Alloy 20 Check Valve, UNS N08020 Alloy 20 Jacketed Valves, Alloy 20 Jacketed Valves Suppliers, Alloy 20 Jacketed Valves Manufacturer, Alloy 20 Jacketed Valves Manufacturers in India. Read more

Nickel 200/201 Jacketed Valves
Nickel 200/201 Jacketed Valves Suppliers Dealers Distributors in India

We supply broad range of Nickel 200/201 Jacketed Valves, Leading Suppliers of Nickel 200/201 Valves, Ni-200 Jacketed Valves, Ni-201 Jacketed Valves, Uns N02200 Jacketed Valves, Uns N02201 Jacketed Valves, Nickel 200/201 Jacketed Valves Dealers, Jacketed Valves Suppliers, Nickel 200/201 Jacketed Valves Manufacturer, Nickel 200/201 Jacketed Valves Manufacturers in India. Read more

Monel® Jacketed Valves
Monel 400 Jacketed Valves Suppliers Dealers Distributors in India

we supply Monel 400 Valves with high quality and best affordable rate., Monel 400 Jacketed Valves, Monel DIN 2.4360, 2.4375 Jacketed Valves, Monel UNS N04400 Jacketed Valves, Monel UNS N05500 Jacketed Valves, Monel Jacketed Valves, Monel K500 Jacketed Valves, Monel 400 Jacketed Valves Distributors in India... Read more

Duplex Steel Jacketed Valves
Duplex Steel Jacketed Valves Suppliers Dealers Distributors in India

We specialize in the oil & gas industries and offer specialty Duplex Steel Jacketed Valves, UNS S31803 Jacketed Valves Suppliers in India, DIN 1.4410 Super Duplex Steel Jacketed Valves, ASME B 16.10 UNS S32760 Jacketed Valves, ASTM A351 Duplex Steel UNS S31803, ASME SA494 Duplex Steel UNS S31803, Duplex Steel UNS S31803 Class 900 Jacketed Valves Exporters in India. Read more

254 Smo Jacketed Valves
254 Smo Jacketed Valves Suppliers Dealers Distributors in India

Jacketed Valves, 254 Smo Jacketed Valves, Cryogenic 254 SMO gate valve, ASME B16.34 SS 254 SMO Jacketed Valves, Stainless Steel 254 SMO Jacketed Valves, ASTM A351 SS SMO 254 Jacketed Valves, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34, 254 SMO Industrial Valves, Stainless Steel 254SMO Jacketed Valves Suppliers in India.. Read more

904l Stainless Steel Jacketed Valves
904l Stainless Steel Industrial Jacketed Valves Suppliers Dealers Distributors in India

Jacketed Valves, 904l Stainless Steel Jacketed Valves, 904l Stainless Steel Industrial Jacketed Valves, SS 904L ASTM A351 Jacketed Valves, ASME B 16.10 Jacketed Valves, ASME B 16.5, ASME B 16.25, ASME B 16.34, UNS N08904, 1.4539, BS 904S13, JIS SUS 890L Jacketed Valves , 904l Stainless Steel Jacketed Valves, High Pressure 904l Stainless Steel Jacketed Valves Exporters in India.. Read more

Inconel Jacketed Valves
Inconel Jacketed Valves Suppliers Dealers Distributors in India

Jacketed Valves, Inconel Jacketed Valves, Inconel 600 Jacketed Valves, INCONEL WERKSTOFF NR. 2.4816 Jacketed Valves, Inconel 600 N06600 Jacketed Valves, Inconel 2.4816 Jacketed Valves, UNS N06600 Jacketed Valves, Inconel 600 Jacketed Valves, API 600/ BS1414, ALLOY 600 Jacketed Valves, ASME B 16.5 Jacketed Valves Dealers in India.. Read more

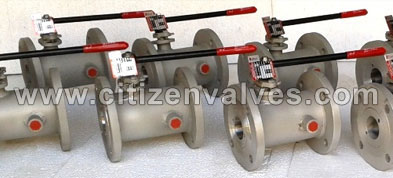

Titanium Jacketed Valves
Titanium Jacketed Valves Suppliers Dealers Distributors in India

We are the one of the top most manufacturers of different types of Industrial Jacketed Valves, We have a large inventory of Jacketed Valves in a variety of options., Largest Suppliers of Titanium Gr2(B367 Gr C2) Jacketed Valves, Titanium Gr3(B367 Gr C3) Jacketed Valves, Titanium TA1, TA2, Titanium Gr.5, Gr6 Jacketed Valves,Gr7 ,Gr12, Titanium TC4,TA9,TA10 Dealers in India.. Read more

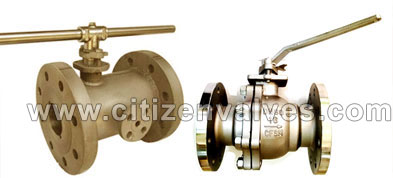

Brass Jacketed Valves
Brass Jacketed Valves Suppliers Dealers Distributors in India

Brass Jacketed Valves, brass Jacketed Valves price list in India, brass Jacketed Valves 1/2, 1 inch brass Jacketed Valves, brass Jacketed Valves 3/4, brass Jacketed Valves price list india, 3 inch brass check valve, brass Jacketed Valves price list, 1/2 inch Jacketed Valves, 4 brass Jacketed Valves, 3/4 brass Jacketed Valves, 4 inch brass Jacketed Valves, 2 inch brass Jacketed Valves Read more

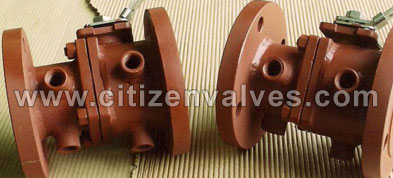

Copper Jacketed Valves
Copper Jacketed Valves Suppliers Dealers Distributors in India

Experience Of 50 Years In Copper Knife Gate Valve, We have a large inventory of Copper Jacketed Valves, Copper 90/10 Jacketed Valves, Copper 70/30 Jacketed Valves, Copper Cu-Ni 70/30 Jacketed Valves, Copper 90/10 Jacketed Valves Dealers, Copper 70/30 Jacketed Valves Suppliers, Copper Cu-Ni 70/30 Jacketed Valves Manufacturer, Copper Cu-Ni 90/10 Jacketed Valves Manufacturers in India. Read more

Jacketed Valves Others

Project Reference

PROJECT

YEAR

Project : Water treatment plant at Malawi, AFRICA.

1984

Project : Ambatale Raw Water Intake Pump Station, SRILANKA.

1985

Project :  Synthetic Fibre Plant, INDONESIA.

1991

Project  :     Water  Treatment  Plant  for  Phoenix-II  Paper plant, THAILAND.

1992

Petron Civil Engineering Ltd., Bombay

1992

Project : Water Supply Project, MAURITIUS.

Paharpur Cooling Towers Ltd., Calcutta Project :  National Petrochemical Co., IRAN

1993

Ion Exchange India Ltd., Project: In INDONESIA

1993

GEPL Holdings Pte. Ltd., SINGAPORE. Project : In PAKISTAN

1997

UEM Inc., USA

1998

Project: Shah Alam Sewage treatment plant, MALAYSIA

Environmental Engineering Services (Asia)Pte. Ltd., Singapore.

1999

Project : Taman Plangi Indah Phase-1 Sewage Treatment Plant, MALAYSIA.

Gulfar Engineering & Contracting LLC, OMAN.
Project: Salalah Sewage Pumping plant , Muscat, OMAN. CONULTANTS : Parsons Engineering Science, Inc

2000

Risterm Negoce SA, Belgium.
Project : Sappi Paper Mills , BELGIUM.

2004

Saudi Berkefeld Filter Co. Ltd., Riyadh, Saudi Arabia Project : Al-Qurayat SWT and Rafha  wastewater  treatment Plant, SAUDI ARABIA
CONSULTANTS : Tawafiq Engineering  Consultant  office and Al-Tawfeek Office, SAUDI ARABIA  (Through   Jash Schutte Industrie service  GmbH,Germany
)

2004

Metax Engineering Corporation, Singapore
Project : Kim Chuan STW – Contract 2, SINGAPORE

2004

A. K. Almoayed Group WLL, Baharain
Project : #49905, Pumping Station E4, Habib Awachi, BAHRAIN.
CONSULTANTS: Watson Khonji Consulting Engineers, Bahrain.

2004

Satria Damai SDN BHD, Malaysia Project : SMART, MALAYSIA.
CONSULTANTS : MM Consultants SDN. BHD.

2004

Risterm Negoce, Belgium
Project : Sappi Paper mills , BELGIUM

2004

AVM International Ltd. A/S, Norway Project : Yapisal Erzurum, TURKEY
CONSULTANTS: ER-GE Design Engg. Consultant & Trade Ltd. Co., Istanbul

2005

Stealth valve & Controls Ltd., Canada
Project : Seymour- Capilano Filtration Project, Greater Vancouver water District., CANADA
CONSULTANTS : SSBV Consultants Inc.,

2005

Comfort Rich Enterprises Limited , Hongkong
Project : WSD Tuen  Mun Stage 5 Project, HONGKONG

2005

ROFI UK Ltd./ Syl-Mac International
Project : Erbil-Ifraz water project, IRAQ by Fluor AMEC LLC, Dubai.

2005

ROFI UK Ltd./ Syl-Mac International
Project : Nasiriya Water Project, IRAQ by Fluor AMEC LLC, Dubai

2005

ROFI UK Ltd./ Syl-Mac International
Project : Balad Rooz Water Project, IRAQ by Fluor AMEC LLC, Dubai

2005

Degremont.,
Project : Bangkhen Water Treatment Plant at Bangkok, Contract No. G-BK-7, THAILAND
CONSULTANTS: Nihon Suideo Consultants Co. Ltd. In Associated with Team Consulting Engineering and Management Co. Ltd., Thailand.

2005

Stealth valve & Controls Ltd., Canada
Project : Seymour- Capilano Filtration Project, Greater Vancouver water District., CANADA
CONSULTANTS : SSBV Consultants Inc.,

2005

Metax Engineering Corporation Limited, Singapore. Project – Tuas pumping station of PUB, SINGAPORE

2006

UEM India Limited, N. Delhi, Project : Pig farm project, MEXICO

2006

AVM International Limited, Norway Project : Water treatment plant, GHANA

2006

Spaans Babcock Limited, England, Project :- Liandysul WWTW

2006

Comfort Rich Enterprises Limited, Hong Kong, Project : Shatin project, HONGKONG

2006

ROFI UK Ltd. UK for Fluor AMEC LLC , Project :  Nasiriya Water Project, IRAQ.

2006

Kruger A/S Denmark.
Project : Oset Water Treatment Plant, Oslo, NORWAY

2006

Perrier  Sorem,  France, Project: - Paul Bert, FRANCE.

2007

Ebara Corporation Japan,
Project: - Astana City project, KAZAKHSTAN. CONSULTANTS : NJS Consultants Co. Ltd.

2007

Environmental engineering Services, Oman,
Project: - Nizwa Sewerage Treatment Plant, OMAN. CONSULTANTS : National Engineering Services Pakistan & Partners.

2007

The National Co. For Mech. & Elect. Works Ltd., Kuwait Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2007

Aqua Tech International, Oman, / Contractors Technical Services Co. LLC, Oman.
Project: Mukhaizana MVC Project, OMAN

2007

Shutte GmbH, Germany CONSULTANTS : UHDE, Germany

2007

Paramount Limited, Baroda
Project: Petrotrin Refinery Project, TRINIDAD & TOBAGO.
CONSULTANTS : Bechtel.



2007

Syl Mac International, Mumbai.
Project : Cheung Sha catchwater, HONG KONG.

2007

A.   K. Almoayed Group WLL, Baharain,
Project : A4 pumping station, BAHRAIN by Habib Awachi
CONSULTANTS: Watson Khonji Consulting Engineers, BAHRAIN

2007

A.   K. Almoayed Group WLL, Baharain,
Project : SAAR Sewarage Scheme BAHRAIN, by Habib Awachi,
CONSULTANTS: Watson Khonji Consulting Engineers, BAHRAIN

2007

Comfort Rich Enterprises Limited, Hong Kong, Project : Tai Po project , HONGKONG

2007

Perrier Sorem, France,
Project :- Cyco FOS – 480 MW Power project, FRANCE by Alstom, France.

2007

Comfort Rich, Hong Kong.
Project: - Kwun Tong Pumping Station, HONG KONG

2007

Spanns Babcock, U.K.
Project: Thames Water Supply Project. CONSULTANTS :

2007

Comfort Rich Supplies Co., Ltd, Hong Kong.
Project : Shatin STW Replacement project, HONG KONG

2007

Syl Mac International, Mumbai. Project : HONG KONG

2007

Project : Cheung Sha catchwater, HONG KONG.

2007

Ryoden Engineering Co., Ltd., Hong Kong.
Project : Nam Sang Wai SPS, Sha Po SPS, Kam Tin SPS, HONG KONG.
CONSULTANTS :

2008

Ryoden Engineering Co., Ltd., Hong Kong.
Project : Nam Sang Wai SPS, Sha Po SPS, Kam Tin SPS, HONG KONG
CONSULTANTS :

2008

Comfort Rich Supplies Co., Ltd, Hong Kong.
Project : Sheung Wan Storm water PS. HONG KONG.

2008

WB Engineering & Consultancy Pte. Ltd., China Project : Punggol Serangoon PS, Intake Structure & Ancillary Works, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2008

Comfort Rich Supplies Co., Ltd, Hong Kong. Project : Shatin Storm water PS. HONG KONG.

2008

WB Engineering & Consultancy Pte. Ltd., CHINA. Project : ULU Pandan Tidal gate, SINGAPORE. CONSULTANTS :

2008

Star Steel International LLC, Dubai Project : Rebar Mill, Dubai.
Consultant : MECON

2008

Project : Astana Water Supply and Sewerage Project KAZAKHSTAN.
CONSULTANTS : NJS Consultants Co. Ltd.

2008



WB Engineering & Consultancy Pte. Ltd., China Project : Punggol Serangoon PS, Intake Structure & Ancillary Works, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2008

WB Engineering & Consultancy Pte. Ltd., China Project : SINGAPORE.

2008

Dutco Tennant LLC, Dubai
Project : NASS Contracting Co. WLL, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2008

Dutco Tennant LLC, Dubai
Project : NASS Contracting Co. WLL, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2008

Ebara Corporation Japan,
Project: - Astana City project, KAZAKHSTAN. CONSULTANTS : NJS Consultants Co. Ltd.

2008

A.K. Almoayed Group WLL, Baharain, Project : A1 Pumping Station, BAHRAIN Al Hassanain mechanical Co.,
Consultant : Watson Khonji .

2008

Degremont Limited, Gurgaon, India
Project: - Nhon Trach Water Supply Project, VIATNAM CONSULTANTS : Nippon Koei Co.Ltd., JAPAN and Nihon Suido Consultant Co., Ltd., VIATNAM

2008

Global Engineering Systems FZ, Sharjah, UAE Project: -
CONSULTANTS :

2009

Comfort Rich Supplies Co., Ltd, Hong Kong. Project: Ma On Shan SPS, HONG KONG CONSULTANTS :

2009

Kharafi National KSC (Closed), Kuwait
Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2009

Kharafi National KSC (Closed), Kuwait
Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2009

Spanns Babcock Ltd., U.K.
Project: Howdon WWTW Project UK CONSULTANTS :

2009

Spanns Babcock Ltd., U.K..
Project: Thames Water Supply Project UK CONSULTANTS :

2009

Astra Marketing Limited, Bangkok, Thailand.
Project: MWA’s Raw Water Pumping Station No. 1 at Bang Khen WTP, Bangkok, THAILAND.
CONSULTANTS :

2009

Gulf Petrochemical Services & Trdg. LLC, Oman
Project: C-170, Rushtaq Sewage Pumping Station, OMAN CONSULTANTS :

2009

Lutz-Jesco Middle East FZE, Sharjah, U. A. E. Project:
CONSULTANTS :

2009

PLS France for Degremont Ltd., France.
Project: Al Dur Independent Water & Power Project, BAHRAIN
CONSULTANTS :

2009

PVT Engineering SDN BHD, Malaysia Project: Kepala Batas, MALAYSIA CONSULTANTS : RPM Engineers SDN BHD

2009

WB Engineering & Consultancy Pte. Ltd., China
Project : Contract 6, Punggol Serangoon Reservior Scheme, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2009

Dutco Tennant LLC, Dubai
Project : Shk Khalifa Highway Project, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2009



Jacketed Valves Price

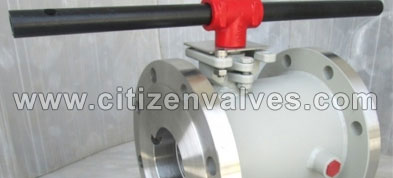

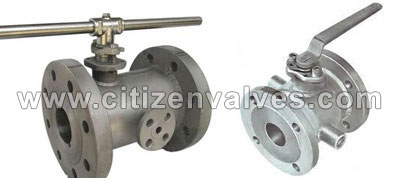

Steam Jacketed Ball Valve
Fob Price : US $10-600 / Piece
Sulphur Steam Jacketed Ball Valve
Fob Price : US $10-600 / Piece
Sulfur Jacketed Ball
Fob Price : US $10-600 / Piece
Sulphur Ball Valve
Fob Price : US $10-600 / Piece
3 Way Jacketed Ball Valve
Fob Price : US $10-600 / Piece
Jacketed Ball Valve Flanged End
Fob Price : US $10-600 / Piece
Half Jacketed Ball Valve
Fob Price : US $10-600 / Piece
Full Jacketed Ball Valves
Fob Price : US $10-600 / Piece
SS 304/304L Jacketed Ball Valve
Fob Price : US $10-600 / Piece
SS 316/316L Jacketed Ball Valve
Fob Price : US $10-600 / Piece
Jacketed Ball Valve for Sulphur
Fob Price : US $10-600 / Piece
Jacketed Ball Valve
Fob Price : US $10-600 / Piece
Hand Lever Operated Jacketed Ball Valves
Fob Price : US $10-600 / Piece
Gear Operated Jacketed Ball Valve
Fob Price : US $10-600 / Piece
Pneumatic Operated Steam Jacketed Ball Valves
Fob Price : US $10-600 / Piece
Pneumatic Actuator Operated Jacketed Ball Valves
Fob Price : US $10-600 / Piece
Remote Operated Jacketed Ball Valve India
Fob Price : US $10-600 / Piece
CS Steam Jacketed Ball Valves (Cast Steel Ball Valve)
Fob Price : US $10-600 / Piece
Jakceted Ball Valve for Bitumen and Naptha
Fob Price : US $10-600 / Piece
Pneumatic Actuated Jacketed Ball Valves
Fob Price : US $10-600 / Piece
Jacketed Ball Valves for Sulfur Application
Fob Price : US $10-600 / Piece
Jacketed Ball Valve for Asphalt
Fob Price : US $10-600 / Piece
Air Operated Jacketed Ball Valve
Fob Price : US $10-600 / Piece
Jacketed Ball Valve Pneumatic Operated
Fob Price : US $10-600 / Piece



For More Price Please Contact Us :  exports@citizenltd.com

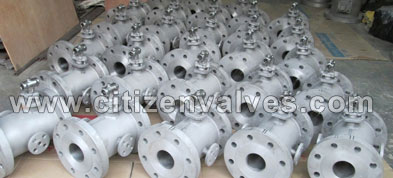

Jacketed Valves Ready Stock Available

Steam Jacketed Ball Valve
Sulphur Steam Jacketed Ball Valve
Sulfur Jacketed Ball
Sulphur Ball Valve
3 Way Jacketed Ball Valve
Jacketed Ball Valve Flanged End
Half Jacketed Ball Valve
Full Jacketed Ball Valves
SS 304/304L Jacketed Ball Valve
SS 316/316L Jacketed Ball Valve
Jacketed Ball Valve for Sulphur
Jacketed Ball Valve
Air Operated Jacketed Ball Valve
Hand Lever Operated Jacketed Ball Valves
Gear Operated Jacketed Ball Valve
Pneumatic Operated Steam Jacketed Ball Valves
Pneumatic Actuator Operated Jacketed Ball Valves
Remote Operated Jacketed Ball Valve India
CS Steam Jacketed Ball Valves (Cast Steel Ball Valve)
Steam Jacketed Ball Valves for Naptha
Jakceted Ball Valve for Bitumen
Pneumatic Actuated Jacketed Ball Valves
Jacketed Ball Valves for Sulfur Application
Jacketed Ball Valve for Asphalt
Jacketed Ball Valve Pneumatic Operated



Tags : Jacketed Ball Valve, Jacketed Ball Valve Manufacturer, Steam Jacketed Ball Valve Exporters, Sulphur Steam Jacketed Ball Valve, Sulfur Jacketed Ball Stockist, Sulphur Ball Valve Manufacturer, Sulfur Ball Valves Exporters, 3 Way Jacketed Ball Valve Exporters, 3 Way Steam Jacketed Ball Valve Manufacturer, Jacketed Ball Valve Flanged End, Hand Lever Operated Jacketed Ball Valves , Gear Operated Jacketed Ball Valve Manufacturer, Pneumatic Operated Steam Jacketed Ball Valves, Pneumatic Actuator Operated Jacketed Ball Valves, Pneumatic Actuated Jacketed Ball Valves, Air Operated Jacketed Ball Valve, Remote Operated Jacketed Ball Valve India, Half Jacketed Ball Valve Manufacturer, Full Jacketed Ball Valves, CS Steam Jacketed Ball Valves (Cast Steel Ball Valve), SS 304/304L Jacketed Ball Valve Manufacturer, SS 316/316L Jacketed Ball Valve Exporters, Jacketed Ball Valve for Sulphur, Steam Jacketed Ball Valves for Naptha, Jakceted Ball Valve for Bitumen, Jacketed Ball Valves for Sulfur Application, Jacketed Ball Valve for Asphalt, Jacketed Ball Valve Pneumatic Operated, Jacketed Ball Valve Manufacturer, Exporter & Stockist



Enquiry Form

Contact Us

CITIZEN METALS PVT. LTD (EXPORT DIVISION)

Contact Person : MR.RAJENDRA D.JAIN (EXPORT DIRECTOR)
 Address : SHOP NO G/3; HARARWALA BUILDING COMPOUND; ARDESHIRDADY STREET; S.V.P ROAD; MUMBAI-400 004, INDIA
 Phone : +91-22-61905600 (100 Lines)
 Fax : +91-22-61905666
 Email :

 exports@citizenltd.com

 Skype Id : citizenmetal
 Whats App : +91-9820356311

CITIZEN METALS OVERSEAS OFFICES

india@citizenvalves.com
Australia@citizenvalves.com
Egypt@citizenvalves.com
SaudiArabia@citizenvalves.com
Qatar@citizenvalves.com
uae@citizenvalves.com
Turkey@citizenvalves.com
Indonesia@citizenvalves.com
Malaysia@citizenvalves.com
Singapore@citizenvalves.com
Canada@citizenvalves.com
USA@citizenvalves.com
Mexico@citizenvalves.com


OUR SUMMARY:
Review Date
Reviewed Product
Jacketed Valve
Author Rating
5Jacketed ValveJacketed ValveJacketed ValveJacketed ValveJacketed Valve
