Y TYPE STRAINER MANUFACTURERS IN INDIA

Y Type Strainer Manufacturer | Conical Strainer, Y Type strainers flanged ends & screwed ends Materials

Y type strainers are used to remove soilds from flowing fluids or gases by means of perforated sheet or wire mesh straining element. Y type are suggested to use where the solid % is less in quantity. The dirt or foreign particle holdng capacity is less than compared to Basket Strainer. These stainers are very compact and can be used in horizontal , vertical lines.

  • Sizes -15 mm to 600 mm ( upto 800#)
  • End Connections -Flanged to BS,ANSI,/DIN ,Screwed , SWE.,BWE
  • Sizes - 15mmto 2000mm.
  • End Connections -Flanged to BS,ANSI,/DIN ,Screwed , SWE.,BWE
  • Materials -CI , CS, CF8,CF8M,Higher alloys / Fabricated version ( for sizes 100Nb & above )
  • Y-TYPE STRAINERS
  • A/CA SERIES CAST IRON STRAINERS
  • B SERIES CAST CARBON STEEL (WCB) STRAINERS
  • C SERIES CAST CHROME MOLY STEEL (WC6) STRAINERS
  • D SERIES FORGED STEEL (F22) STRAINER
  • E SERIES CAST STAINLESS STEEL (CF8M) STRAINERS
  • F SERIES CAST BRONZE STRAINERS

NO-LEAK, NO-CRUSH SCREEN CHAMBERS

Precise machining of both ends of the chambers is the reason. It provides perfectly round and smooth seating surfaces, as well as fixed chamber length. The screen seats snugly on the machined surface, so no particle larger than the screen opening can escape around the end of the screen.

EASY-IN, EASY-OUT SCREWED RETAINERS

Straight threads mean less torque is required to obtain a tight seal with proper gasket compression. Less torque is required to remove the retainer. The danger of "freezing in" is considerably less than with hard-to-break tapered pipe threads.

OFF-CENTER BLOWDOWN CONNECTIONS

For 2-1/2" and 3" size strainers, the off-center drain permits nearly complete removal of liquid and dirt when blowing down the strainer. An added plus: Less liquid will spill when the screen retainer is removed.

MANY SCREEN CHOICES

Many screen materials, meshes and perforations are available.

A/CA Series Cast Iron Strainers B Series Cast Carbon Steel (WCB) Strainers C Series Cast Chrome Moly Steel (WC6) Strainers
D Series Forged Steel (F22) Strainer E Series Cast Stainless Steel (CF8M) Strainers F Series Cast Bronze Strainers

Y strainerY' TYPE STRAINERS / CONICAL STRAINERS

'Y' - TYPE STRAINERS

The Y Type strainers flanged ends & screwed ends that we manufacture are available with SS screen. These Y-type strainers are precisely designed for high performance and longer service life even after regular use in extreme high temperature and pressure. Our entire range is easy to install and also protects from foreign matter in the pipelines.

These are available in various specifications:

  • The bolted cover is machined to securely receive the screen cover
  • The gaskets are designed for service even in high temperatures
  • Covers are furnished with blow-off tapping
  • Blind covers are also available

The industrial Y strainers provided by us is precision engineered and are suitable for various industrial usages. Our strainers give good adaptability and flawless performance. Our Y type strainers are made with S.S. filter element of perforated sheet and wire mesh as per the customer’s specific demands. These filter elements are easily removable.

We offer precision engineered and durable range of Y-type strainers suitable for various industrial applications. These strainers are known for various qualitative features such as adaptability and flawless performance. Y-type strainers are with S.S. filter element of perforated sheet and wire mesh (as per customer's specification). The filter elements are easily removable.

PARTS MATERIALS
Body ASTM A216Gr.WCB/A351CF8/CF8M
Screen * SS 304/ SS 316
Cover MS/SS 304/SS 316
Gasket CAF / PTFE
Nut & Bolt CS / SS 304
Drain Plug MS /SS 304/SS 316
Flanged 'Y' Strainer Steel - 150YFS Series Flanged 'Y' Strainer Steel/Stainless Steel - 150YF Series - Dimensions

Size Chart / y type strainer specification / y type strainer datasheet / y type strainer weight / y type strainer sizes / y type strainer price list

Item Number Size A B C Max. Pressure at 100ºF Max. Pressure at 400ºF Body Material
150YFS-1/2 15 mm
1/2 in
152mm
6 in
99 mm
3 7/8 in
8 mm
1/4 in
285 psi 200 psi Carbon Steel
150YFS-3/4 20 mm
3/4 in
178mm
7 in
108 mm
4 1/4 in
10mm
3/8 in
285 psi 200 psi Carbon Steel
150YFS-1 25 mm
1 in
191mm
7 1/2 in
121 mm
4 3/4 in
15mm
1/2 in
285 psi 200 psi Carbon Steel
150YFS-1 1/2 40 mm
1 1/2 in
229mm
9 in
143 mm
5 5/8 in
15mm
1/2 in
285 psi 200 psi Carbon Steel
150YFS-2 50 mm
2 in
219mm
8 5/8 in
133 mm
5 1/4 in
15mm
1/2 in
285 psi 200 psi Carbon Steel
150YFS-2 1/2 65 mm
2 1/2 in
260mm
10 1/4in
191 mm
7 1/2 in
20mm
3/4 in
285 psi 200 psi Carbon Steel
150YFS-3 80 mm
3 in
295mm
11 5/8in
195 mm
7 11/16in
25mm
1 in
285 psi 200 psi Carbon Steel
150YFS-4 100mm
4 in
365mm
14 3/8in
232 mm
9 1/8 in
40mm
1 1/2in
285 psi 200 psi Carbon Steel
150YFS-5 125mm
5 in
448mm
17 5/8in
279 mm
11 in
50mm
2 in
285 psi 200 psi Carbon Steel
150YFS-6 150mm
6 in
473mm
18 5/8in
330 mm
13 in
50mm
2 in
285 psi 200 psi Carbon Steel
150YFS-8 200mm
8 in
619mm
24 3/8in
389 mm
15 5/16in
50mm
2 in
285 psi 200 psi Carbon Steel
150YFS-10 250mm
10 in
660mm
26 in
486 mm
19 1/8 in
50mm
2 in
285 psi 200 psi Carbon Steel
150YFS-12 300mm
12 in
772mm
30 3/8in
559 mm
22 in
50mm
2 in
285 psi 200 psi Carbon Steel
150YFSS-1/2 15 mm
1/2 in
152mm
6 in
99 mm
3 7/8 in
8 mm
1/4 in
275 psi 195 psi Stainless Steel
150YFSS-3/4 20 mm
3/4 in
178mm
7 in
108 mm
4 1/4 in
10mm
3/8 in
275 psi 195 psi Stainless Steel
150YFSS-1 25 mm
1 in
191mm
7 1/2 in
121 mm
4 3/4 in
15mm
1/2 in
275 psi 195 psi Stainless Steel
150YFSS-1 1/2 40 mm
1 1/2 in
229mm
9 in
143 mm
5 5/8 in
15mm
1/2 in
275 psi 195 psi Stainless Steel
150YFSS-2 50 mm
2 in
219mm
8 5/8 in
133 mm
5 1/4 in
15mm
1/2 in
275 psi 195 psi Stainless Steel
150YFSS-2 1/2 65 mm
2 1/2 in
260mm
10 1/4in
191 mm
7 1/2 in
20mm
3/4 in
275 psi 195 psi Stainless Steel
150YFSS-3 80 mm
3 in
295mm
11 5/8in
195 mm
7 11/16in
25mm
1 in
275 psi 195 psi Stainless Steel
150YFSS-4 100mm
4 in
365mm
14 3/8in
232 mm
9 1/8 in
40mm
1 1/2in
275 psi 195 psi Stainless Steel
150YFSS-5 125mm
5 in
448mm
17 5/8in
279 mm
11 in
50mm
2 in
275 psi 195 psi Stainless Steel
150YFSS-6 150mm
6 in
473mm
18 5/8in
330 mm
13 in
50mm
2 in
275 psi 195 psi Stainless Steel
150YFSS-8 200mm
8 in
619mm
24 3/8in
389 mm
15 5/16in
50mm
2 in
275 psi 195 psi Stainless Steel
150YFSS-10 250mm
10 in
660mm
26 in
486 mm
19 1/8 in
50mm
2 in
275 psi 195 psi Stainless Steel
150YFSS-12 300mm
12 in
772mm
30 3/8in
559 mm
22 in
50mm
2 in
275 psi 195 psi Stainless Steel

Y-Type Strainer Flanged ANSI 150 / Size Chart / y type strainer specification / y type strainer datasheet / y type strainer weight / y type strainer sizes / y type strainer price list

ASTM A351 CF8M 316 Stainless Steel Body and Cover.
PTFE Cover Seal. 316 Stainless Steel Filter Element.
316 Stainless Steel Drain Plug in Cover.
Bolted Cover design.
Face to Face dimensions in accordance with ANSI B16.10
Class 150 pressure rated. -20 / +200 deg C Temp rated.
Flanged ANSI 150 end connections.
CE Marked in accordance with PED 97/23/EC (from 1 1/2”).
Element std perf 1.5mm (1/2” - 1”) & 2mm (1 1/2” - 10”).

This valve is a fully flanged unit that is designed to be bolted into the pipeline using flange connections.
All of our ANSI Flanged Gate, Globe, Check and Y-Strainer Valves conform to ANSI B16.10 face to face dimensions.
Design standard – ANSI B16.34
Test standard – API 598

Available size range: 1/2” - 10”

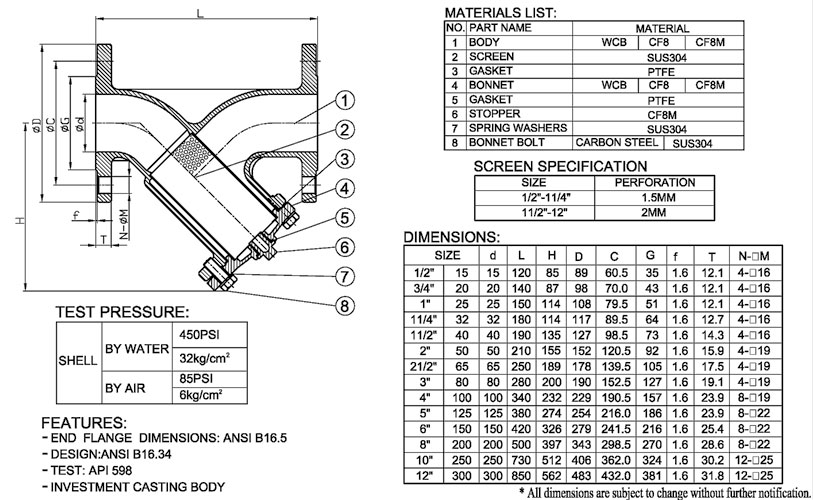

Y-Type Strainer Flanged ANSI 150 Dimensions / Size Chart / y type strainer specification / y type strainer datasheet / y type strainer weight / y type strainer sizes / y type strainer price list

Y-Type Strainer Flanged ANSI 150

Y-Type Strainer Flanged BS4504 DIN PN16 / Size Chart / y type strainer specification / y type strainer datasheet / y type strainer weight / y type strainer sizes / y type strainer price list

ASTM A351 CF8M 316 Stainless Steel Body and Cover.
PTFE Cover Seal. 316 Stainless Steel Filter Element.
316 Stainless Steel Drain Plug in Cover. Bolted Cover design.
Face to Face dimension in accordance with DIN 3202/F1.
16 bar pressure rated. -20 / +200 deg C Temp rated.
Flanged PN16 end connections.
CE marked in accordance with PED 97/23/EC (from 1 1/4”).
Element std perf 1.5mm (1/2” - 1”) & 2mm (1 1/4” - 10”).

This valve is a fully flanged unit that is designed to be bolted into the pipeline using flange connections.
All of our DIN Flanged PN16 Gate, Globe, Check and Y-Strainer Valves conform to DIN 3202/F1 Face to Face dimensions which mean they are “long pattern” valves and are not to be confused with shorter “ANSI” pattern valves that are available elsewhere.
Test Standard API 598.

Available size range: 1/2” - 10”

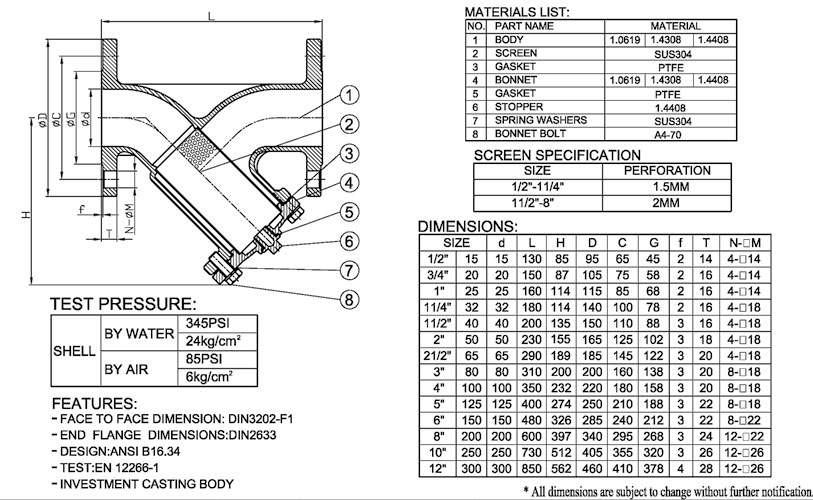

Y-Type Strainer Flanged BS4504 DIN PN16 / Size Chart / y type strainer specification / y type strainer datasheet / y type strainer weight / y type strainer sizes / y type strainer price list

Y-Type Strainer Flanged ANSI 150

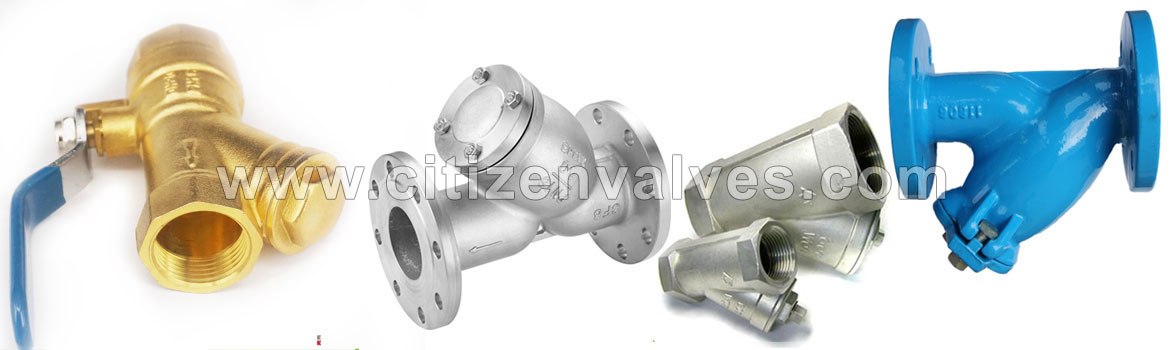

Y Type Strainers Materials

Stainless Steel Y Type Strainer
Stainless Steel Y Type Strainer Suppliers Dealers Distributors in India

Y Type Strainer, Stainless Steel Forged Steel 304 Valve, Stainless Steel F321 Y Type Strainer, F347 Y Type Strainer, SS High Pressure Y Type Strainer, Class 150, 300, 600, 900, 1/2 inch stainless steel Y Type Strainer, 1/2" stainless steel Y Type Strainer, 3/4 Size Y Type Strainer, 4 inch stainless steel Y Type Strainer, Industrial Y Type Strainer, Stainless Steel 316 Y Type Strainer Suppliers in India... Read more

Alloy Steel Y Type Strainer
Alloy Steel Y Type Strainer Suppliers Dealers Distributors in India

Alloy Steel Y Type Strainers, Chrome Moly Alloy A217 / SA217 Cast Valves, WC9 Alloy Steel Globe Valve, 4 Inch, 2500#, A350 LF3, A352 LC3, A182 F5A/F5, A217 C5, A182 F9, A217 C12, A182 F11, A217 WC6, A182 F22, A217 WC9, A182 F91, A217 C12A, 10 Inch, RF, WC9 Gate Valve, PSB, 12 Inch, 2500 LB, Alloy Steel Valves Dealers & Distributors in India.. Read more

Carbon Steel Y Type Strainer
Carbon Steel Y Type Strainer Suppliers Dealers Distributors in India

Y Type Strainers, Carbon Steel Y Type Strainers, Carbon Steel Valve Material, ASTM A350 LF2 Y Type Strainers, Carbon Steel ASTM A106 Y Type Strainers, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34 ASTM A105N Y Type Strainers, Cast Carbon Steel Y Type Strainers, API 600 Cast Steel Y Type Strainers, Forged Carbon Steel Y Type Strainers Exporters & Suppliers In India.. Read more

Hastelloy Y Type Strainer
Hastelloy Y Type Strainer Suppliers Dealers Distributors in India

Hastelloy Y Type Strainer, Hastelloy C276 Y Type Strainer, Hastelloy C22 Y Type Strainer, Hastelloy B2 Y Type Strainer, Hastelloy C276/C22 Valves, ASTM B 435 Hastelloy X Y Type Strainer, Hastelloy B2 Y Type Strainer, ASME B16.34 Y Type Strainer, UNS N10665 Hastelloy B2 Y Type Strainer, UNS N10276 Hastelloy C276/C22 Manufacturer / Suppliers in Mumbai India. Read more

Alloy 20 Y Type Strainer
Alloy 20 Y Type Strainer Suppliers Dealers Distributors in India

Wholesale Various High Quality Industrial Y Type Strainer Products from Citizen Metals, Largest Suppliers of Alloy 20 Y Type Strainer, Alloy 20 Y Type Strainer Dealers, Alloy 20 Check Valve, UNS N08020 Alloy 20 Y Type Strainer, Alloy 20 Y Type Strainer Suppliers, Alloy 20 Y Type Strainer Manufacturer, Alloy 20 Y Type Strainer Manufacturers in India. Read more

Nickel 200/201 Y Type Strainer
Nickel 200/201 Y Type Strainer Suppliers Dealers Distributors in India

We supply broad range of Nickel 200/201 Y Type Strainer, Leading Suppliers of Nickel 200/201 Valves, Ni-200 Y Type Strainer, Ni-201 Y Type Strainer, Uns N02200 Y Type Strainer, Uns N02201 Y Type Strainer, Nickel 200/201 Y Type Strainer Dealers, Y Type Strainer Suppliers, Nickel 200/201 Y Type Strainer Manufacturer, Nickel 200/201 Y Type Strainer Manufacturers in India. Read more

Monel® Y Type Strainer
Monel 400 Y Type Strainers Suppliers Dealers Distributors in India

we supply Monel 400 Valves with high quality and best affordable rate., Monel 400 Y Type Strainers, Monel DIN 2.4360, 2.4375 Y Type Strainers, Monel UNS N04400 Y Type Strainers, Monel UNS N05500 Y Type Strainers, Monel Y Type Strainers, Monel K500 Y Type Strainers, Monel 400 Y Type Strainers Distributors in India... Read more

Duplex Steel Y Type Strainer
Duplex Steel Y Type Strainer Suppliers Dealers Distributors in India

We specialize in the oil & gas industries and offer specialty Duplex Steel Y Type Strainer, UNS S31803 Y Type Strainer Suppliers in India, DIN 1.4410 Super Duplex Steel Y Type Strainer, ASME B 16.10 UNS S32760 Y Type Strainer, ASTM A351 Duplex Steel UNS S31803, ASME SA494 Duplex Steel UNS S31803, Duplex Steel UNS S31803 Class 900 Y Type Strainer Exporters in India. Read more

254 Smo Y Type Strainer
254 Smo Y Type Strainer Suppliers Dealers Distributors in India

Y Type Strainer, 254 Smo Y Type Strainer, Cryogenic 254 SMO gate valve, ASME B16.34 SS 254 SMO Y Type Strainer, Stainless Steel 254 SMO Y Type Strainer, ASTM A351 SS SMO 254 Y Type Strainer, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34, 254 SMO Industrial Valves, Stainless Steel 254SMO Y Type Strainers Suppliers in India.. Read more

904l Stainless Steel Y Type Strainer
904l Stainless Steel Industrial Y Type Strainer Suppliers Dealers Distributors in India

Y Type Strainer, 904l Stainless Steel Y Type Strainer, 904l Stainless Steel Industrial Y Type Strainer, SS 904L ASTM A351 Y Type Strainer, ASME B 16.10 Y Type Strainer, ASME B 16.5, ASME B 16.25, ASME B 16.34, UNS N08904, 1.4539, BS 904S13, JIS SUS 890L Y Type Strainer , 904l Stainless Steel Y Type Strainers, High Pressure 904l Stainless Steel Y Type Strainer Exporters in India.. Read more

Inconel Y Type Strainer
Inconel Y Type Strainer Suppliers Dealers Distributors in India

Y Type Strainers, Inconel Y Type Strainer, Inconel 600 Y Type Strainer, INCONEL WERKSTOFF NR. 2.4816 Y Type Strainers, Inconel 600 N06600 Y Type Strainers, Inconel 2.4816 Y Type Strainers, UNS N06600 Y Type Strainers, Inconel 600 Y Type Strainers, API 600/ BS1414, ALLOY 600 Y Type Strainers, ASME B 16.5 Y Type Strainers Dealers in India.. Read more

Titanium Y Type Strainer
Titanium Y Type Strainer Suppliers Dealers Distributors in India

We are the one of the top most manufacturers of different types of Industrial Y Type Strainer, We have a large inventory of Y Type Strainer in a variety of options., Largest Suppliers of Titanium Gr2(B367 Gr C2) Y Type Strainer, Titanium Gr3(B367 Gr C3) Y Type Strainer, Titanium TA1, TA2, Titanium Gr.5, Gr6 Y Type Strainer,Gr7 ,Gr12, Titanium TC4,TA9,TA10 Dealers in India.. Read more

Brass Y Type Strainer
Brass Y Type Strainer Suppliers Dealers Distributors in India

Brass Y Type Strainer, brass Y Type Strainer price list in India, brass Y Type Strainer 1/2, 1 inch brass Y Type Strainer, brass Y Type Strainer 3/4, brass Y Type Strainer price list india, 3 inch brass check valve, brass Y Type Strainer price list, 1/2 inch Y Type Strainer, 4 brass Y Type Strainer, 3/4 brass Y Type Strainer, 4 inch brass Y Type Strainer, 2 inch brass Y Type Strainer Read more

Copper Y Type Strainer
Copper Y Type Strainer Suppliers Dealers Distributors in India

Experience Of 50 Years In Copper Knife Gate Valve, We have a large inventory of Copper Y Type Strainer, Copper 90/10 Y Type Strainer, Copper 70/30 Y Type Strainer, Copper Cu-Ni 70/30 Y Type Strainer, Copper 90/10 Y Type Strainer Dealers, Copper 70/30 Y Type Strainer Suppliers, Copper Cu-Ni 70/30 Y Type Strainer Manufacturer, Copper Cu-Ni 90/10 Y Type Strainer Manufacturers in India. Read more

Y Type Strainers Others

Project Reference

PROJECT

YEAR

Project : Water treatment plant at Malawi, AFRICA.

1984

Project : Ambatale Raw Water Intake Pump Station, SRILANKA.

1985

Project :  Synthetic Fibre Plant, INDONESIA.

1991

Project  :     Water  Treatment  Plant  for  Phoenix-II  Paper plant, THAILAND.

1992

Petron Civil Engineering Ltd., Bombay

1992

Project : Water Supply Project, MAURITIUS.

Paharpur Cooling Towers Ltd., Calcutta Project :  National Petrochemical Co., IRAN

1993

Ion Exchange India Ltd., Project: In INDONESIA

1993

GEPL Holdings Pte. Ltd., SINGAPORE. Project : In PAKISTAN

1997

UEM Inc., USA

1998

Project: Shah Alam Sewage treatment plant, MALAYSIA

Environmental Engineering Services (Asia)Pte. Ltd., Singapore.

1999

Project : Taman Plangi Indah Phase-1 Sewage Treatment Plant, MALAYSIA.

Gulfar Engineering & Contracting LLC, OMAN.
Project: Salalah Sewage Pumping plant , Muscat, OMAN. CONULTANTS : Parsons Engineering Science, Inc

2000

Risterm Negoce SA, Belgium.
Project : Sappi Paper Mills , BELGIUM.

2004

Saudi Berkefeld Filter Co. Ltd., Riyadh, Saudi Arabia Project : Al-Qurayat SWT and Rafha  wastewater  treatment Plant, SAUDI ARABIA
CONSULTANTS : Tawafiq Engineering  Consultant  office and Al-Tawfeek Office, SAUDI ARABIA  (Through   Jash Schutte Industrie service  GmbH,Germany
)

2004

Metax Engineering Corporation, Singapore
Project : Kim Chuan STW – Contract 2, SINGAPORE

2004

A. K. Almoayed Group WLL, Baharain
Project : #49905, Pumping Station E4, Habib Awachi, BAHRAIN.
CONSULTANTS: Watson Khonji Consulting Engineers, Bahrain.

2004

Satria Damai SDN BHD, Malaysia Project : SMART, MALAYSIA.
CONSULTANTS : MM Consultants SDN. BHD.

2004

Risterm Negoce, Belgium
Project : Sappi Paper mills , BELGIUM

2004

AVM International Ltd. A/S, Norway Project : Yapisal Erzurum, TURKEY
CONSULTANTS: ER-GE Design Engg. Consultant & Trade Ltd. Co., Istanbul

2005

Stealth valve & Controls Ltd., Canada
Project : Seymour- Capilano Filtration Project, Greater Vancouver water District., CANADA
CONSULTANTS : SSBV Consultants Inc.,

2005

Comfort Rich Enterprises Limited , Hongkong
Project : WSD Tuen  Mun Stage 5 Project, HONGKONG

2005

ROFI UK Ltd./ Syl-Mac International
Project : Erbil-Ifraz water project, IRAQ by Fluor AMEC LLC, Dubai.

2005

ROFI UK Ltd./ Syl-Mac International
Project : Nasiriya Water Project, IRAQ by Fluor AMEC LLC, Dubai

2005

ROFI UK Ltd./ Syl-Mac International
Project : Balad Rooz Water Project, IRAQ by Fluor AMEC LLC, Dubai

2005

Degremont.,
Project : Bangkhen Water Treatment Plant at Bangkok, Contract No. G-BK-7, THAILAND
CONSULTANTS: Nihon Suideo Consultants Co. Ltd. In Associated with Team Consulting Engineering and Management Co. Ltd., Thailand.

2005

Stealth valve & Controls Ltd., Canada
Project : Seymour- Capilano Filtration Project, Greater Vancouver water District., CANADA
CONSULTANTS : SSBV Consultants Inc.,

2005

Metax Engineering Corporation Limited, Singapore. Project – Tuas pumping station of PUB, SINGAPORE

2006

UEM India Limited, N. Delhi, Project : Pig farm project, MEXICO

2006

AVM International Limited, Norway Project : Water treatment plant, GHANA

2006

Spaans Babcock Limited, England, Project :- Liandysul WWTW

2006

Comfort Rich Enterprises Limited, Hong Kong, Project : Shatin project, HONGKONG

2006

ROFI UK Ltd. UK for Fluor AMEC LLC , Project :  Nasiriya Water Project, IRAQ.

2006

Kruger A/S Denmark.
Project : Oset Water Treatment Plant, Oslo, NORWAY

2006

Perrier  Sorem,  France, Project: - Paul Bert, FRANCE.

2007

Ebara Corporation Japan,
Project: - Astana City project, KAZAKHSTAN. CONSULTANTS : NJS Consultants Co. Ltd.

2007

Environmental engineering Services, Oman,
Project: - Nizwa Sewerage Treatment Plant, OMAN. CONSULTANTS : National Engineering Services Pakistan & Partners.

2007

The National Co. For Mech. & Elect. Works Ltd., Kuwait Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2007

Aqua Tech International, Oman, / Contractors Technical Services Co. LLC, Oman.
Project: Mukhaizana MVC Project, OMAN

2007

Shutte GmbH, Germany CONSULTANTS : UHDE, Germany

2007

Paramount Limited, Baroda
Project: Petrotrin Refinery Project, TRINIDAD & TOBAGO.
CONSULTANTS : Bechtel.



2007

Syl Mac International, Mumbai.
Project : Cheung Sha catchwater, HONG KONG.

2007

A.   K. Almoayed Group WLL, Baharain,
Project : A4 pumping station, BAHRAIN by Habib Awachi
CONSULTANTS: Watson Khonji Consulting Engineers, BAHRAIN

2007

A.   K. Almoayed Group WLL, Baharain,
Project : SAAR Sewarage Scheme BAHRAIN, by Habib Awachi,
CONSULTANTS: Watson Khonji Consulting Engineers, BAHRAIN

2007

Comfort Rich Enterprises Limited, Hong Kong, Project : Tai Po project , HONGKONG

2007

Perrier Sorem, France,
Project :- Cyco FOS – 480 MW Power project, FRANCE by Alstom, France.

2007

Comfort Rich, Hong Kong.
Project: - Kwun Tong Pumping Station, HONG KONG

2007

Spanns Babcock, U.K.
Project: Thames Water Supply Project. CONSULTANTS :

2007

Comfort Rich Supplies Co., Ltd, Hong Kong.
Project : Shatin STW Replacement project, HONG KONG

2007

Syl Mac International, Mumbai. Project : HONG KONG

2007

Project : Cheung Sha catchwater, HONG KONG.

2007

Ryoden Engineering Co., Ltd., Hong Kong.
Project : Nam Sang Wai SPS, Sha Po SPS, Kam Tin SPS, HONG KONG.
CONSULTANTS :

2008

Ryoden Engineering Co., Ltd., Hong Kong.
Project : Nam Sang Wai SPS, Sha Po SPS, Kam Tin SPS, HONG KONG
CONSULTANTS :

2008

Comfort Rich Supplies Co., Ltd, Hong Kong.
Project : Sheung Wan Storm water PS. HONG KONG.

2008

WB Engineering & Consultancy Pte. Ltd., China Project : Punggol Serangoon PS, Intake Structure & Ancillary Works, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2008

Comfort Rich Supplies Co., Ltd, Hong Kong. Project : Shatin Storm water PS. HONG KONG.

2008

WB Engineering & Consultancy Pte. Ltd., CHINA. Project : ULU Pandan Tidal gate, SINGAPORE. CONSULTANTS :

2008

Star Steel International LLC, Dubai Project : Rebar Mill, Dubai.
Consultant : MECON

2008

Project : Astana Water Supply and Sewerage Project KAZAKHSTAN.
CONSULTANTS : NJS Consultants Co. Ltd.

2008



WB Engineering & Consultancy Pte. Ltd., China Project : Punggol Serangoon PS, Intake Structure & Ancillary Works, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2008

WB Engineering & Consultancy Pte. Ltd., China Project : SINGAPORE.

2008

Dutco Tennant LLC, Dubai
Project : NASS Contracting Co. WLL, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2008

Dutco Tennant LLC, Dubai
Project : NASS Contracting Co. WLL, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2008

Ebara Corporation Japan,
Project: - Astana City project, KAZAKHSTAN. CONSULTANTS : NJS Consultants Co. Ltd.

2008

A.K. Almoayed Group WLL, Baharain, Project : A1 Pumping Station, BAHRAIN Al Hassanain mechanical Co.,
Consultant : Watson Khonji .

2008

Degremont Limited, Gurgaon, India
Project: - Nhon Trach Water Supply Project, VIATNAM CONSULTANTS : Nippon Koei Co.Ltd., JAPAN and Nihon Suido Consultant Co., Ltd., VIATNAM

2008

Global Engineering Systems FZ, Sharjah, UAE Project: -
CONSULTANTS :

2009

Comfort Rich Supplies Co., Ltd, Hong Kong. Project: Ma On Shan SPS, HONG KONG CONSULTANTS :

2009

Kharafi National KSC (Closed), Kuwait
Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2009

Kharafi National KSC (Closed), Kuwait
Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2009

Spanns Babcock Ltd., U.K.
Project: Howdon WWTW Project UK CONSULTANTS :

2009

Spanns Babcock Ltd., U.K..
Project: Thames Water Supply Project UK CONSULTANTS :

2009

Astra Marketing Limited, Bangkok, Thailand.
Project: MWA’s Raw Water Pumping Station No. 1 at Bang Khen WTP, Bangkok, THAILAND.
CONSULTANTS :

2009

Gulf Petrochemical Services & Trdg. LLC, Oman
Project: C-170, Rushtaq Sewage Pumping Station, OMAN CONSULTANTS :

2009

Lutz-Jesco Middle East FZE, Sharjah, U. A. E. Project:
CONSULTANTS :

2009

PLS France for Degremont Ltd., France.
Project: Al Dur Independent Water & Power Project, BAHRAIN
CONSULTANTS :

2009

PVT Engineering SDN BHD, Malaysia Project: Kepala Batas, MALAYSIA CONSULTANTS : RPM Engineers SDN BHD

2009

WB Engineering & Consultancy Pte. Ltd., China
Project : Contract 6, Punggol Serangoon Reservior Scheme, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2009

Dutco Tennant LLC, Dubai
Project : Shk Khalifa Highway Project, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2009



Y Type Strainer Price

JIS 10K Y Type Strainer
FOB Price : US $19-2999 / Piece
Manual Strainer/Ss Gas, Liquefied Medium ANSI/ASTM,8 Inch Y Type Stainless
FOB Price : US $100-20000 / Piece
1 /2 -4 Inch Stainless Steel 800PSI Y Type Female Filter Strainer
FOB Price : US $1.69-48.62 / Piece
Y type Stainless steel Strainer with CF8,CF8M,CF3,CF3M,DIN,ANSI
FOB Price : US $8-1000 / Set
high quality Y type Brass filter valve strainer
FOB Price : US $1-55 / Piece
Flange Stainless Steel Water Y Type Strainer Manufacturer
FOB Price : US $10-1000 / Unit
Factory supply stainless steel 800WOG female threaded y type strainer
FOB Price : US $1.0-2.0 / Pieces
cast iron/carbon steel/stainless steel industrial Y type strainer/filter
FOB Price : US $1-1000 / Piece
Flange connection stainless steel y type strainer
FOB Price : US $0.63-34.86 / Piece

For More Price Please Contact Us :  exports@citizenltd.com

Tags : y type strainer price list, y strainer price list india, y type strainer cost, y type strainer price 2017, y type strainer rate, y type strainer latest price 2017, y type strainer india price, Y Type Strainer Manufacturer, Conical Strainer, Y Type strainers flanged ends & screwed ends Y Type Strainer, Socketweld Y Type Strainer, Flanged End Y Type Strainer, Y-Type Strainer Flanged ANSI 150 Dimensions, Size Chart, y type strainer specification, y type strainer datasheet, y type strainer weight, y type strainer sizes, Y-Type Strainer Flanged BS4504 DIN PN16 Dealers, Distributors, Exporters, Suppliers india

Y Type Strainers Ready Stock Available

Y-Type Strainer

  • Sizes -15 mm to 600 mm ( upto 800#)
  • End Connections -Flanged to BS,ANSI,/DIN ,Screwed , SWE.,BWE
  • Sizes - 15mmto 2000mm.
  • End Connections -Flanged to BS,ANSI,/DIN ,Screwed , SWE.,BWE
  • Materials -CI , CS, CF8,CF8M,Higher alloys / Fabricated version ( for sizes 100Nb & above )

Y-Type Strainer Flanged ANSI 150

ASTM A351 CF8M 316 Stainless Steel Body and Cover.
PTFE Cover Seal. 316 Stainless Steel Filter Element.
316 Stainless Steel Drain Plug in Cover.
Bolted Cover design.
Face to Face dimensions in accordance with ANSI B16.10
Class 150 pressure rated. -20 / +200 deg C Temp rated.
Flanged ANSI 150 end connections.
CE Marked in accordance with PED 97/23/EC (from 1 1/2”).
Element std perf 1.5mm (1/2” - 1”) & 2mm (1 1/2” - 10”).

This valve is a fully flanged unit that is designed to be bolted into the pipeline using flange connections.
All of our ANSI Flanged Gate, Globe, Check and Y-Strainer Valves conform to ANSI B16.10 face to face dimensions.
Design standard – ANSI B16.34
Test standard – API 598

Available size range: 1/2” - 10”

Y-Type Strainer Flanged ANSI 150 Dimensions / Size Chart / y type strainer specification / y type strainer datasheet / y type strainer weight / y type strainer sizes / y type strainer price list

Y-Type Strainer Flanged ANSI 150

Y-Type Strainer Flanged BS4504 DIN PN16

ASTM A351 CF8M 316 Stainless Steel Body and Cover.
PTFE Cover Seal. 316 Stainless Steel Filter Element.
316 Stainless Steel Drain Plug in Cover. Bolted Cover design.
Face to Face dimension in accordance with DIN 3202/F1.
16 bar pressure rated. -20 / +200 deg C Temp rated.
Flanged PN16 end connections.
CE marked in accordance with PED 97/23/EC (from 1 1/4”).
Element std perf 1.5mm (1/2” - 1”) & 2mm (1 1/4” - 10”).

This valve is a fully flanged unit that is designed to be bolted into the pipeline using flange connections.
All of our DIN Flanged PN16 Gate, Globe, Check and Y-Strainer Valves conform to DIN 3202/F1 Face to Face dimensions which mean they are “long pattern” valves and are not to be confused with shorter “ANSI” pattern valves that are available elsewhere.
Test Standard API 598.

Available size range: 1/2” - 10”

Y-Type Strainer Flanged BS4504 DIN PN16



Y-Type Strainer Flanged ANSI 150

Tags : y type strainer price list, y strainer price list india, y type strainer cost, y type strainer price 2017, y type strainer rate, y type strainer latest price 2017, y type strainer india price, Y Type Strainer Manufacturer, Conical Strainer, Y Type strainers flanged ends & screwed ends Y Type Strainer, Socketweld Y Type Strainer, Flanged End Y Type Strainer, Y-Type Strainer Flanged ANSI 150 Dimensions, Size Chart, y type strainer specification, y type strainer datasheet, y type strainer weight, y type strainer sizes, Y-Type Strainer Flanged BS4504 DIN PN16 Dealers, Distributors, Exporters, Suppliers india



Enquiry Form

Contact Us

CITIZEN METALS PVT. LTD (EXPORT DIVISION)

Contact Person : MR.RAJENDRA D.JAIN (EXPORT DIRECTOR)
 Address : SHOP NO G/3; HARARWALA BUILDING COMPOUND; ARDESHIRDADY STREET; S.V.P ROAD; MUMBAI-400 004, INDIA
 Phone : +91-22-61905600 (100 Lines)
 Fax : +91-22-61905666
 Email :

 exports@citizenltd.com

 Skype Id : citizenmetal
 Whats App : +91-9820356311

CITIZEN METALS OVERSEAS OFFICES

india@citizenvalves.com
Australia@citizenvalves.com
Egypt@citizenvalves.com
SaudiArabia@citizenvalves.com
Qatar@citizenvalves.com
uae@citizenvalves.com
Turkey@citizenvalves.com
Indonesia@citizenvalves.com
Malaysia@citizenvalves.com
Singapore@citizenvalves.com
Canada@citizenvalves.com
USA@citizenvalves.com
Mexico@citizenvalves.com


OUR SUMMARY:
Review Date
Reviewed Product
Y-Type Strainer
Author Rating
5Y-Type StrainerY-Type StrainerY-Type StrainerY-Type StrainerY-Type Strainer
