Check Valves

Function:

Non-return Check Valve or one-way Check Valve is a mechanical device, a valve, which normally allows fluid (liquid or gas) to flow through it in one direction only.

Check ValvesOperation:

  • The main mission of a Check Valve is to avoid back pressure in the process (avoid that the flow is switching direction)
  • A Check Valve can also be used for isolation purpose.
  • There will normally be regulations telling how many and in which location Check Valves are to be installed in the process.

Design:

  • As for most valves there are a lot of different designs of Check Valves. The basic design is a Duo Check Valve with two discs mounted on an hinge pin in the center of the Check Valve. The Check Valve has a standby closed position with springs pushing the discs towards the seats. These valves are designed for installation on a horizontal line where the hinge pin is placed in a vertical position.
  • To reduce space and weight these Check Valves are often delivered as wafer valves.

Advantages:

  • Self closing check valve
  • Self cleaning design
  • Integrated spring for horizontal installation
  • Optimized flow design
  • Corrosion resistant and high pressure rating
  • Wide selection of material for best chemical resistance
  • Optional screen assembly protects against dirt

Other types of Check Valves:

  • Swinging Check Valve
  • Tilting Disc Check Valve
  • Piston Check Valve
  • Non slam Check Valve
  • Needle Check Valve
  • Nozzle Check Valve

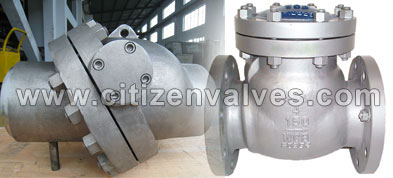

Swing Check Valves

Bolted Cover Design, Flanged End
Suitable For Horizontal & Vertical Line

J.D. Check Valves [NRV] are Swing Type and Bolted cover Construction. The one piece disc construction is securely fastened to the hinge by means of a lock nut & pin. The Disc is free to rotating type to avoid any other wear. The hinge pin offers excellent wear resistance properties.

Swing Check valves also can be supplied with Titling disc design, Dash pot arrangement and outside lever & weight design for use where control of the disc is desires.

J. D. Controls also offer P.T.F.E. (PFA / FEP) Lined Ball Type/Y Type & Rubber Lined Flap Type Check Valves for high corrosive application.

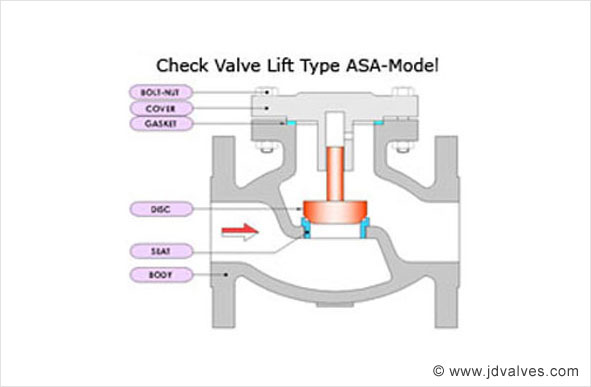

Lift Type Check Valve DiagramLift Type Check Valve [Non Return Valve] - ASA Body Design
Bolted Cover, Suitable for Horizontal Line Only
Design Standard: BS 1868 / DIN
Size Range - 1" to 12"
Pressure Rating - 125# / 150# / 300#
End Connection : Flanged End

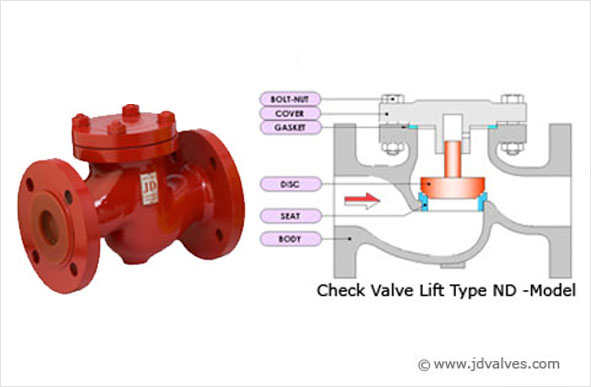

Lift Type Check Valve [Non Return Valve]Lift Type Check Valve [Non Return Valve]
Bolted Cover, Suitable for Horizontal Line Only
Design Standard: BS 1868 / DIN
Size Range - 1" to 12"
Pressure Rating: PN 6 / PN 10 / PN 16 / PN 25 / PN 40
End Connection : Flanged End

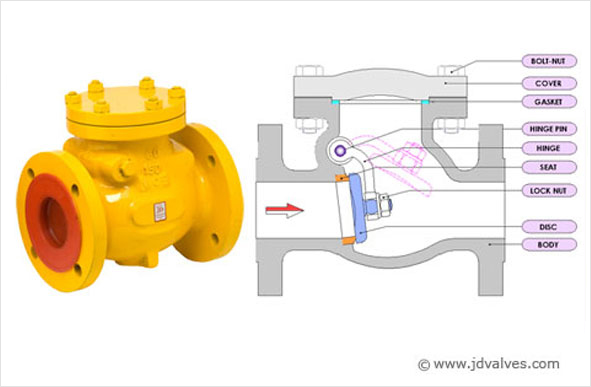

Swing Type Check Valve [Non Return Valve]Swing Type Check Valve [Non Return Valve]
Bolted Cover, Suitable for Horizontal & Vertical Line
Design Standard: BS 1868
Size Range - 1" to 12"
Pressure Rating - 125# / 150# / 300#
End Connection : Flanged End

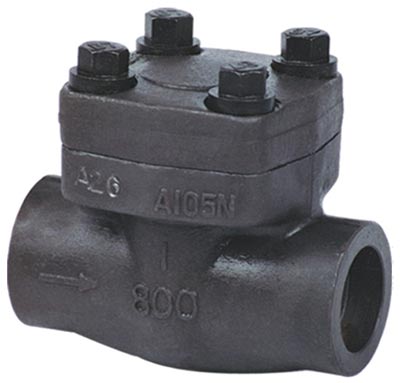

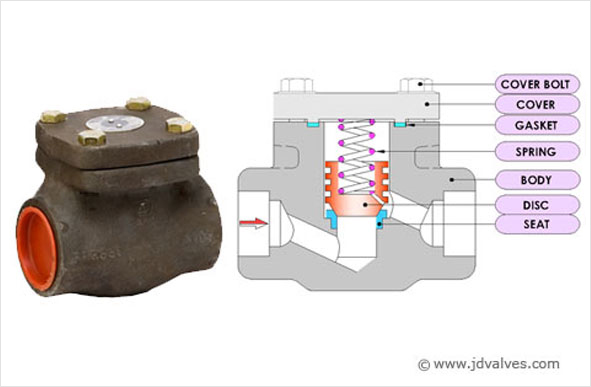

Forged Steel Lift Check ValveForged Steel Lift Check Valve (Non Return Valve)
Bolted Cover Type
Design Standard: BS 5352
Pressure Rating: 800# / 1500#
End Connection : Screwed / Socket Weld / Butt Weld End

Salient Features :

  • Body & Cover made from high quality casting with liberal sections. The castings are precision machined for high performance.
  • Body Seat Ring & Disc machined to close Tolerances providing smooth action and accurate seating.
  • Seat Ring Screwed in to the body are replaceable type. Seal welded type Seat Ring & Integral Seat cab also be offered on special request.
  • Stellited Seat Ring & Disc also be offered on special request.
  • In built wear life for long duration in service.

Material of Construction:

Cast Iron : IS 210 Gr FG 200
Cast Carbon Steel : ASTM A 216 Gr WCB
Cast Stainless Steel : ASTM A 351 Gr CF 8/CF 8M
Forged Carbon Steel : ASTM A 105
Forged Stainless Steel : ASTM A 182 Gr F304 / F316
Design Type : Swing Type Disc / Piston Lift Type Disc
End Connection : Screwed AS PER BSP/BSPT/NPT
Socketweld : AS PER ANSI B 16.11
Flanged : AS PER ANSI B 16.5
Pressure Rating : ASA 125#, 150#, 300#, 600#, 800#, PN 16 & PN 40
Engineering Option : Gear Operated, Electrical Actuated,
Size Range : 15mm to 300 mm

Design & Testing International Standard:

Valve Design : BS 5351 / ANSI B 16.34 / API 6D
Pressure Testing : BS 6755-I
Face To Face : ANSI B 16.10
Flange Drilling : ANSI B 16.5 / BS 10 Table / DIN / IS 6392
Butt Weld End : ANSI B 16.25
Socket Weld End : ANSI B 16.11
Screwed End : ANSI B 1.20.1(BSP/NPT)

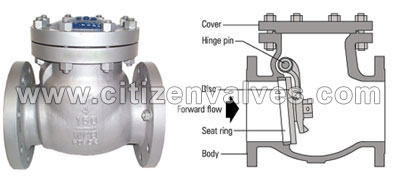

Types of Check Valves: Swing Check Valves

Types of Check ValvesSwing check valves feature a simple design complete with a disc attached to a hinge at the top. As fluid passes through, the valve remains open. When a reverse flow occurs, the changes in motion as well as gravity help to bring down the disc, effectively closing the valve.

These types of check valves are commonly used for firefighting and flood prevention in sewage systems. They’re also designed to work with materials such as gas, liquids, and other types of media.

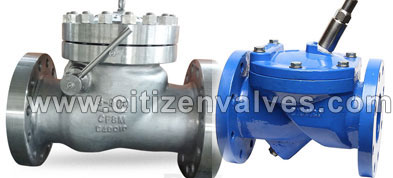

Types of Check Valves: Stop-Check Valves

Stop-check valves can be used for many applications. They’re designed to start, stop, and regulate the flow of materials, and they help to prevent backflow.

If pressure in the system is too low, these valves will automatically close to prevent reverse flow. As a result, damage usually caused by backflow is prevented.

stop-check-valveThese types of check valves also work with an external mechanism or an override control. With these, you can set the valve to close regardless of flow direction or pressure to ensure safety and efficient operations.

Generally, stop-check valves are used in power plants and boiler systems. They’re also beneficial for petroleum production and refining, hydrocarbon processing, and high-pressure safety services.

Types of Check Valves: Ball Check Valves

Unlike other valves, ball check valves use a spherical ball inside their bodies to help control the flow direction in pipes and systems. This ball rotates freely when fluid passes through the system, which causes a wiping motion and even wear between the ball and seat. According to Valve Magazine, this unique action makes ball check valves ideal for systems working with viscous materials.

If pressure decreases or reverse flow is detected, the ball will move toward the seat. This creates a seal and helps to maintain the appropriate direction of fluid flow.

Ball check valves are one of the most common valves available. Industrial systems as well as common household items use them. In fact, The Valve Pipeline states that ball check valves can be found in liquid or gel mini-pump dispenser spigots, spray devices, and manual air pumps.

On top of that, ball check valves are used for metering pumps and chromatography pumps as well.

Types of Check Valves: Silent Check Valves

Silent check valves are incredibly useful for water pipelines and systems. These valves are engineered to control and protect against pressure surges that can occur in water lines. They also work to prevent water hammer and reverse flow.

Silent check valves are constructed with a spring-assisted disc. When fluid pressure in the valve is higher than the cracking pressure, or the pressure needed open or close the valve, the spring lowers the disc to prevent reverse flow.

The valve is also manufactured to include a guide to keep the disc moving in a vertical. This allows it to reseat properly

SILENT CHECK VALVES

silent check valve

These unique CPV valves control hazardous pressure surges and water hammer far more effectively than traditional swing check valves.  A specially engineered stainless steel helical spring initiates instant closing at zero flow velocity.  Since swing check valves do not close until reverse flow begins, pressure surges are never allowed to build.   CPV Silent Check Valves are available with precision machined metal-to-metal seats for general service or soft seats for bubble tight sealing to 250°F (121°C).


Silent Check Valves are available in a wide variety of styles and materials, in sizes from ½” NPT to 24″ flanged and pressure ratings from 125 to 2500 psi.

CPV Silent Check Valves are ideal for applications like heating systems and condensate return lines with pressures to 300 psi.  They come with a soft seated closure disc as standard to 250°F (121°C).  A stainless steel disc can be substituted if anticipated temperatures are up to 350°F (177°C).  Other available options include the use of bronze for the body, union nut and tail piece; a stainless steel guide, retaining ring and spring (Catalog 36), steel body and stainless steel disc (Catalog 34) or all stainless steel, type 18-8 (Catalog 37)  Sizes are from ½” to 2″ NPT.

Citizen Metals Forged Steel Check Valves are manufactured as per BS-5352 Standard and Tested to BS-5146 Standard. Citizen Metals designed piston type lift check valve incorporating self-cushioning effect.

Body Guided piston assuring accurate return to seat ring to achieve leak tightness.

Citizen Metals Forged Steel Lift Check valves are available under any Third party inspection.

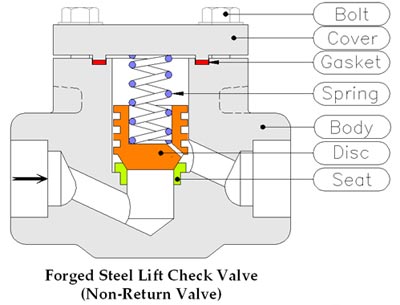

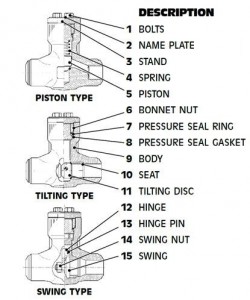

Forged Steel Lift Check Non Return Valve Drawing Dimension Diagram Forged Steel Check Valve Manufacturer Exporter in India

Forged Carbon Steel Check Valve
Socket Weld End Connection
Size: ¾” (DN 20)

Design & Testing International Standard :

Valve Design

BS 5352

Pressure Testing

BS 5146

Face To Face

ANSI B 16.10

Butt Weld End (Welded Neck)

ANSI B 16.25

Socket Weld End

ANSI B 16.11

Screwed End

ANSI B 1.20.1(BSP/NPT)

Salient Features :

A Compact But Extremely Sturdy Design for High Pressure & Temperature Service

Bolted Cover Design

Piston Type Body Guide Disc

Assure Perfect Alignment of Disc & Seat Ring

Material of Construction :

Body & Cover Disc & Seat

ASTM A 105 (Forged Carbon Steel)

AISI 410 (S.S. 410 – 13% Cr. Steel)

ASTM A 182 F 304 / 304L (Forged Stainless Steel 304 / 304L)

AISI 304 (S.S. 304)

ASTM A 182 F 316 / 316L (Forged Stainless Steel 316 / 316L) AISI 316 (S.S. 316)

ASTM A 182 F 11 / F 22 (Forged Alloy Steel)

AISI 304L (S.S. 304L)

  AISI 316L (S.S. 316L)
  Stellited Hard Face on Seat & Disc

Options :

Other Material of Construction

Flanged End, Flange Welded to Body, Rating 150# / 300# / 600#

Butt Weld (Welded Neck) / Socket Weld / Screwed (BSP/NPT) Connection

Seat & Disc Stellited Hard Face

Special Trims on Request

Applications :

Power Plants & Process Industries

Fertilizers Plants

Sugar Industries & Distillery Plants

Water, Steam, Gas, Oil & other Non-aggressive media

Other application on request

Please specify below details at the time of enquiries/orders:

Types of Valve

Flow Medium (Service)

Pressure Rating Class

Design Pressure

Valve Size

Operating (Working) Pressure

Type of End Connection

Design Temperature

Material of Construction

Operating (Working) Temperature

Trims Materials



Wide Range of Industrial Check Valve

  • Cast Iron Check Valve (Non Return Valve)
  • Cast Carbon Steel Check Valve (Non Return Valve)
  • Cast Stainless Steel Check Valve (Non Return Valve)
  • Forged Steel Check Valve (Non Return Valve)
  • Alloy Steel Check Valve (Non Return Valve)
  • Alloy 20 Check Valve (Non Return Valve)
  • High Pressure Check Valve (Non Return Valve)
  • Swing Check Valve (Non Return Valve)
  • Wafer Type Check Valve (Non Return Valve)
  • Disc Check Valve (Non Return Valve)
  • Lift Type Check Valve (Non Return Valve)
  • Single Disc Check Valve (Non Return Valve)
  • Rubber lined Check Valve (Non Return Valve)
  • P.T.F.E. lined Check Valve (Non Return Valve)
  • Non-Slam Type Check Valve (Non Return Valve)
  • Zero Leakage Check Valve (Non Return Valve)

Check Valves Materials

Stainless Steel Check Valve
Stainless Steel Check Valve Suppliers Dealers Distributors in India

Check Valve, Stainless Steel Forged Steel 304 Valve, Stainless Steel F321 Check Valve, F347 Check Valve, SS High Pressure Check Valve, Class 150, 300, 600, 900, 1/2 inch stainless steel Check Valve, 1/2" stainless steel Check Valve, 3/4 Size Check Valve, 4 inch stainless steel Check Valve, Industrial Check Valve, Stainless Steel 316 Check Valve Suppliers in India... Read more

Alloy Steel Check Valve
Alloy Steel Check Valve Suppliers Dealers Distributors in India

Alloy Steel Check Valves, Chrome Moly Alloy A217 / SA217 Cast Valves, WC9 Alloy Steel Globe Valve, 4 Inch, 2500#, A350 LF3, A352 LC3, A182 F5A/F5, A217 C5, A182 F9, A217 C12, A182 F11, A217 WC6, A182 F22, A217 WC9, A182 F91, A217 C12A, 10 Inch, RF, WC9 Gate Valve, PSB, 12 Inch, 2500 LB, Alloy Steel Valves Dealers & Distributors in India.. Read more

Carbon Steel Check Valve
Carbon Steel Check Valve Suppliers Dealers Distributors in India

Check Valves, Carbon Steel Check Valves, Carbon Steel Valve Material, ASTM A350 LF2 Check Valves, Carbon Steel ASTM A106 Check Valves, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34 ASTM A105N Check Valves, Cast Carbon Steel Check Valves, API 600 Cast Steel Check Valves, Forged Carbon Steel Check Valves Exporters & Suppliers In India.. Read more

Hastelloy Check Valve
Hastelloy Check Valve Suppliers Dealers Distributors in India

Hastelloy Check Valve, Hastelloy C276 Check Valve, Hastelloy C22 Check Valve, Hastelloy B2 Check Valve, Hastelloy C276/C22 Valves, ASTM B 435 Hastelloy X Check Valve, Hastelloy B2 Check Valve, ASME B16.34 Check Valve, UNS N10665 Hastelloy B2 Check Valve, UNS N10276 Hastelloy C276/C22 Manufacturer / Suppliers in Mumbai India. Read more

Alloy 20 Check Valve
Alloy 20 Check Valve Suppliers Dealers Distributors in India

Wholesale Various High Quality Industrial Check Valve Products from Citizen Metals, Largest Suppliers of Alloy 20 Check Valve, Alloy 20 Check Valve Dealers, Alloy 20 Check Valve, UNS N08020 Alloy 20 Check Valve, Alloy 20 Check Valve Suppliers, Alloy 20 Check Valve Manufacturer, Alloy 20 Check Valve Manufacturers in India. Read more

Nickel 200/201 Check Valve
Nickel 200/201 Check Valve Suppliers Dealers Distributors in India

We supply broad range of Nickel 200/201 Check Valve, Leading Suppliers of Nickel 200/201 Valves, Ni-200 Check Valve, Ni-201 Check Valve, Uns N02200 Check Valve, Uns N02201 Check Valve, Nickel 200/201 Check Valve Dealers, Check Valve Suppliers, Nickel 200/201 Check Valve Manufacturer, Nickel 200/201 Check Valve Manufacturers in India. Read more

Monel® Check Valve
Monel 400 Check Valves Suppliers Dealers Distributors in India

we supply Monel 400 Valves with high quality and best affordable rate., Monel 400 Check Valves, Monel DIN 2.4360, 2.4375 Check Valves, Monel UNS N04400 Check Valves, Monel UNS N05500 Check Valves, Monel Check Valves, Monel K500 Check Valves, Monel 400 Check Valves Distributors in India... Read more

Duplex Steel Check Valve
Duplex Steel Check Valve Suppliers Dealers Distributors in India

We specialize in the oil & gas industries and offer specialty Duplex Steel Check Valve, UNS S31803 Check Valve Suppliers in India, DIN 1.4410 Super Duplex Steel Check Valve, ASME B 16.10 UNS S32760 Check Valve, ASTM A351 Duplex Steel UNS S31803, ASME SA494 Duplex Steel UNS S31803, Duplex Steel UNS S31803 Class 900 Check Valve Exporters in India. Read more

254 Smo Check Valve
254 Smo Check Valve Suppliers Dealers Distributors in India

Check Valve, 254 Smo Check Valve, Cryogenic 254 SMO gate valve, ASME B16.34 SS 254 SMO Check Valve, Stainless Steel 254 SMO Check Valve, ASTM A351 SS SMO 254 Check Valve, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34, 254 SMO Industrial Valves, Stainless Steel 254SMO Check Valves Suppliers in India.. Read more

904l Stainless Steel Check Valve
904l Stainless Steel Industrial Check Valve Suppliers Dealers Distributors in India

Check Valve, 904l Stainless Steel Check Valve, 904l Stainless Steel Industrial Check Valve, SS 904L ASTM A351 Check Valve, ASME B 16.10 Check Valve, ASME B 16.5, ASME B 16.25, ASME B 16.34, UNS N08904, 1.4539, BS 904S13, JIS SUS 890L Check Valve , 904l Stainless Steel Check Valves, High Pressure 904l Stainless Steel Check Valve Exporters in India.. Read more

Inconel Check Valve
Inconel Check Valve Suppliers Dealers Distributors in India

Check Valves, Inconel Check Valve, Inconel 600 Check Valve, INCONEL WERKSTOFF NR. 2.4816 Check Valves, Inconel 600 N06600 Check Valves, Inconel 2.4816 Check Valves, UNS N06600 Check Valves, Inconel 600 Check Valves, API 600/ BS1414, ALLOY 600 Check Valves, ASME B 16.5 Check Valves Dealers in India.. Read more

Titanium Check Valve
Titanium Check Valve Suppliers Dealers Distributors in India

We are the one of the top most manufacturers of different types of Industrial Check Valve, We have a large inventory of Check Valve in a variety of options., Largest Suppliers of Titanium Gr2(B367 Gr C2) Check Valve, Titanium Gr3(B367 Gr C3) Check Valve, Titanium TA1, TA2, Titanium Gr.5, Gr6 Check Valve,Gr7 ,Gr12, Titanium TC4,TA9,TA10 Dealers in India.. Read more

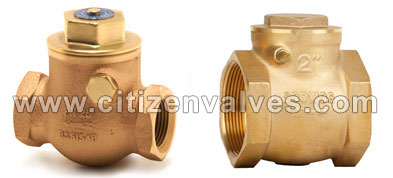

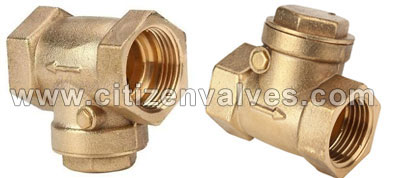

Brass Check Valve
Brass Check Valve Suppliers Dealers Distributors in India

Brass Check Valve, brass Check Valve price list in India, brass Check Valve 1/2, 1 inch brass Check Valve, brass Check Valve 3/4, brass Check Valve price list india, 3 inch brass check valve, brass Check Valve price list, 1/2 inch Check Valve, 4 brass Check Valve, 3/4 brass Check Valve, 4 inch brass Check Valve, 2 inch brass Check Valve Read more

Copper Check Valve
Copper Check Valve Suppliers Dealers Distributors in India

Experience Of 50 Years In Copper Knife Gate Valve, We have a large inventory of Copper Check Valve, Copper 90/10 Check Valve, Copper 70/30 Check Valve, Copper Cu-Ni 70/30 Check Valve, Copper 90/10 Check Valve Dealers, Copper 70/30 Check Valve Suppliers, Copper Cu-Ni 70/30 Check Valve Manufacturer, Copper Cu-Ni 90/10 Check Valve Manufacturers in India. Read more

Check Valves Others

Project Reference

PROJECT

YEAR

Project : Water treatment plant at Malawi, AFRICA.

1984

Project : Ambatale Raw Water Intake Pump Station, SRILANKA.

1985

Project :  Synthetic Fibre Plant, INDONESIA.

1991

Project  :     Water  Treatment  Plant  for  Phoenix-II  Paper plant, THAILAND.

1992

Petron Civil Engineering Ltd., Bombay

1992

Project : Water Supply Project, MAURITIUS.

Paharpur Cooling Towers Ltd., Calcutta Project :  National Petrochemical Co., IRAN

1993

Ion Exchange India Ltd., Project: In INDONESIA

1993

GEPL Holdings Pte. Ltd., SINGAPORE. Project : In PAKISTAN

1997

UEM Inc., USA

1998

Project: Shah Alam Sewage treatment plant, MALAYSIA

Environmental Engineering Services (Asia)Pte. Ltd., Singapore.

1999

Project : Taman Plangi Indah Phase-1 Sewage Treatment Plant, MALAYSIA.

Gulfar Engineering & Contracting LLC, OMAN.
Project: Salalah Sewage Pumping plant , Muscat, OMAN. CONULTANTS : Parsons Engineering Science, Inc

2000

Risterm Negoce SA, Belgium.
Project : Sappi Paper Mills , BELGIUM.

2004

Saudi Berkefeld Filter Co. Ltd., Riyadh, Saudi Arabia Project : Al-Qurayat SWT and Rafha  wastewater  treatment Plant, SAUDI ARABIA
CONSULTANTS : Tawafiq Engineering  Consultant  office and Al-Tawfeek Office, SAUDI ARABIA  (Through   Jash Schutte Industrie service  GmbH,Germany
)

2004

Metax Engineering Corporation, Singapore
Project : Kim Chuan STW – Contract 2, SINGAPORE

2004

A. K. Almoayed Group WLL, Baharain
Project : #49905, Pumping Station E4, Habib Awachi, BAHRAIN.
CONSULTANTS: Watson Khonji Consulting Engineers, Bahrain.

2004

Satria Damai SDN BHD, Malaysia Project : SMART, MALAYSIA.
CONSULTANTS : MM Consultants SDN. BHD.

2004

Risterm Negoce, Belgium
Project : Sappi Paper mills , BELGIUM

2004

AVM International Ltd. A/S, Norway Project : Yapisal Erzurum, TURKEY
CONSULTANTS: ER-GE Design Engg. Consultant & Trade Ltd. Co., Istanbul

2005

Stealth valve & Controls Ltd., Canada
Project : Seymour- Capilano Filtration Project, Greater Vancouver water District., CANADA
CONSULTANTS : SSBV Consultants Inc.,

2005

Comfort Rich Enterprises Limited , Hongkong
Project : WSD Tuen  Mun Stage 5 Project, HONGKONG

2005

ROFI UK Ltd./ Syl-Mac International
Project : Erbil-Ifraz water project, IRAQ by Fluor AMEC LLC, Dubai.

2005

ROFI UK Ltd./ Syl-Mac International
Project : Nasiriya Water Project, IRAQ by Fluor AMEC LLC, Dubai

2005

ROFI UK Ltd./ Syl-Mac International
Project : Balad Rooz Water Project, IRAQ by Fluor AMEC LLC, Dubai

2005

Degremont.,
Project : Bangkhen Water Treatment Plant at Bangkok, Contract No. G-BK-7, THAILAND
CONSULTANTS: Nihon Suideo Consultants Co. Ltd. In Associated with Team Consulting Engineering and Management Co. Ltd., Thailand.

2005

Stealth valve & Controls Ltd., Canada
Project : Seymour- Capilano Filtration Project, Greater Vancouver water District., CANADA
CONSULTANTS : SSBV Consultants Inc.,

2005

Metax Engineering Corporation Limited, Singapore. Project – Tuas pumping station of PUB, SINGAPORE

2006

UEM India Limited, N. Delhi, Project : Pig farm project, MEXICO

2006

AVM International Limited, Norway Project : Water treatment plant, GHANA

2006

Spaans Babcock Limited, England, Project :- Liandysul WWTW

2006

Comfort Rich Enterprises Limited, Hong Kong, Project : Shatin project, HONGKONG

2006

ROFI UK Ltd. UK for Fluor AMEC LLC , Project :  Nasiriya Water Project, IRAQ.

2006

Kruger A/S Denmark.
Project : Oset Water Treatment Plant, Oslo, NORWAY

2006

Perrier  Sorem,  France, Project: - Paul Bert, FRANCE.

2007

Ebara Corporation Japan,
Project: - Astana City project, KAZAKHSTAN. CONSULTANTS : NJS Consultants Co. Ltd.

2007

Environmental engineering Services, Oman,
Project: - Nizwa Sewerage Treatment Plant, OMAN. CONSULTANTS : National Engineering Services Pakistan & Partners.

2007

The National Co. For Mech. & Elect. Works Ltd., Kuwait Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2007

Aqua Tech International, Oman, / Contractors Technical Services Co. LLC, Oman.
Project: Mukhaizana MVC Project, OMAN

2007

Shutte GmbH, Germany CONSULTANTS : UHDE, Germany

2007

Paramount Limited, Baroda
Project: Petrotrin Refinery Project, TRINIDAD & TOBAGO.
CONSULTANTS : Bechtel.



2007

Syl Mac International, Mumbai.
Project : Cheung Sha catchwater, HONG KONG.

2007

A.   K. Almoayed Group WLL, Baharain,
Project : A4 pumping station, BAHRAIN by Habib Awachi
CONSULTANTS: Watson Khonji Consulting Engineers, BAHRAIN

2007

A.   K. Almoayed Group WLL, Baharain,
Project : SAAR Sewarage Scheme BAHRAIN, by Habib Awachi,
CONSULTANTS: Watson Khonji Consulting Engineers, BAHRAIN

2007

Comfort Rich Enterprises Limited, Hong Kong, Project : Tai Po project , HONGKONG

2007

Perrier Sorem, France,
Project :- Cyco FOS – 480 MW Power project, FRANCE by Alstom, France.

2007

Comfort Rich, Hong Kong.
Project: - Kwun Tong Pumping Station, HONG KONG

2007

Spanns Babcock, U.K.
Project: Thames Water Supply Project. CONSULTANTS :

2007

Comfort Rich Supplies Co., Ltd, Hong Kong.
Project : Shatin STW Replacement project, HONG KONG

2007

Syl Mac International, Mumbai. Project : HONG KONG

2007

Project : Cheung Sha catchwater, HONG KONG.

2007

Ryoden Engineering Co., Ltd., Hong Kong.
Project : Nam Sang Wai SPS, Sha Po SPS, Kam Tin SPS, HONG KONG.
CONSULTANTS :

2008

Ryoden Engineering Co., Ltd., Hong Kong.
Project : Nam Sang Wai SPS, Sha Po SPS, Kam Tin SPS, HONG KONG
CONSULTANTS :

2008

Comfort Rich Supplies Co., Ltd, Hong Kong.
Project : Sheung Wan Storm water PS. HONG KONG.

2008

WB Engineering & Consultancy Pte. Ltd., China Project : Punggol Serangoon PS, Intake Structure & Ancillary Works, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2008

Comfort Rich Supplies Co., Ltd, Hong Kong. Project : Shatin Storm water PS. HONG KONG.

2008

WB Engineering & Consultancy Pte. Ltd., CHINA. Project : ULU Pandan Tidal gate, SINGAPORE. CONSULTANTS :

2008

Star Steel International LLC, Dubai Project : Rebar Mill, Dubai.
Consultant : MECON

2008

Project : Astana Water Supply and Sewerage Project KAZAKHSTAN.
CONSULTANTS : NJS Consultants Co. Ltd.

2008



WB Engineering & Consultancy Pte. Ltd., China Project : Punggol Serangoon PS, Intake Structure & Ancillary Works, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2008

WB Engineering & Consultancy Pte. Ltd., China Project : SINGAPORE.

2008

Dutco Tennant LLC, Dubai
Project : NASS Contracting Co. WLL, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2008

Dutco Tennant LLC, Dubai
Project : NASS Contracting Co. WLL, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2008

Ebara Corporation Japan,
Project: - Astana City project, KAZAKHSTAN. CONSULTANTS : NJS Consultants Co. Ltd.

2008

A.K. Almoayed Group WLL, Baharain, Project : A1 Pumping Station, BAHRAIN Al Hassanain mechanical Co.,
Consultant : Watson Khonji .

2008

Degremont Limited, Gurgaon, India
Project: - Nhon Trach Water Supply Project, VIATNAM CONSULTANTS : Nippon Koei Co.Ltd., JAPAN and Nihon Suido Consultant Co., Ltd., VIATNAM

2008

Global Engineering Systems FZ, Sharjah, UAE Project: -
CONSULTANTS :

2009

Comfort Rich Supplies Co., Ltd, Hong Kong. Project: Ma On Shan SPS, HONG KONG CONSULTANTS :

2009

Kharafi National KSC (Closed), Kuwait
Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2009

Kharafi National KSC (Closed), Kuwait
Project: MPW – Construction of A4 Pumping Station, KUWAIT, Contract SE/69
CONSULTANTS: Gulf Consultant, Parsons Engg. Co. Kuwait

2009

Spanns Babcock Ltd., U.K.
Project: Howdon WWTW Project UK CONSULTANTS :

2009

Spanns Babcock Ltd., U.K..
Project: Thames Water Supply Project UK CONSULTANTS :

2009

Astra Marketing Limited, Bangkok, Thailand.
Project: MWA’s Raw Water Pumping Station No. 1 at Bang Khen WTP, Bangkok, THAILAND.
CONSULTANTS :

2009

Gulf Petrochemical Services & Trdg. LLC, Oman
Project: C-170, Rushtaq Sewage Pumping Station, OMAN CONSULTANTS :

2009

Lutz-Jesco Middle East FZE, Sharjah, U. A. E. Project:
CONSULTANTS :

2009

PLS France for Degremont Ltd., France.
Project: Al Dur Independent Water & Power Project, BAHRAIN
CONSULTANTS :

2009

PVT Engineering SDN BHD, Malaysia Project: Kepala Batas, MALAYSIA CONSULTANTS : RPM Engineers SDN BHD

2009

WB Engineering & Consultancy Pte. Ltd., China
Project : Contract 6, Punggol Serangoon Reservior Scheme, SINGAPORE.
CONSULTANTS : CPG Consultants Pte. Ltd, Singapore.

2009

Dutco Tennant LLC, Dubai
Project : Shk Khalifa Highway Project, BAHRAIN CONSULTANTS : Watson Khonji Consulting Engineers, BAHRAIN

2009



Check Valve Price

Class 900-2500 forged steel pressure seal swing check valve
US $30-2000 / Piece
Stainless Steel/WCB/ductile iron Flange End swing check Valve price
US $10-1000 / Set
API A216 WCB BC Flanged Swing Check Valve
US $250-5000 / Set
Flanged Ends A216 WCB Swing Check Valve
US $20-200000 / Set
tilting disc butterfly type check valve
US $15-600 / Set
DN15 to DN100 horizontal type brass tilting disc check valve
US $0.8-20 / Piece
DN150 WCB Carbon Steel Wafer Tilting Disc Check Valve
US $30-300 / Piece
Needle type brass check sanitary valve
US $1-10 / Piece
natural gas 8 inch nozzle check valve
US $9-99 / Piece
API Standard tilting disc Check Valve
US $50-10000 / Piece
Din swing forged steel spring return piston check valve
US $0.01-100 / Piece
Forge steel piston type check valve
US $25-500 / Piece
stainless steel flow natural gas piston check valve
US $1-1000 / Piece
Non Slam Design Dual Plate Wafer Lift Check Valve
US $100-150 / Set
API 6D stainless steel stop valve non slam swing angle stop check valve
US $30-5000 / Piece
DIN 3202 Flange Type Non Slam Check Valve with Hydraulic Damper
US $50-99 / Set
API 6D double flange axial flow nozzle check valve
US $30-5000 / Piece



For More Price Please Contact Us :  exports@citizenltd.com

Tag : Non-return Check Valve, Industrial Non-return Check Valve, Non-return Check Valves Dealers, Non-return Check Valves Distributors, Non-return Check Valves Exporters, Non-return Check Valves Suppliers, Non-return Check Valve Manufacturers in india, Non-return Check Valves Price in India, Check Valve, Industrial Check Valve, Check Valves Dealers, Check Valves Distributors, Check Valves Exporters, Check Valves Suppliers, Check Valve Manufacturers in india, Check Valves Price in India, Swinging Check Valve, Industrial Swinging Check Valve, Swinging Check Valves Dealers, Swinging Check Valves Distributors, Swinging Check Valves Exporters, Swinging Check Valves Suppliers, Swinging Check Valve Manufacturers in india, Swinging Check Valves Price in India, Tilting Disc Check Valve, Industrial Tilting Disc Check Valve, Tilting Disc Check Valves Dealers, Tilting Disc Check Valves Distributors, Tilting Disc Check Valves Exporters, Tilting Disc Check Valves Suppliers, Tilting Disc Check Valve Manufacturers in india, Tilting Disc Check Valves Price in India, Piston Check Valve, Industrial Piston Check Valve, Piston Check Valves Dealers, Piston Check Valves Distributors, Piston Check Valves Exporters, Piston Check Valves Suppliers, Piston Check Valve Manufacturers in india, Piston Check Valves Price in India, Non slam Check Valve, Industrial Non slam Check Valve, Non slam Check Valves Dealers, Non slam Check Valves Distributors, Non slam Check Valves Exporters, Non slam Check Valves Suppliers, Non slam Check Valve Manufacturers in india, Non slam Check Valves Price in India, Needle Check Valve, Industrial Needle Check Valve, Needle Check Valves Dealers, Needle Check Valves Distributors, Needle Check Valves Exporters, Needle Check Valves Suppliers, Needle Check Valve Manufacturers in india, Needle Check Valves Price in India, Nozzle Check Valve, Industrial Nozzle Check Valve, Nozzle Check Valves Dealers, Nozzle Check Valves Distributors, Nozzle Check Valves Exporters, Nozzle Check Valves Suppliers, Nozzle Check Valve Manufacturers in india, Nozzle Check Valves Price in India

Check Valves Ready Stock Available

Swinging Check Valve
Tilting Disc Check Valve
Piston Check Valve
Non slam Check Valve
Needle Check Valve
Nozzle Check Valve
gf wafer check valve
Swing Check Valve
Duel Plate Check Valve
Wafer Type Check Valve (Plate Type)
Disc Check Valve
Flap Type Check Valve
Forged Steel Lift Check Valve
Cast Steel Lift Check Valve
Stainless Steel Check Valve
UNS S30400 Check Valve
UNS S30403 Check Valve
UNS S30409 Check Valve
Stainless Steel 3 Piece Check Valve
swing check valve class 900
check valve 10000 psi
check valve 30000 psi
check valve 60000 psi
check valve 15000 psi
check valves for water
check valves price list
check valve 5 psi
check valve 30 inch
check valve 300#
check valve 300#
check valve 600#
check valve 900#
check valve class 900
check valve 1 inch
check valve 2 inch
check valve 1/2 inch
check valve 1/4 inch
check valve 4 inch
check valve 15mm
wafer check valve class 900



Tags : Non-return Check Valve, Industrial Non-return Check Valve, Non-return Check Valves Dealers, Non-return Check Valves Distributors, Non-return Check Valves Exporters, Non-return Check Valves Suppliers, Non-return Check Valve Manufacturers in india, Non-return Check Valves Price in India, Check Valve, Industrial Check Valve, Check Valves Dealers, Check Valves Distributors, Check Valves Exporters, Check Valves Suppliers, Check Valve Manufacturers in india, Check Valves Price in India, Swinging Check Valve, Industrial Swinging Check Valve, Swinging Check Valves Dealers, Swinging Check Valves Distributors, Swinging Check Valves Exporters, Swinging Check Valves Suppliers, Swinging Check Valve Manufacturers in india, Swinging Check Valves Price in India, Tilting Disc Check Valve, Industrial Tilting Disc Check Valve, Tilting Disc Check Valves Dealers, Tilting Disc Check Valves Distributors, Tilting Disc Check Valves Exporters, Tilting Disc Check Valves Suppliers, Tilting Disc Check Valve Manufacturers in india, Tilting Disc Check Valves Price in India, Piston Check Valve, Industrial Piston Check Valve, Piston Check Valves Dealers, Piston Check Valves Distributors, Piston Check Valves Exporters, Piston Check Valves Suppliers, Piston Check Valve Manufacturers in india, Piston Check Valves Price in India, Non slam Check Valve, Industrial Non slam Check Valve, Non slam Check Valves Dealers, Non slam Check Valves Distributors, Non slam Check Valves Exporters, Non slam Check Valves Suppliers, Non slam Check Valve Manufacturers in india, Non slam Check Valves Price in India, Needle Check Valve, Industrial Needle Check Valve, Needle Check Valves Dealers, Needle Check Valves Distributors, Needle Check Valves Exporters, Needle Check Valves Suppliers, Needle Check Valve Manufacturers in india, Needle Check Valves Price in India, Nozzle Check Valve, Industrial Nozzle Check Valve, Nozzle Check Valves Dealers, Nozzle Check Valves Distributors, Nozzle Check Valves Exporters, Nozzle Check Valves Suppliers, Nozzle Check Valve Manufacturers in india, Nozzle Check Valves Price in India



Enquiry Form

Contact Us

CITIZEN METALS PVT. LTD (EXPORT DIVISION)

Contact Person : MR.RAJENDRA D.JAIN (EXPORT DIRECTOR)
 Address : SHOP NO G/3; HARARWALA BUILDING COMPOUND; ARDESHIRDADY STREET; S.V.P ROAD; MUMBAI-400 004, INDIA
 Phone : +91-22-61905600 (100 Lines)
 Fax : +91-22-61905666
 Email :

 exports@citizenltd.com

 Skype Id : citizenmetal
 Whats App : +91-9820356311

CITIZEN METALS OVERSEAS OFFICES

india@citizenvalves.com
Australia@citizenvalves.com
Egypt@citizenvalves.com
SaudiArabia@citizenvalves.com
Qatar@citizenvalves.com
uae@citizenvalves.com
Turkey@citizenvalves.com
Indonesia@citizenvalves.com
Malaysia@citizenvalves.com
Singapore@citizenvalves.com
Canada@citizenvalves.com
USA@citizenvalves.com
Mexico@citizenvalves.com


OUR SUMMARY:
Review Date
Reviewed Product
NRV Check Valve
Author Rating
5NRV Check ValveNRV Check ValveNRV Check ValveNRV Check ValveNRV Check Valve
